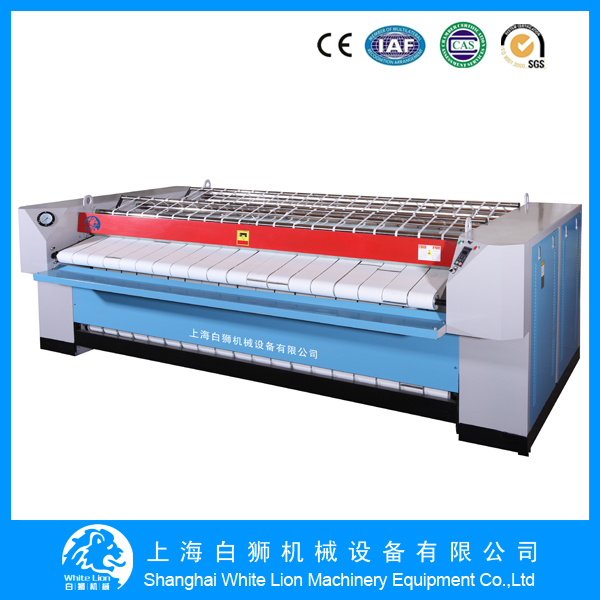

YD/YZ/ Series Industrial Ironing Machine (Steam/Eletric heating term)
1. Diameter of rollers is 800mm, high heat efficiency, high speed ironing.
2. Excellent stainless steel rollers: Good abrasive resistance, more safe and durable.
3. Optional heating terms: Electrical (Quartz infrared heating tube)
Steam (stainless steel rollers).
4. Frequency control system: Ironing speed can be adjusted according to textile thickness and steam supply. Rollers can be added from 1 to 6.
5. Differential flexible conveyor system: Superior ironing quality and high efficiency.
6. Three- phase power system provides overload protection, voltage and short circuit protection. More safe with emergency switch
7. Use advanced leak-proof, anti-corrosion and emergency braking technology.
8. Popular used for ironing bed sheets, quilt cover, tablecloth, and cotton blanket and so on.
YT Series Gas Ironing Machine(Gas/LPG heating term)
1. Frequency control system: Ironing speed can be adjusted according to textile thickness and steam supply. Rollers can be added from 1 to 6.
2. Differential flexible conveyor system: Superior ironing quality and high efficiency.
3. Use high quality burner to heat rollers.
4. Rollers with conduction oil inside make surface temperature higher.
Professional on Laundry Machines, Washer extractor, industrial washing machine, Dryer, Ironer, Folder, water extractoretc.
|
Model |
YDI-2800 |
YDI-3000 |
YZII-3000 |
YDII-3000 |
YZIII-3000 |
YZIII-3300 |
YZIV-3300 |
YZV_3300 |
|
Max ironing width_mm |
2800 |
3000 |
3000 |
3000 |
3000 |
3300 |
3300 |
3300 |
|
Drum dimension_mm |
Φ800*2800 |
Φ800*3000 |
Φ800*3000 |
Φ800*3000 |
Φ800*3000 |
Φ800*3300 |
Φ800*3300 |
Φ800*3300 |
|
Roller quantity |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
5 |
|
steam pressure_Mpa |
/ |
/ |
0.4-0.6 |
/ |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
heating power_Kw |
36(Electrical) |
36(Electrical) |
/ |
72(Electrical) |
/ |
/ |
/ |
/ |
|
ironing speed_m/min |
0-8 |
0-8 |
0-17 |
0-17 |
0-26 |
0-26 |
0-26 |
0-26 |
|
motor power_Kw |
0.75 |
0.75 |
1.5 |
1.5 |
2.2 |
2.2 |
3 |
4 |
|
Voltage_V |
220/240/380/415/440 |
|
Overall dimension_mm(L*W*H) |
3834*11500*1400 |
4040*1500*1400 |
4040*2500*1400 |
4040*2500*1400 |
4040*3500*1400 |
4340*3500*1400 |
4340*4500*1400 |
4340*5500*1400 |
|
Net Weight---Kg |
1400 |
1800 |
3100 |
3100 |
4000 |
4500 |
5500 |
6200 |
YT Series (Gas/LPG heating term)
|
Model |
YTI-2800 |
YTII-2800 |
YTII-3000 |
YTIII-3000 |
YZIV-3000 |
YZIV-3300 |
|
Max ironing width_mm |
2800 |
2800 |
3000 |
3000 |
3000 |
3300 |
|
Drum dimension_mm |
Φ800*2800 |
Φ800*2800 |
Φ800*3000 |
Φ800*3000 |
Φ800*3000 |
Φ800*3300 |
|
Roller quantity |
1 |
2 |
2 |
3 |
4 |
4 |
|
Gas consumption_m³/h |
6/8 |
12/16 |
12/16 |
18/24 |
24/32 |
24/32 |
|
Gas pressure--mpa |
2-2.5/3.8 |
We are manufacturer, concentrating on washing machinery equipment, which is located in Hongmiao industrial park, Fengxian district, Shanghai.
Shanghai white lion machinery equipment Co, . Ltd. Is a professional manufacturer integrating research and development, and marketing of industrial washing equipment. Our R&D department develops unique and glamorous designs to meet different market demands. We have been concentrating on provide inventive and pioneering designs, good quality, competitive price, fast delivery and best service. Welcome OEM and ODM orders.
Main products include: Industrial washing equipment, industrial dehydrator, automatic folder, dryer equipment, flatwork ironer, dry-cleaning machine, ironing equipment and so on.
These products are new in type and low in power consumption. They are widely used in various trades, such as chemical industries, hotels, restaurants, hospitals and kinds of washing factory. These are applied to textile, printing, dyeing, silk, garments and so on.
We strive to provide good quality products, and perform inspections at every step of production from raw materials to finished products. Our production and assembly take place at our own workshop, following the strictest quality control standard. We have got the CE certificate, ISO9001 and maturing marketing in Asia, South America, South Africa and Europe. These lay the foundation of further international market.
We are honoured to serve you.
