Biomass Power Wood Pellet Electric Generator

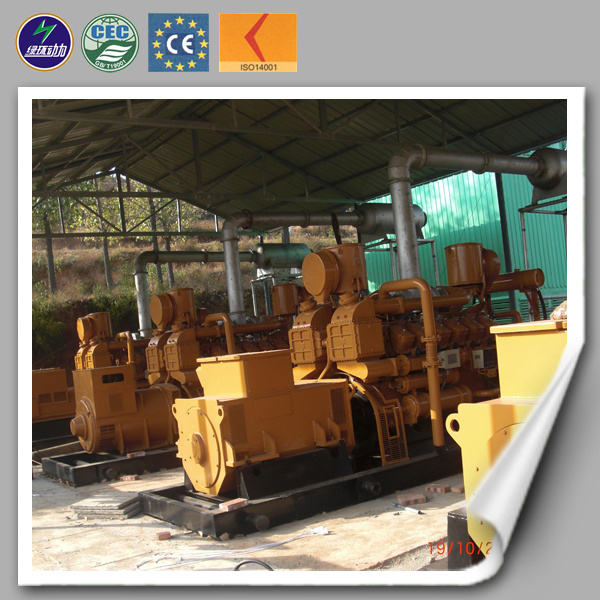

Wood pellet electric generator

Worksite requirements for wood pellet electric generator

The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~45º C;
B) Relative humidity less than 90%(35º C);
C) Site elevation not higher than 2000m;
D) For outdoor installation, simple rain shelter is required.
The engine is high, /low temperature cycle requires the use of softened water. Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc...Its main index requirements are as follows:
Hardness: 0.7~5.3me/L; Chloride ion content: <150mg/L; PH≤ 7~8.5

Fuel gas requirement for wood pellet electric generator

The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
Temperature of natural gas ≤ 40º C;
Pressure of natural gas 3~10kPa, velocity of pressure≤ 1kPa/min;
H2S≤ 200mg/Nm3;
NH3≤ 20mg/Nm3
Tar Content ≤ 20%mg/Nm3
Impurities particle size≤ 5μ M; Impurity content≤ 30mg/Nm3;
Moisture Content of biomass ≤ 40g/Nm3; Heat value more than 4.2MJ/Nm3
If fuel gas contains higher quantity of sulfur and ammonia, it not only corrodes the pole of spark plug seriously, but also increases the acid value, which corrodes internal parts of genset and corrodes the genset with precipitates.


Why you chioce Shandong Lvhuan Power equipment Co., Ltd. Wood pellet electric generator?
1. We are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2. Products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people. Also products achieved CE, ISO9001: 2008, ISO2001: 1400 etc. Certificats. And passed many patents.
4. Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia, Philippine, Indonesia, and with some Africa countries etc.
5. We have many cooperation companies: Like dehydration equipment, desulfurization equipment, gasified equipment, recovery system exhaust heat, CCHP system etc. So can offer you complete project proposal if you like.


Wood pellet electric generator Service After-sale service:
(1)in our company, different people is in charge of different area, we will response periodically and support you technical service free of charge, include equipment debugging, fault eliminating, technical advice, maintenance assistant, etc.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)Insisting on principle of "solving problems first, trying to recover the generator set as soon as possible and then analysis the reason", we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.
