Biomass generator include: Biomass power plants; Biomass power generation; Biomass power plant; Biomass power; Biomass power plants; Biomass Power Plants
Biomass gasifier power plant for power generation, such as rice husk, crop stalk, coconut husk, olive pomace, woodchips, bagasse
Available biomass:
Agriculture and forest residues, such as rice husk, crop stalk, coconut fiber dust, palm shell, pruned fruit tree branch, wood chips twig timber, chips from timber processing factory, and so on.

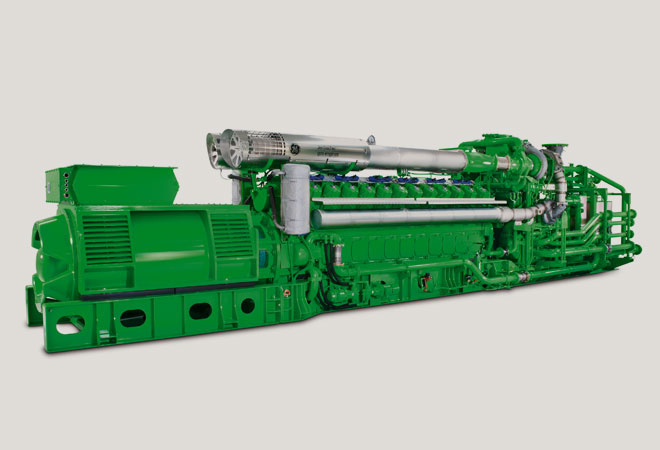

Biomass syngas from Fengyu's fluidized bed biomass gasifier not only can be send to internal combustion engine for electric power generation, but also can be used for household fuel to cooking or heating. It also can be send to boiler or hot-blast furnace to produce steam or hot air for drying, or for turbine to generate power.
INDEX:
MODEL: LHC-1000
Biomass power plant output power: 1000kw
Production volume of biomass gas: 3650Nm3/hr
Gas temperature of the outlet after cleaning and cooling: Under 45 degree celsius
Consumption of biomass fuel: 1.5-1.8 ton/hr(for rice husk)
Gross weight of gasifier: 38.7 ton
Main component and caloricity of biomass gas are different for difference of characteristic of biomass fuel and gasification method. The caloricity of biomass gasification gas is normally 1100-1500kcal/Nm3. (4.6-6.3MJ/Nm3).
Biomass gas component:
CO 17.2%
H2 4.05%
CH4 6.82%
CmHn 1.24%
H2S --------
CO2 15.1%
O2 0.8%
N2 54.7%
Xuzhou Juyou New Energy Technology Co., Ltd. Was founded in November 2001; The company, s business scope is new energy and environmental protection. The company's main business:
1. Design and construct large and medium-sized biogas projects.
2. Develop, manufacture and sell related products needed to build family size biogas system.
3. Develop, manufacture and sell new style small size biogas digesters.
Since its establishment the company has achieved a series of research results in both family size and large size biogas system based on independent innovation.
So far the company has obtained many Chinese patents and applied for a number of PCT and international patents.
In 2005, the company was awarded the technical support entity for the "National Science and Technology Achievements key promotion Program" project-- Puxin Biogas System by Chinese Ministry of Science and Technology.
In 2006, Puxin Biogas plant won the Global Top Ten Investment Scenarios to Apply New Technologies for Renewable Energy Utilization Blue Sky Award initiated by United Nations Industrial Development Organization and Shenzhen International Technology Promotion Center for Sustainable Development.
In 2007, the company was also awarded the High-tech Enterprises of Shenzhen.
In 2007, the company won the Award for Most Potential Innovating Enterprises in The 9th China Venture Capital & Private Equity Forum 2007.
So far the company has successfully completed a number of medium and large size biogas projects in Chinese Dongguan, Beijing, Shenzhen, Shanghai and Huizhou cities. By the end of 2008, PUXIN products for biogas development have been exported to over twenty countries as well as UNDP and SNV.
