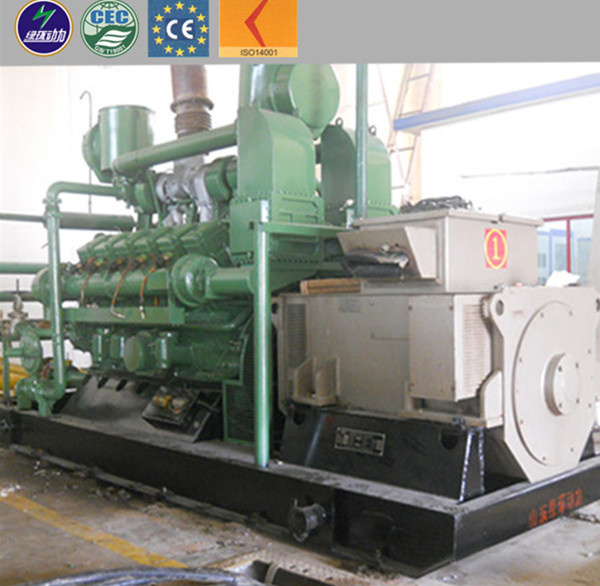

Biomass gas biogas natural gas powered turbine generator
Manufacturer-factory price
ISO and CE certificate
12 months warranty
Free spare parts available with genset
Power generator specification:
Rated Power supply range: 10-600 KW (12.5-750KVA)
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Natural gas( CNG, LPG), biogas, biomass, methane, syngas etc.
Machine supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Cutting - edge of our generator
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.
Automatic control system for generator
1. Manual control panel
2. Long distance control system
3. Automatic control panel and automatic loading switch:
4. Control Panel of parallel operation:
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
5. Turnkey project as your need.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection: 100% inspection before shipment in person or third party.
FAQ:
1. How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2. What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy.
E. G 1.0 Cubic meter natural gas produce about 3.0kw/h
3. What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation, repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
| Model Number (Engine Type) | LHBMG10-600 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 10-600KW |
| Gas mixing type | outside |
| Rated Speed | 1000/1500r/min |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 380V/220V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1 |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 1.81-6.45L |
| Cylinder Number | 2-12 pcs |
| Cylinder Bore | 100-190mm |
| Stroke | 115-210mm |
| Starting System | DC 24V eclectic motor |
| Cooling method | water cooler |
| Lubricant method | Pressure and splash |
| Isolation class | H |
| Protection | IP23 |
| Alternator | ENGGA |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
