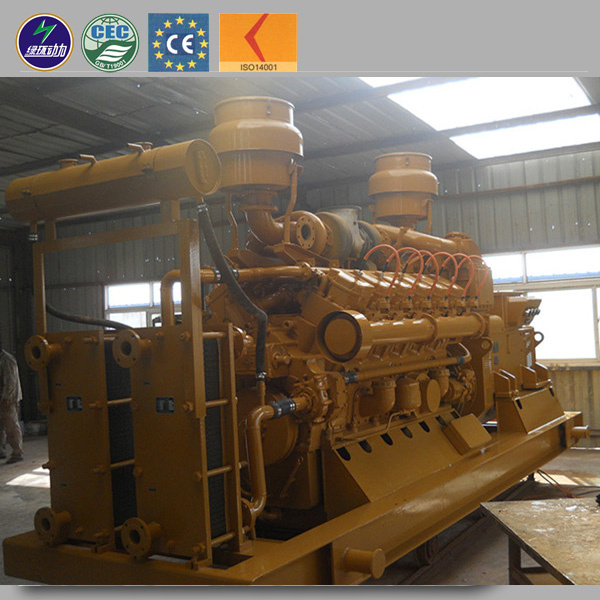

Biomass Biogas Natural Gas Electric generator Power Generation
We produce natural gas generator, biogas generator, biomass generator, syngas generator and diesel generator for more than 10 years and our generators are running allover the world.
Please see below info of natural gas generator, if you have any questions, please contact me freely.
100kw gas generator specification and parameters:
Rated Power: 100 KW ( 125KVA)
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
100kw gas generator required gas condition:
Within 1meter from gas intake valve of generator
1. The ratio of methane(CH4) in natural gas ≥ 70%
2. Pressure of natural gas 80 ~ 200kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
Features of our gas generator:
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.
100kw gas generator machine supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Automatic control system for gas generator
1. Manual control panel: This mode can not only provide start/stop fundamental function, but also can supervise the sunning situation if the generator set bu showing ass the technical data. Based on the alarm system and protection function, the generator can run more steady and reliably.
2. Long distance control system: The generator can be controlled in a long distance. We fix start time-lapse relay and stop time-lapse relay on the panel, so the system is easier to operate and it can run more reliable.
3. Automatic control panel and automatic loading switch: Freestanding control cabinet with ATS and automatic start control function available form us. It's easy to operate and suitable for the central control of electric equipment.
A. National grid power and self-generated power can be switched freely by ATS with protection.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection: 100% inspection before shipment in person or third party
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat
5. Other service needed form your side
Model Number | LHNG1100 |
Brand Name | Lvhuan |
Rated Power | 1100KW |
Rated Speed | 1000 rpm |
Rated Frequency | 50 /60 Hz |
Applied Voltage/ rated voltage | 220v / 380V - 230V / 400V |
Phase | AC 3 phase 4 wire |
Starting system | 24V electric motor |
Cooling method | Circulating water cooling |
Lubricant method | pressure and splash |
Power Factor | 0.8 lagging |
Voltage Stability | ≤±2% |
Voltage Transient | ≤±10% |
Voltage Stable time | ≤1 s |
Cylinder No., diameters and stroke | 12 pcs 190mm, 210mm |
Voltage regulation mode | automatic |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
