Home Generator Products Biogas Genset, Methane Gas Powered 10kw - 1000kw Biogas Electric Generator

Biogas Genset, Methane Gas Powered 10kw - 1000kw Biogas Electric Generator

Biogas Genset, Methane Gas Powered 10kw - 1000kw Biogas Electric Generator
Price: US $ 13000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Biogas genset, methane gas powered 10kw - 1000kw Biogas Electric Generator

Biogas generatpr Application:

1.Waste water treatment system
2.Landfill gas power plant
3.Farm and house house hold mini power generation
4.City garbage treatment
5. Farm and animal manure power plant

Biogas generator core features :
Original manufacturer supply
Rate power supply range: 10kw - 1100kw
Prime power supply range: 8kw - 880kw
Capacity: 1CBM biogas produce 1.5-2.5kw.h power

Voltage and Frequency:  400V/230V, 50/60HZ
Fuel: Household waste, animal waste, other organic exist in waste water and rubbish etc.

Biogas generator specification :

Model Number

LHNG10-1100

Brand Name

Lvhuan

Rated Power

10-1100

Rated Speed

1000/1500rpm

Rated Frequency

50/60 Hz

Rated Voltage

400/230V

Phase

AC 3 phase 4 wire

Starting system

24V DC electric motor

Cooling method

water cooler

Lubricant method

passive and splash

Isolation class

H

Protection

IP23

Power Factor

0.8 lagging

Exciting method

Brush less

Voltage Stability

≤±2%

Voltage Transient

≤±10%

Voltage Stable time

 ≤1 s

Engine Capacity

1.81-95L

Cylinder Number

2-16

Cylinder Diameter

100-190mm

Range

115-210mm

Heat consumption

≤9.8mj/kw.h

Oil consumption

≤1.63g/kw.


Biogas generator Work site requirements:
The work site needs to meet following basic requirements:
a)  Ambient temperature between -40ºC~40ºC;
b)  Relative humidity less than 95%(35ºC);
c)  Site elevation not higher than 2500m;
d)  For outdoor installation, simple rain shelter is required.

Biogas generator Fuel gas requirement:
1m distance away from generator set's pressure regulating valve of inlet
    Temperature of  biogas ≤40ºC;
    Pressure of  biogas 5~20kPa, velocity of pressure≤ 1kPa/min;
    H2S≤200mg/Nm3;
    NH3≤20mg/Nm3;
    Coke tar content≤20mg/Nm3;
    Impurities particle size≤5μm; impurity content≤30mg/Nm3;
    Moisture Content of  biogas ≤40g/Nm3;
    Biogas gas calorific value≥4.2MJ/Nm3.
Purification of biogas have a significant impact on machine life and continuous running time!

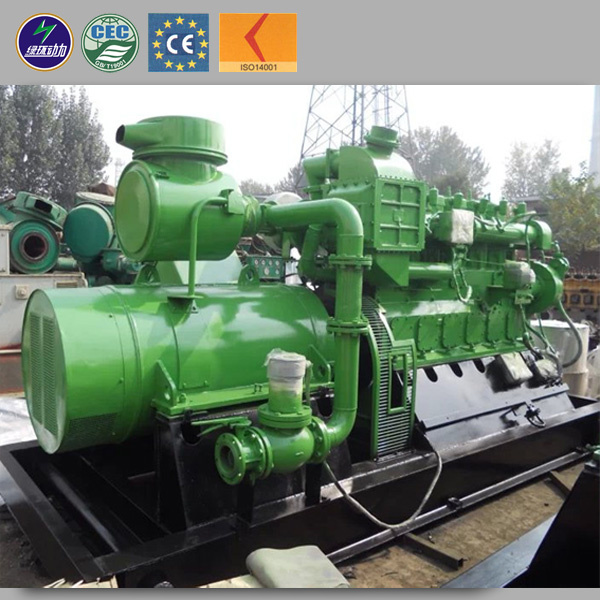

Biogas generator photos:
Biogas generator features:


1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve

5.Residual heat CHP recycle system available for choice.


Biogas generator Supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.

Our company overview:
Visitors form oversea:
RFQ:

1.How to choose the right model?   A: It depends on real output power, Voltage, Frequency and gas type.

 2.What is the oil consumption and capacity per hour?

  A: 1.0-1.63g of lubricant oil consumption per hour.

      1.0 Cubic meter gas can produce1.5-3.0kw/h power.          The capacity depends on gas energy.
      E.g 1.0 Cubic meter natural gas produce about 3.0kw/h

3.What is the overhaul?

   A: About 30000 working hours. A week is enough to finish.

4. What is the warranty?

    A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare      parts are not free. But, a set of spare parts will be shipped together with machine free.

5. How is the service?

A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.

Any questions, please contact me freely.


Prod Model: Biogas Generator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name: Biogas Electric Generator Applied Biogas Plant
Applied Fuel: Biogas, Landfill Gas,Methane
Biogas Generator Function: Electridity Generator by Biogas
Certificate: CE ISO
Biogas Generator Warranty: 12 Months
Biogas Generator Genset Type: CHP for Optional
Biogas Generator Cooling Method: Colsed/Open Water Cooling
Silent Canopy: Optional
Connect To National Grid: on Request
Installation Abroad: Yes
Gas Source: Biogas
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
