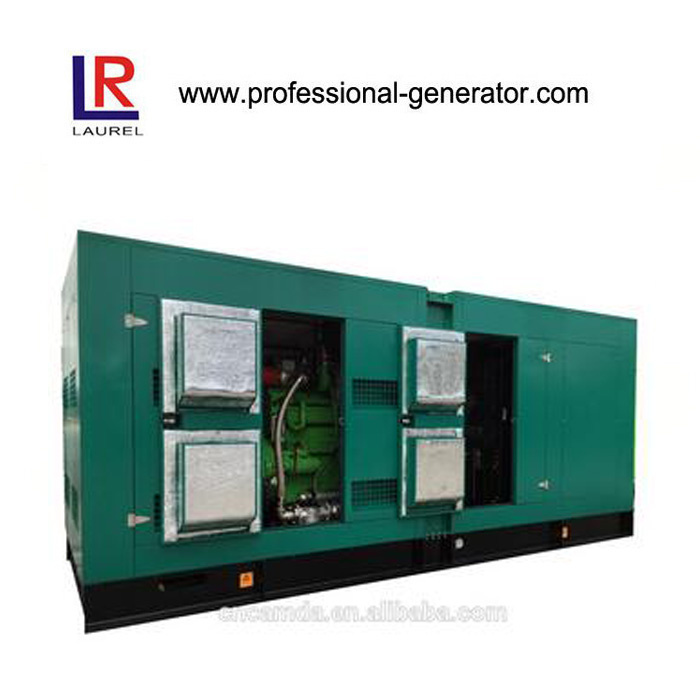

Biogas Generator 300kw/Biogas Electric Power Generator/Biomass Power Plant/Power Generation/Power Engine
Specifications:
| Model Item | LRGH300-G |
| Rated power | KW | 300 |
| KVA | 375 |
Rated Voltage (V) and
Rated Frequency (Hz) | 380V-415V (50Hz), 220V-480V (60Hz) |
| Voltage Stabilized Regulation | ≤±1.5% |
| Voltage Instantaneous Regulation | ≤±20% |
| Voltage Recovery Time (S) | ≤1 |
| Frequency Fluctuation Ratio | ≤1% |
| Generator Insulation Class | H |
| Noise Level (Db) | ≤100 |
| Engine Model | HGKT19 |
| Aspiration | Turbo |
| Arrangement | Inline |
| Engine Type | Four stroke, electronic control spark plug ignition,
watercooling, premix proper ratio of air and gas before combustion |
| Cooling Mode | Radiator fan cooling for closed-type cooling mode,
or heat exchanger water cooling for cogeneration unit |
| Cylinders | 6 |
| Bore X Stroke (mm) | 159*159 |
| Displacement (L) | 18.9 |
| Compression Ratio | 11.5 : 1 |
| Engine Rated Power (kw) | 336 |
| Rated Speed (r/Min) | 1800 |
| Fuel | Natural Gas / Biogas |
| Max Gas Consumption (m3/kw.h) | 0.3/0.6 |
| Idling Speed (r/Min) | 700 |
| Oil Recommended | API service grade CD or higher SAE 15W-40 CF4 |
| Oil Consumption (g/kW.h) | ≤0.5g |
| Exhaust Temperature | ≤ 600ºC |
| Net Weight (Kg) | 3380 |
| Dimension mm) | L | 3500 |
| M | 1250 |
| H | 2020 |
Advantages:
Experiment- evidential gas engine technology
Overhaul term: 18000~25000 hours
Over 85% cogeneration efficiency
Economical and low-cost running: lower gas and oil consumption
Specially designed air valves, crankshaft, camshaft, pistons, ignition system and combustion chamber
according to international brands gas engine technology(Waukesha, MAN, Guascor, Daewoo).
4 air valves design for each cylinder, sufficient air intake and exhaust, more air intake, to realize higher
power output and stronger capability of load
Electronic Air/Fuel Ratio mixer, better combustion and lower emission, sufficient combustion to reduce
gas consumption and increase engine heat efficiency, effectively lessen NOX emission.
Original Cummins engine body, 90% parts made by Cummins China factory, long life and durable engine parts produced strictly accord to ISO9001:2008 International Quality Management System.
Unique air-fuel ratio adjusting system adapting 30%~70% CH4 Methane concentration.
Integrated Crankshaft Forging for gas engine made by Cummins, different from other China brands whose crankshaft is only forged by subsections from diesel engine and then assembled into a whole.crankshaft. But our engine body is specially designed for gas power generation.
Continuous rating up to 90% of prime power rating.
Exceed 10-year genset repair and maintenance experience
Low pressure gas intake, biogas no need boosting pressure
Larger displacement engine to keep much surplus for genset power output.
Electrical efficiency higher 10%~20% than other China brands
With good command of biogas anaerobic technology, we can make better biogas genset, design and
testing.
ISO standard production
Adopting highprecision special gas engine speed governor: precise speed governing, instant recovering ability so as to fit different loads upon the three signals: rotating speed, load and temperature.
Precisely-controlled engine air intake and exhaust time.
Advanced ignition sensor and ECU (Electronic Control Unit) ignition system with computer core:
Precise ignition at right cylinder and right time, prompt startup ability to avoid the ratio of detonation and
make stable engine.
Crankshaft and Rod: Robust and fully balanced crankshaft design for a more steadily rotation and higher strength.
Lubrication System: Dual spin-on filter can separate impurity above 10um effectively and lower cost.
Less accumulated carbon, reduces the abrasion between cylinder and valve, it can much prolong genset lifetime.
Compact design: small size and weight
Wide spare parts availability: Base on Cummins engine parts, the engine base body made of the parts
from the supplying factory for Cummins engine China factory.
Equipped with the most well-known brand generator-Leroy Somer.
Using advanced intelligent PLC genset controller: capable computer chip, with full monitoring, control, alarm and protecting function, all-in-one configuration for all kinds of demands.
Electrical system: 24V cranking motor starting and battery charging system.
Parallel operation with genset or city power grid for option.
Genset working condition:
Acceptable working conditions:
Ambient temperature : 0ºC~+40ºC, ambient below 0ºC need special design.
(antifreeze or hot water needed for below -20ºC)
Relative humidity:<90%(20ºC)
Altitude:≤1000m
Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20ºC, Relative Humidity: 30%.
