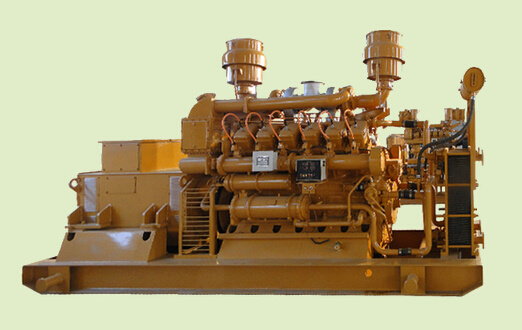

500KW CHP Natural Gas Genset for Electric Power PlantFeatures:1. 20 years professional experience to produce gen-set
2. Short product cycle (15 days average)
3. Low daily maintenance costs
4. Easy to operate and maintian
5. Engery-savingMain Specification
Gen-set model | CW-500GFT |
Engine No. | 12V190ZLDT-2 |
Gas mix type | outside |
Rated power | 500kw |
Continuous power | 400kw |
Rated voltage | 400v/230v |
Phase | 3phase4wire |
Rated frequency | 50Hz |
Rated rotation | 1000r/min |
Rated power factor | 0.8 |
Rated current | 902A |
Frequency volatility rate | ≤0.5% |
Voltage regulating rage | 95-105% |
Heat consumption | ≤11.5mj/kw.h |
Lubricant consumption | ≤1.5g/kw.h |
Gas pressure | 80-200kpa |
Cylinder number | 12 v |
Cylinder diameter | 190mm |
Stroke | 210mm |
Compression ratio | 8:1 |
Starting mode | 24V motor |
Overhaul time | ≥25000h |
Noise | ≤105DbB(A) |
Intake mode | supercharging ,inter cooed |
Sparking mode | sparking plug |
Voltage regulation mode | automatic |
Speed regulation mode | electric speed regulate |
Lubrication mode | pressure and splash |
Cooling mode | circulating water cooled |
Exhaust temperature | ≤650ºC |
Displacement | 71.45L |
Genset size | 6000*1970*2735 |
Natural Gas Generator Set Supply Scope with High Quality:
- High Performance Biomass Engine .
- Siemens Brushless Alternator.
- Steel Base Frame with Shock Absorber
- High performance Gas Pressure Regulator FISHER American Brand
- Advanced Ignition System Sparking plug STITT American Brand
- IMPCO Air-Fuel Mixer Made in USA.
- Stable Electronic Speed Governor.
- High Performance Flame Arrester.
- Safely Explosion-Proof System.
- MCCB, Radiator Fan, Muffler, Air Filter.
- Installation Accessories, Tool Kit & Manual Books.

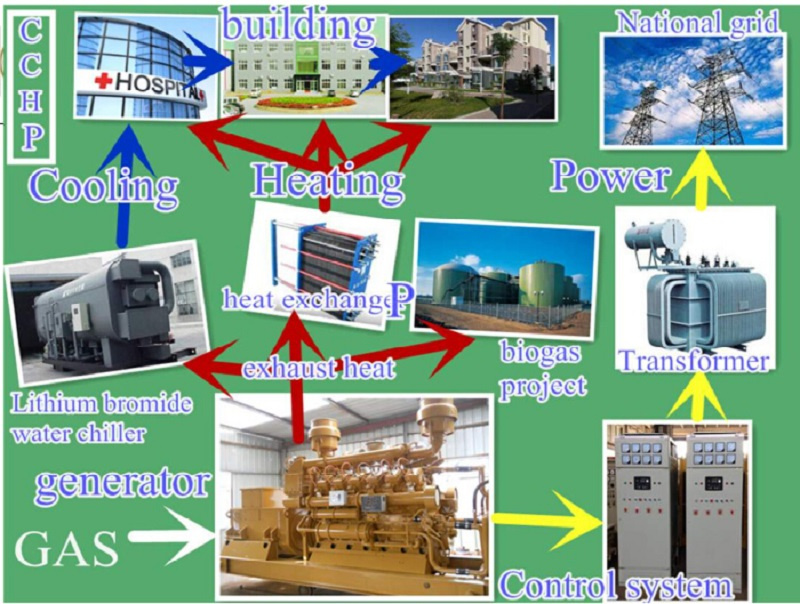

Natural Gas Genset with CHP system
Sincerely welcome to visit our factory and build future cooperation relationship!
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
