Home Generator Products Bigger Power Portable Generator with Kta38-G5 Diesel Engine

Bigger Power Portable Generator with Kta38-G5 Diesel Engine

Bigger Power Portable Generator with Kta38-G5 Diesel Engine
Price: US $ 50000-150000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

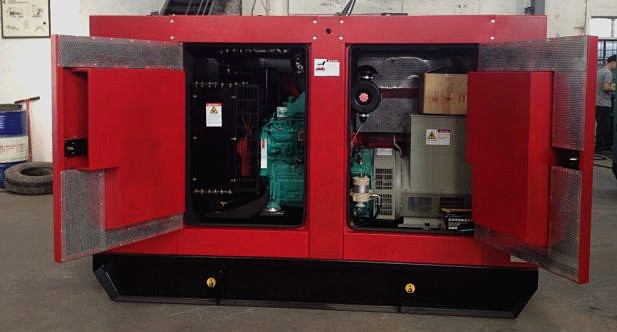

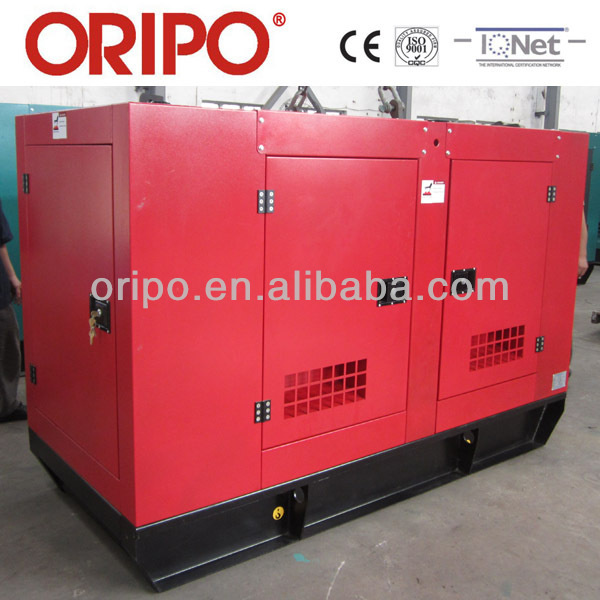

Bigger power portable generator with KTA38-G5 diesel engine:

Product Description:

Product Features:

1. With Brand New Cummins Engine.

2. 100% Copper Alternator Generator.

3. Good Quality and Rapid Service.

4. Lasted 8 Hours Running Fuel Tank.

5. Fuel Less Generator.

6. If With ATS, Can Be Automatic Started When Out Of Electric Supply.




Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL-16501650132015001200KTA50-GS8LTG454A16110
220/380V, AC, 50Hz, 0.8PF (lag), Three phase four wire

Generator set specifications
Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)205 (293.67)
Starting Battery Capacity ,A/hrhhr200*4
Total Coolant Capacity ,L330
Fuel Capacity (base tank),LN/A

Engine Data
ModelKTA50-GS8
Type"V" Type 16 Cylinder,4 Cycle
Displacement ,L50.3
Compression Ration14.9:1
AspirationTurbo, Water / Air Cooling
Fuel SystemPT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)159*159
Rated Speed ,rpm1500
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L204
Coolant Capacity, L330

Alternator Data
Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%

Exhaust System
Exhaust air flow4350 L/S
Exhaust Temperature 510ºC
Max Back Pressure10kPa

Air Intake System
Max Intake Restriction6.35 kPa
Burning Capacity1655 L/S
Air Flow36000 L/S

Lubricant System
Total Lubricant Capacity204L
Lubricant Consumption4g/kwh
Engine Oil Tank Capacity178L
Oil Pressure at Rated Speed345-483 kPa

Cooling System
Total Coolant Capacity330L
Thermostat82-93ºC
Max Water Temperature104ºC

Company profile:



Prod Model: OJL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Green,Yellow,Blue,Ect
Brand: Oripo
Control System: Intelligent Control
Rated Frequency: 50Hz/60Hz
Rated Voltage: 230/440V
Rated Current: 10A/2000A
Rated Speed: 1500rmp/1800rmp
Type: Self-Starting Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Excitation Mode: Brushless Self-Excited
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
