Big Silent Diesel Generator with CE&ISO9001
| Price: |
US $ 1000-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |

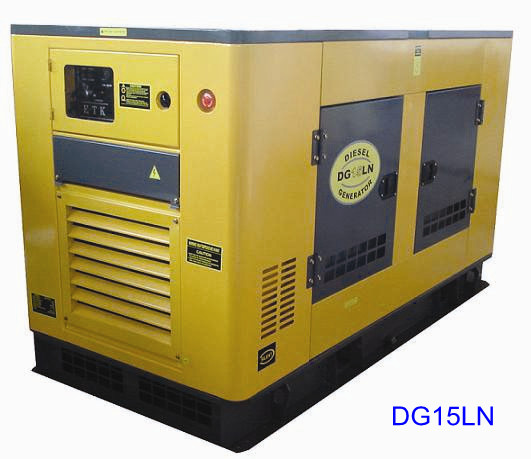

DIESEL GENERATOR SET
Portable diesel generator with 4 wheels, diesel generator professional export manufacturer. Diesel engine, diesel water pump, diesel generator and welder set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction
Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW, 10KW. Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificate. Have steady quality and competitive price.
This air-cooled diesel generators are widely used when electrical power is scarce, Our welders provide a portable mobile solution in supplying power for field operations during project construction.
Sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow!
Advantages
1. Diesel generator set with CE certificates
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
| Model | DG8LN | DG10LN | DG12LN | DG15LN | DG20LN | DG25LN | DG30LN | DG40LN | DG50LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 8/10 | 10/12.5 | 11/13.75 | 15/18.75 | 20/25 | 25/30 | 30/37.5 | 40/50 | 50/62.5 |
| Max output(Kw/kva) | 8.8/11 | 11/13.75 | 12.1/15.12 | 16.5/21 | 22/27.5 | 25/31.25 | 33/41 | 44/55 | 55/68.75 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 27.5/34.4 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) |
| 18 | 22 | 27.1 | 36.3 | 43 | 54.1 | 72 | 90 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | 295D | 295D | 2100D | 495D | 495D | K4100D | K4100ZD | R4105D | R4105ZD |
| Cylinder Number: | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 1.63 |
|
|
|
|
|
|
|
|
| Borexstroke(mm) | 95x115 | 95x115 | 100x115 | 95 x125 | 95 x125 | 100X115 | 95x115 | 105x125 | 105x125 |
| DIMENSION Dimension(LxWxH)(mm) | 1600*850*970 | 1600*850*970 | 1600*850*970 | 1900x850x1100 | 1900x850x1100 | 2000x850x110 | 2000x850x110 | 2400x1050x1400 | 240 0*1050*1450 |
| Dry weight(Kg) | 680 | 698 | 686 | 705 | 920 | 925 | 1040 | 1125 | 1225 |
| Model | DG75LN | DG100LN | DG120LN | DG150LN |
| GENERATOR Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated output(kw/kva) | 75/93.75 | 100/125 | 120/150 | 150/187.5 |
| Rated voltage(v) | 400/230 | 400/230 | 400/230 | 400/230 |
| Power factor(cos) | 0.8 | 0.8 | 0.8 | 0.8 |
| Rated currency(A) | 135 | 180 | 217 | 270 |
| Phase | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Operating noise level(at 7m ) | 75-80 | 75-80 | 75-80 | 75-80 |
| Starting system | Electirc | Electirc | Electirc | Electirc |
| ENGINE Model | R6105ZD | R6105ZLD | R61051ZLD | 6135AZD-1 |
| Cylinder Number: | 6 | 6 | 6 | 6 |
| Displacement |
|
|
|
|
| Borexstroke(mm) | 105x125 | 105x125 | 95x115 | 95 x125 |
| DIMENSION Dimension(LxWxH)(mm) | 2850x1100x1650 | 2950x1150x1650 | 3150x1150x1650 | 2700x900x1780 |
| Dry weight(KG) | 1225 | 1530 | 1570 | 2050 |
| Prod Model: |
DG10LN-3P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Power: |
2/3/5/10kw |
| Warranty: |
Running for One Year |
| Phase Connection: |
3-Phase,4-Wire |
| Exciation: |
Brushless |
| Starting System: |
Electricstart |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Portable |
| Output Type: |
AC Three Phase |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
