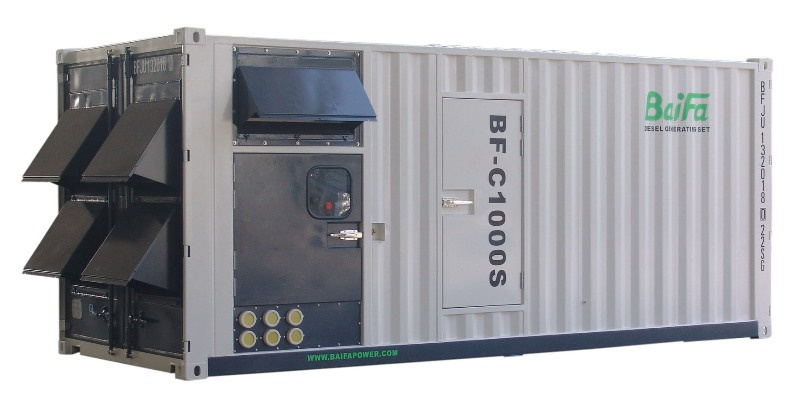

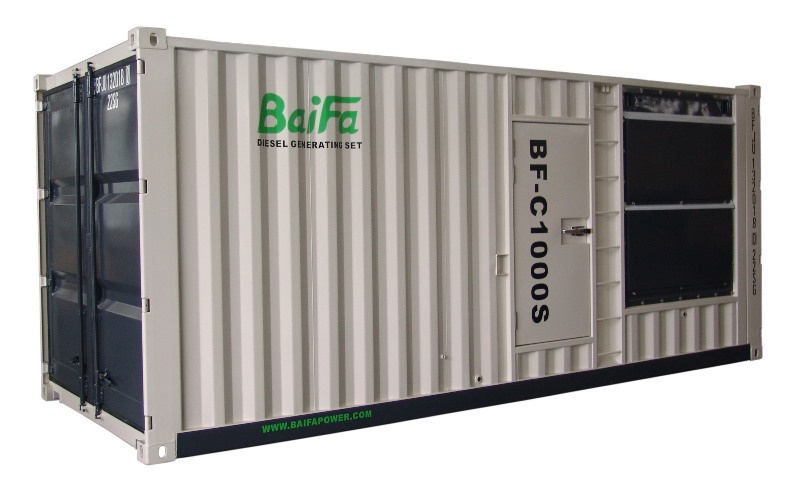

| MODEL | BF-C1000S |
| Standby Power(50Hz) | 800KW / 1000KVA |
| Prime Power(50Hz) | 728KW / 910KVA |
| General Features: |
| Engine (CCEC Cummins KTA38-G2A) |
| Radiator 40OC max, fans are driven by belt, with safety guard |
| 24V charge alternator |
| Alternator: single bearing alternator IP23, insulation class H/H |
| Absorber |
| Dry type air filter, fuel filter, oil filter, coolant filter |
| Main line circuit breaker |
| Permanent Magnet Generator(PMG) |
| Standard control panel |
| Two12V batteries, rack and cable |
| Ripple flex exhaust pipe, exhaust siphon, flange, muffler |
| User manual |
| Voltage | HZ | Phase | P.F
(COS¢) | Standby Amps | Standby Ratings
(KW/KVA) | Prime Ratings
(KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 1312 | 800/1000 | 728/910 |
| 415/240 | 50 | 3 | 0.8 | 1391 | 800/1000 | 728/910 |
| 400/230 | 50 | 3 | 0.8 | 1443 | 800/1000 | 728/910 |
| 380/220 | 50 | 3 | 0.8 | 1519 | 800/1000 | 728/910 |
Baifa Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions: a, 15 months, counted on the day BAIFA sold to the first buyer; b, One year after installation; c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from Baifa Power or distributors in your location.
