Best Price Cummins Power 128kw/160kVA Soundproof Electric Generator (GDC160*S)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,DAT |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Best Price Cummins Power 128kw/160kVA Soundproof Electric Generator (GDC160*S)
Specifications1. noise performance is conforming to international standard 65-75dBA at 1m distance.2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.3. base tank designed can assure gensets running continuously about 8-10hours.4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.5. with design of 3 doors and 1 observation windows.6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.7.Compact structure,small size,and longer service life.8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.10.All movable devices are fixed firmly,and therefore help reduce vibration.SafetyDesign, production and testing of the generator sets comply with EU CE safety standard;Equipped with circuit breaker to avoid possible electric risk at re-startup when engine stops in emergency.The controller has a historical operation recording function for troubleshooting and inspection.Powerful EnginesAdopts world-famous engines,with low noise and low emission.Rugged structure ensures lowest vibration.Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.Control SystemMicro-processor cored digital system.Multiple languages, automatic control.Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.soundproof electric generator specifications:1. The main parameters of 160Kva 50HZ diesel generators |
The model of the unit: | GDC160*S |
Power: | 128KW/160KVA |
Rated voltage: | 400V (Adjustable) |
Rated current: | 144A |
Rated frequency: | 50Hz |
The factor of rated power | COS=0.8(lag) |
The regulating rate of steady voltage: | ≤±0.5% |
The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤0.5% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±5% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤0.25% |
The waste of fuel with full load: | 22.6 L/h |
size(mm): | 2300*850*1300 |
weight: | 1200KG |
2.The main parameters of the Cummins 6BTAA5.9-G12 diesel engine |
Brand: | Cummins |
Model: | 6BTAA5.9-G12 |
Type: | four strokes, waste gas turbine boost,direct spurting type |
Cooling way: | water cooling |
With Type: | L type |
Bore *Trip : | 102mm*120mm |
Displacement | 5.9L |
Lubricating oil capacity: | 24L |
Cylinder: | 6 cylinders |
Rotating speed: | 1500r/min |
The regulation of rotating speed: | Electronic speed |
Starting way: | DC24V starting with electricity |
3.The main parameters of Alternator |
Brand: | Stamford UCI274D |
Type: | Brushless (AVR automatic voltage regulating) |
The connecting way of the phase: | three phases four lines |
Insulation degree: | H degree |
Grading Protection: | IP23 |
4. Controlling Panle of the 50HZ 160Kva diesel generators |
The controlling panle use Deepsea DSE7320 controller,it can show active power, three-phase voltage, frequency and three-phase current, kilowatt-hour, power factor, oil pressure, coolant temperature, speed units, operating hours, battery voltage and other shows. Diesel is speeding alarm shutdown, and low oil pressure alarm and shutdown, the high temperature alarm and shutdown, over-voltage generators, low alarm and shutdown, and frequency too high, too low alarm and shutdown, short-circuit current and IDMT of over-current protection. |
CUMMINS configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Cyl. | Disp. | Bore *Stroke | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | CUMMINS | GODLIKE | STAMFORD | (nos) | (L) | (mm) | (g/kw.h) |
1 | GDC20*S | 20 | 16 | 23 | 18 | 4B3.9-G1/G2 | JDG164D | PI 144D | 4 | 3.9 | 102*120 | 215 |
2 | GDC25*S | 25 | 20 | 28 | 22 | 4B3.9-G1/G2 | JDG184F | PI 144E | 4 | 3.9 | 102*120 | 215 |
3 | GDC30*S | 30 | 24 | 33 | 26 | 4BT3.9-G1/G2 | JDG184G | PI 144G | 4 | 3.9 | 102*120 | 215 |
4 | GDC40*S | 40 | 32 | 44 | 35 | 4BT3.9-G1/G2 | JDG184H | PI 144J | 4 | 3.9 | 102*120 | 215 |
5 | GDC43*S | 43 | 34 | 47 | 37 | 4BTA3.9-G2 | JDG224C | UCI224C | 4 | 3.9 | 102*120 | 215 |
6 | GDC50*S | 50 | 40 | 55 | 44 | 4BTA3.9-G2 | JDG224D | UCI224D | 4 | 3.9 | 102*120 | 215 |
7 | GDC57*S | 57 | 45 | 63 | 50 | 4BTA3.9-G2 | JDG224ES | UCI224E | 4 | 3.9 | 102*120 | 215 |
8 | GDC60*S | 60 | 48 | 66 | 53 | 4BTA3.9-G2 | JDG224E | UCI224E | 4 | 3.9 | 102*120 | 215 |
9 | GDC63*S | 63 | 50 | 69 | 55 | 6BT5.9-G2 | JDG224E | UCI224E | 6 | 5.9 | 102*120 | 215 |
10 | GDC73*S | 73 | 58 | 80 | 64 | 6BT5.9-G2 | JDG224F | UCI224F | 6 | 5.9 | 102*120 | 215 |
11 | GDC88*S | 88 | 70 | 96 | 77 | 6BT5.9-G2 | JDG224G | UCI224G | 6 | 5.9 | 102*120 | 215 |
12 | GDC93*S | 93 | 75 | 103 | 82 | 6BT5.9-G2 | JDG224H | UCI274C | 6 | 5.9 | 102*120 | 215 |
13 | GDC100*S | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | JDG274C | UCI274C | 6 | 5.9 | 102*120 | 215 |
14 | GDC120*S | 120 | 96 | 132 | 106 | 6BTA5.9-G2 | JDG274DS | UCI274D | 6 | 5.9 | 102*120 | 215 |
15 | GDC135*S | 135 | 108 | 149 | 119 | 6BTAA5.9-G2 | JDG274ES | UCI274E | 6 | 5.9 | 102*120 | 215 |
16 | GDC138*S | 138 | 110 | 151 | 121 | 6CTA8.3-G2 | JDG274ES | UCI274E | 6 | 8.3 | 114*135 | 210 |
17 | GDC150*S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | JDG274E | UCI274E | 6 | 8.3 | 114*135 | 210 |
18 | GDC160*S | 160 | 128 | 176 | 141 | 6CTA8.3-G2 | JDG274F | UCI274F | 6 | 8.3 | 114*135 | 210 |
19 | GDC180*S | 180 | 144 | 198 | 158 | 6CTA8.3-G2 | JDG274G | UCI274G | 6 | 8.3 | 114*135 | 210 |
20 | GDC200*S | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | JDG274H | UCI274H | 6 | 8.3 | 114*135 | 210 |
21 | GDC225*S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | JDG274J | UCD274J | 6 | 8.9 | 114*135 | 197 |
22 | GDC250*S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | JDG274K | UCD274K | 6 | 8.9 | 114*135 | 197 |
23 | GDC250*S | 250 | 200 | 275 | 220 | NTA855-GA | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
24 | GDC250*S | 250 | 200 | 275 | 220 | MTA11-G2A | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
25 | GDC275*S | 275 | 220 | 303 | 242 | NTA855-G1A | JDG314DS | HCI444D | 6 | 10.8 | 125*147 | 188 |
26 | GDC300*S | 300 | 240 | 330 | 264 | NTA855-G1B | JDG314D | HCI444D | 6 | 10.8 | 125*147 | 188 |
27 | GDC313*S | 313 | 250 | 344 | 275 | NTA855-G1B | JDG314ESS | HCI444ES | 6 | 10.8 | 125*147 | 188 |
28 | GDC325*S | 325 | 260 | 358 | 286 | NTA855-G1B | JDG314ES | HCI444ES | 6 | 14.0 | 140*152 | 200.2 |
29 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G2A | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
30 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G4 | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
31 | GDC375*S | 375 | 300 | 413 | 330 | NTAA855-G7 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
32 | GDC375*S | 375 | 300 | 413 | 330 | KTA19-G2 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
33 | GDC400*S | 400 | 320 | 440 | 352 | NTAA855-G7A | JDG314F | HCI444F | 6 | 14.0 | 159*159 | 205.4 |
34 | GDC420*S | 420 | 336 | 462 | 370 | NTAA855-G7A | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
35 | GDC450*S | 450 | 360 | 495 | 396 | KTA19-G3 | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
36 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G3A | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
37 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G4 | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
38 | GDC550*S | 550 | 440 | 605 | 484 | KTAA19-G5 | JDG354ES | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
39 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G6 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
40 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G8 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
41 | GDC625*S | 625 | 500 | 688 | 550 | KTAA19-G6A | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
42 | GDC625*S | 625 | 500 | 688 | 550 | KT38-G | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
43 | GDC700*S | 700 | 560 | 770 | 616 | KTA38-GA | JDG354G | HCI544F-S | 12 | 37.8 | 159*159 | 213 |
44 | GDC750*S | 750 | 600 | 825 | 660 | KTA38-G2 | JDG404B | LVI634B | 12 | 37.8 | 159*159 | 209 |
45 | GDC800*S | 800 | 640 | 880 | 704 | KTA38-G2B | JDG404C | LVI634C | 12 | 37.8 | 159*159 | 196 |
46 | GDC900*S | 900 | 720 | 990 | 792 | KTA38-G2A | JDG404D | LVI634D | 12 | 37.8 | 159*159 | 196 |
47 | GDC1000*S | 1000 | 800 | 1100 | 880 | KTA38-G4 | JDG404E | HCI 634G | 12 | 37.8 | 159*159 | 198 |
48 | GDC1125*S | 1125 | 900 | 1238 | 990 | KTA38-G9 | JDG404F | HCI 634G | 12 | 37.8 | 159*159 | 198 |
49 | GDC1250*S | 1250 | 1000 | 1375 | 1100 | KTA50-G3 | JDG404G | HCI 634J | 12 | 37.8 | 159*159 | 213 |
50 | GDC1375*S | 1375 | 1100 | 1513 | 1210 | KTA50-G8 | HCI 634J | HCI 634K | 12 | 37.8 | 159*159 | 213 |
51 | GDC1500*S | 1500 | 1200 | 1650 | 1320 | KTA50-GS8 | LVI 634G | LVI 634G | 12 | 37.8 | 159*159 | 213 |

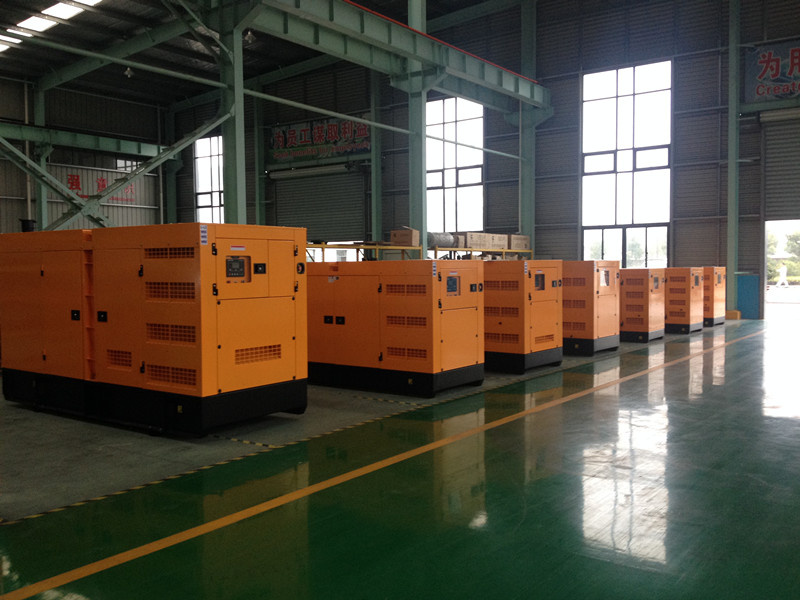

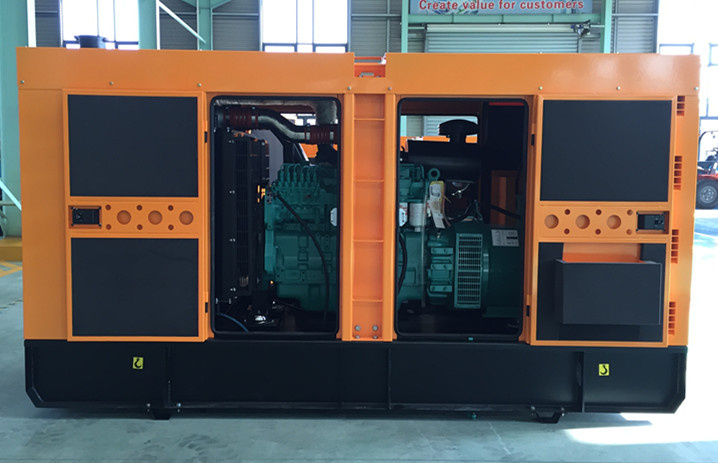

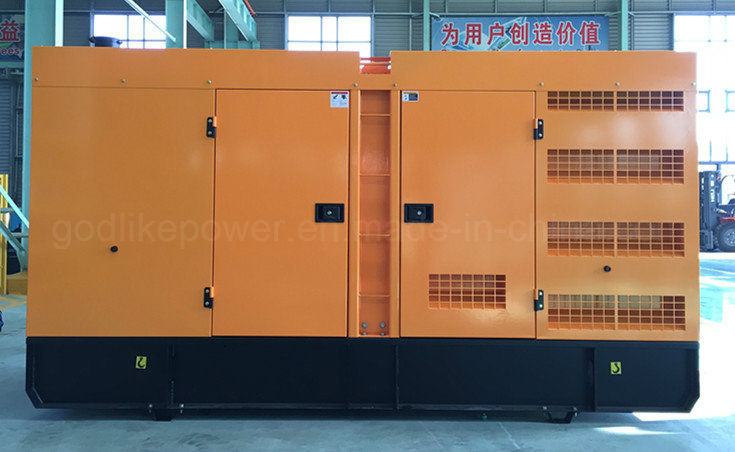

Photos
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Prod Model: |
GDC160*S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Specialize: |
100% Famous Material |
Certificate: |
CE, ISO, SGS |
IP: |
23 |
Engine: |
Cummins 6BTA5.9-G2, Deutz Is Optional |
Alternator: |
Stamford Uci274D, Engga, Marathon Is Optional |
Controller: |
Dse7020, 7320 |
Load Test: |
25%,50%,50%,75%,100%,110% |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Wind Cooling |
Output Type: |
AC Three Phase |
