| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| 1. Specification of genset | |
| Gensets model | GDYD15*S |
| Prime power | 12KW/15KVA |
| Standby power | 13KW/16KVA |
| Rated Voltage | 230/400V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 1912x850x1250 |
| Genset Weight(kg) | 876 |
| 2. Specification of diesel engine | |
| Engine brand | Yangdong |
| Engine model | YD480D |
| Number of Cylinders, Cylinder arrangement | 4,Vertical in-line |
| Cycle | Four stroke |
| Standby Rated Output kW | 15.5 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 80x 90 |
| Displacement (Liter) | 1.809 |
| Speed Governor | M |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 4.1/3.2/2.4 |
| Starting Method | DC12V electrical starting |
| 3. Specification of alternator | |
| Alternator brand | GODLIKE/Stamford |
| Alternator model | JDG184E |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | <50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |
50HZ, 3 Phase, 400/230V | ||||||||||
| No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Weight | Dimensions (L*W*H, mm) | Fuel Cons. | |||
Prime KVA | Prime KW | Standby KVA | standby KW | YANGDONG | GODLIKE | KGS | Silent type | (lir/hr) | ||
| 1 | GDYD11*S | 11 | 9 | 13 | 10 | YD380D | JDG164B | 613 | 1800*850*1112 | 3 |
| 2 | GDYD13*S | 13 | 10 | 14 | 11 | YD385D | JDG164C | 624.5 | 1800*850*1112 | 3.36 |
| 3 | GDYD16*S | 16 | 13 | 18 | 14 | YD480D | JDG164D | 670 | 2000*950*1150 | 3.39 |
| 4 | GDYD19*S | 19 | 16 | 21 | 17 | YND485D | JDG184E | 747 | 2000*950*1150 | 4.7 |
| 5 | GDYD24*S | 24 | 19 | 26 | 21 | YSD490D | JDG184E | 706 | 2100*1000*1250 | 6 |
| 6 | GDYD28*S | 28 | 22 | 30 | 24 | Y490D | JDG184F | 736 | 2100*1000*1250 | 9 |
| 7 | GDYD31*S | 31 | 25 | 34 | 27 | Y495D | JDG184G | / | 2100*1000*1250 | 9.8 |
| 8 | GDYD34*S | 34 | 27 | 38 | 30 | Y4100D | JDG184H | 748.4 | 2300*1000*1250 | 10.2 |
| 9 | GDYD38*S | 38 | 30 | 41 | 33 | Y4102D | JDG184H | 938 | 2300*1000*1250 | 11.4 |
| 10 | GDYD44*S | 44 | 35 | 48 | 38 | Y4105D | JDG184J | 968 | 2300*1000*1250 | 13.2 |
| 11 | GDYD55*S | 55 | 44 | 60 | 48 | Y4102ZLD | JDG224ES | / | / | / |
| 12 | GDYD63*S | 63 | 50 | 69 | 55 | Y4105ZLD | JDG224E | / | / | / |
| Prod Model: | GDYD15*S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | Yangdong Brand, Perkins, Deutz Is Optional |
| Alternator: | Stamford, Marathon, Engga |
| Wire: | 100% Pure Copper Wire |

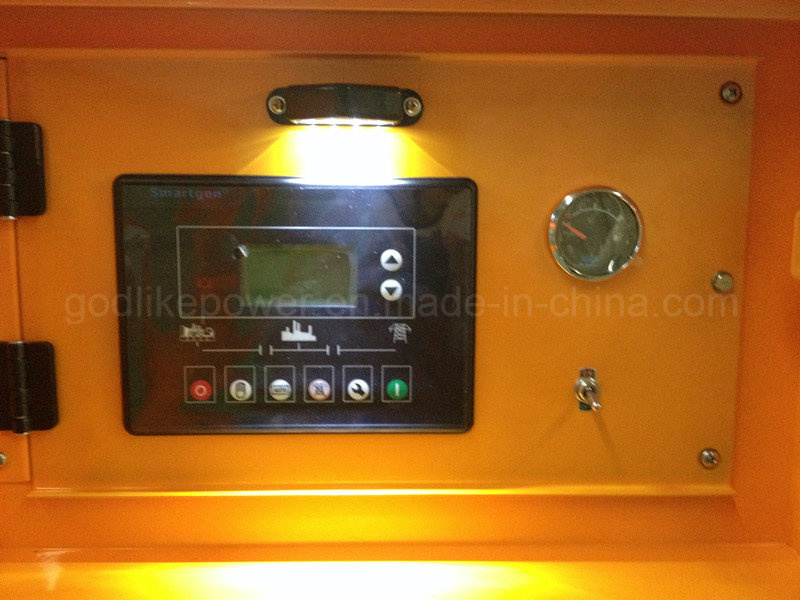

| Controller: | Dse, Smartgen Is Optional |
| Test Load: | 25%, 50%, 75%, 100%, 110% |
| Voltage Range: | 110V-690V |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
