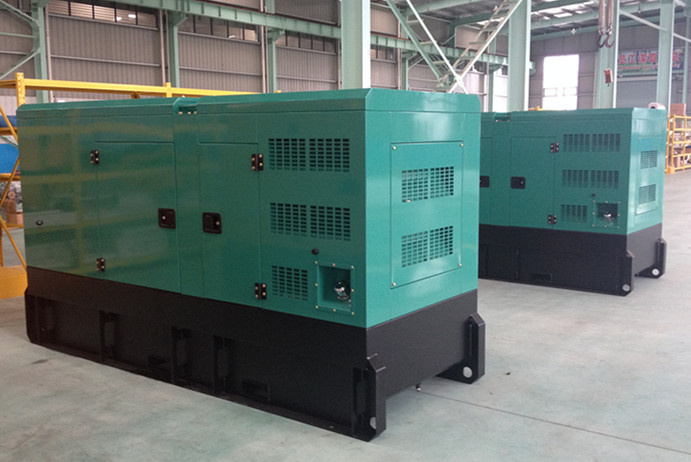

Best price 6BT5.9-G2 80kw/100kVA Cummins Generator (GDC100*S)
Basic Info.
1. International Warranty Service
2. Both water cooled engine and air cooled engine for option
3. With ISO9001 & TUV certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Lisite alternator
6. Perfect after-service network
7. Power range from 15kVA to 585kVA, 50Hz &60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
9. Very short delivery time
Generator Set:
Generator Model: GDC100*S
Prime Power(KW): 80KW/100KVA
Rated Voltage(V): 400/220V
Frequency(Hz): 50Hz
Power Factor: 0.8(lagging)
Rated Current (A): 144A
Dimension (L× W× H) (mm): 2400*800*1600mm
Genset weight (KG): 1150KG
Diesel Engine:
Brand: Cummins
Type: 6BT5.9-G2
Power(KW): 90KW
Number of Cylinders: 6
Rotating Speed: 1500RPM
Aspiration: Turbocharged after water-cooled
Bore× Stroke(mm): 105*120mm
Displacement(L): 6.23L
Compression Ratio: 15.5: 1
Speed Governor: Electrical
Cooling System: Water-cooled
Fuel Consumption at 100% Load: ≤ 208g/kwh
Starting Method: 24V Electrical starting
Alternator:
Brand: copy Stamford Brushless
Model: JDG274C
Rated Voltage(V): 120V-690V
Rated Volumn(kVA): 100kVA
Rated Power(KW): 80KW
Connecting Type: 3hase and 4 Wires
Frequency: 50/ 60Hz 1500RPM/1800RPM
Number of Bearing: Single/Double
Protection Grade: IP23/IP44
Altitude: Within the limits of 1000m, temperature of 40º C or OEM
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating
Insulation Class: H/F
Telephone Influence Factor (TIF): 50
THF: <2%
Voltage Regulation, Steady State: ≤ ± 0.5%
Transient State Voltage: ≤ -15%~+20%
Test before shippment
1, Each Generator Set shall be put into commission more than 4 hours totally, tested on idleload, fully load and 10% overload.
2, Noise level shall be tested.
3, All of the meters on the control panel shall be tested.
4, The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.
Packing & Warranty
Packing: Wooden, Plywood or Metal Case.
Delivery Time: Less than 25 working days after receiving prepayment.
Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
Our warranty standard is higher than most manufacturers for about 25%, because we are confident in our strict test and quality management during each step of manufacture.
DIESEL GENERATOR SETS |
GENSET MODEL NOS. | GDC100*S |
Rated speed / frequency | 1500 rpm / 50 Hz |
Prime output(KW/KVA) | 80/100 |
Standby output(KW/KVA) | 88/110 |
Voltage, Phase and wire | 400/230V, 3 Phase and 4 Wires |
Rated power factor | 0.8(lagging) |
Maximum output current(A) | 135 |
Genset type | Open type | Silent type |
Dimension(L*W*H) (mm) | 2200*900*1350 | 2870*1080*1550 |
Weight(kg) | 1000 | 1500 |
Rating Definitions (Operation at Altitude ≤1500m, Ambient temperature ≤ 40ºC). If altitude higher than 1500m, each 100m will cause additional de-rating 1%. Prime Power These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Power These ratings are applicable for supplying continuous electrical power( at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO8528-3) at 27ºC |
DIESEL ENGINE |
ENGINE BRAND | |
Engine model | 6BT5.9-G2 |
Engine Characters | Water-cooled, 6 cylinders in line, 4-cycle, direct injection |
The maximum output(kW) | 110 |
Aspiration | Turbocharged |
Bore(mm)×Stroke (mm) | 102X120 |
Compression ration | 17.5:1 |
Fuel consumption(L/H) | 22 (100% load) |
Displacement(Liters) | 5.9 |
Exhaust air flow(m3/min) | 148 |
Compress air flow(m3/min) | 5.8 |
Exhaust gas flow(m3/min) | 14 |
Exhaust highest temperature | 510ºC |
Lube-oil pan capacity(L) | 16.4 |
Cooling water capacity(L) | 11 Liters(Engine Only) |
Voltage for start(V) | 24 |
Instrument for adjusting speed | Electronically |
Noise level(A) @ 7m | ≤96dBA(open) | ≤80dBA(Silent) |
ALTERNATOR |
ALTERNATOR BRAND | | |
Alternator model | JDG274 | UCI274C |
Excitation | Brushless, Self-excited |
Insulation class | H |
Protection class | IP23 |
Connection type | Re-connectable |
Voltage Regulation | ≤1.5% |
Waveform Distortion | No load<1.5% and non-distorting balanced linear load<5% |
THF/TIF | <2%/50% |
Contact: Ms Vicki Yuan
Tel: 86 517 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
