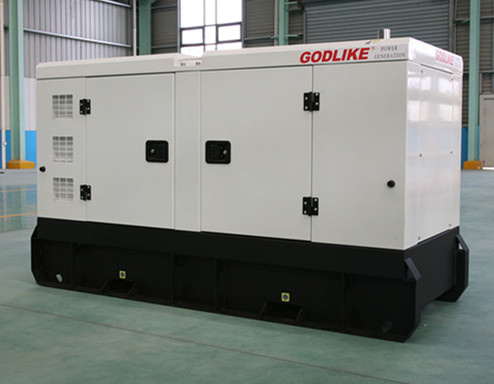

Best price 40kw/50kVA Water Cooled Diesel Generator (4BTA3.9-G2) (GDC50*S)
Specifications
1) Power range: 50kVA /40kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
| Technical data |
| Genset Model | GDC50*S |
| Prime Power | 50KVA |
| Rated Voltage | 400/230V |
| Frequency | 50Hz |
| Power Factor(COS) | 0.8(lagging) |
| Structure type | Soundproof type |
| Noise level (at rated load) dB(A)/7m | 68 |
| Dimension (L×W×H) (mm) | 2800×1060×1660 |
| Genset weight (kg) | 1158 |
| Diesel Engine |
| Brand | Cummins |
| Model | 4BTA3.9-G2 |
| Number of Cylinders | 4 |
| Rotating Speed | 1500RPM |
| Cylinder Arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged after water-cooled |
| Bore×Stroke(mm) | 102×120 |
| Displacement(L) | 3.9 |
| Compression Ratio | 16.5:1 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Total Lubrication System Capacity (L) | 11 |
| Coolant Capacity (Inc. Radiator) (L) | 7.9 |
| Fuel Consumption at 100% Load | 216g/kwh(at 1500RPM) |
| Starting Method | DC24V Electrical starting |
| Alternator |
| Brand | STANFORD ALTERNATOR |
| Model | UCI224C |
| Excite Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
| Connecting Type | 3 Phase and 4 Wires |
| Steady Frequency Change | 0.5% |
| No load voltage | ≥95%105% |
| Steady voltage | ≤±1% |
| Insulation degree | H degree |
| Enclosure degree | IP22 |
| The components of the genset |
| (1) Cummins Diesel Engine; (2) Kaijieli Alternator; (3) Control panel; (4) Soundproof Canopy |
| Control Panel |
| The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressurehigh water temperatureover speedover load protection function. |
