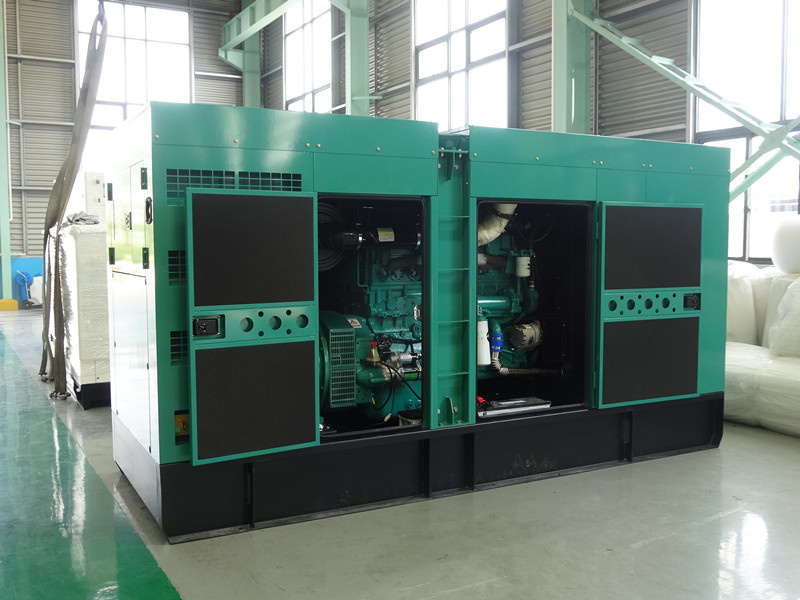

Best Offer Water Cooled Super Silent Generator 200kVA (GDC200*S)

Best offer Water Cooled Super Silent Generator 200kVA (GDC200*S)

Standard Silent Type Gensets
Specifications
1. noise performance is conforming to international standard 65-75dBA at 1m distance.
2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.
3. base tank designed can assure gensets running continuously about 8-10hours.
4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.
5. with design of 3 doors and 1 observation windows.
6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.
7.Compact structure,small size,and longer service life.
8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.

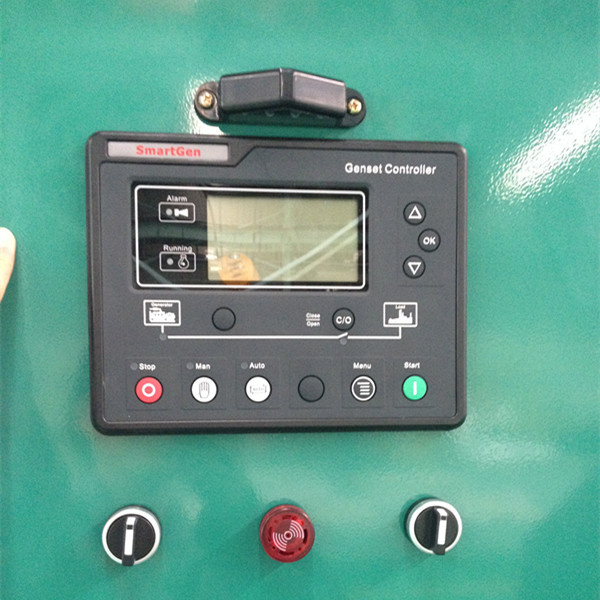

9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.
10.All movable devices are fixed firmly,and therefore help reduce vibration.

General specifications:

Generator Model	GDC200*S
Prime power (KW)	200kVA / 160kW
Standby power (KW)	212.58kVA / 170kW
Engine Data
Engine model	Cummins  6CTAA8.3-G2
Engine filter system	Dry air filter type, Fuel filters, Lube filter
Compress ratio	16:1
Bore * stroke (mm)	105 * 120
100% load fuel consump.(L/h)	41.8
Lubricating oil consump(g/kwh)	Less than 1.36
Exhaust air flow (m3/min)	120
Air consumption (m3/min)	9
Exhaust gas temperature (°C)	500
Oil capacity (L)	330
Alternator Data
Alternator Model	Stamford  UCI 274H
Connecting type	3 Phase and 4 Wires, "Y" type connecting
Protection grade	IP22
Insulation class	H/H
Exciter type	Brushless, self-exciting, with AVR
Generator Data
Size(mm)	2600*1100*1650
Weight(kg)	1900

PS:For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, GODLIKE, Engga and other famous brands.

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER  1500RPM 50HZ				Engine Model	Alternator Model		Cyl.	Disp.	Bore *Stroke	Fuel Cons.
		Prime KVA	Prime KW	Standby KVA	standby KW	CUMMINS	GODLIKE	STAMFORD	(nos)	(L)	(mm)	(g/kw.h)
1	GDC20*S	20	16	23	18	4B3.9-G1/G2	JDG164D	PI 144D	4	3.9	102*120	215
2	GDC25*S	25	20	28	22	4B3.9-G1/G2	JDG184F	PI 144E	4	3.9	102*120	215
3	GDC30*S	30	24	33	26	4BT3.9-G1/G2	JDG184G	PI 144G	4	3.9	102*120	215
4	GDC40*S	40	32	44	35	4BT3.9-G1/G2	JDG184H	PI 144J	4	3.9	102*120	215
5	GDC43*S	43	34	47	37	4BTA3.9-G2	JDG224C	UCI224C	4	3.9	102*120	215
6	GDC50*S	50	40	55	44	4BTA3.9-G2	JDG224D	UCI224D	4	3.9	102*120	215
7	GDC57*S	57	45	63	50	4BTA3.9-G2	JDG224ES	UCI224E	4	3.9	102*120	215
8	GDC60*S	60	48	66	53	4BTA3.9-G2	JDG224E	UCI224E	4	3.9	102*120	215
9	GDC63*S	63	50	69	55	6BT5.9-G2	JDG224E	UCI224E	6	5.9	102*120	215
10	GDC73*S	73	58	80	64	6BT5.9-G2	JDG224F	UCI224F	6	5.9	102*120	215
11	GDC88*S	88	70	96	77	6BT5.9-G2	JDG224G	UCI224G	6	5.9	102*120	215
12	GDC93*S	93	75	103	82	6BT5.9-G2	JDG224H	UCI274C	6	5.9	102*120	215
13	GDC100*S	100	80	110	88	6BT5.9-G1/G2	JDG274C	UCI274C	6	5.9	102*120	215
14	GDC120*S	120	96	132	106	6BTA5.9-G2	JDG274DS	UCI274D	6	5.9	102*120	215
15	GDC135*S	135	108	149	119	6BTAA5.9-G2	JDG274ES	UCI274E	6	5.9	102*120	215
16	GDC138*S	138	110	151	121	6CTA8.3-G2	JDG274ES	UCI274E	6	8.3	114*135	210
17	GDC150*S	150	120	165	132	6CTA8.3-G2	JDG274E	UCI274E	6	8.3	114*135	210
18	GDC160*S	160	128	176	141	6CTA8.3-G2	JDG274F	UCI274F	6	8.3	114*135	210
19	GDC180*S	180	144	198	158	6CTA8.3-G2	JDG274G	UCI274G	6	8.3	114*135	210
20	GDC200*S	200	160	220	176	6CTAA8.3-G2	JDG274H	UCI274H	6	8.3	114*135	210
21	GDC225*S	225	180	248	198	6LTAA8.9-G2	JDG274J	UCD274J	6	8.9	114*135	197
22	GDC250*S	250	200	275	220	6LTAA8.9-G2	JDG274K	UCD274K	6	8.9	114*135	197
23	GDC250*S	250	200	275	220	NTA855-GA	JDG274K	UCD274K	6	10.8	125*147	200
24	GDC250*S	250	200	275	220	MTA11-G2A	JDG274K	UCD274K	6	10.8	125*147	200
25	GDC275*S	275	220	303	242	NTA855-G1A	JDG314DS	HCI444D	6	10.8	125*147	188
26	GDC300*S	300	240	330	264	NTA855-G1B	JDG314D	HCI444D	6	10.8	125*147	188
27	GDC313*S	313	250	344	275	NTA855-G1B	JDG314ESS	HCI444ES	6	10.8	125*147	188
28	GDC325*S	325	260	358	286	NTA855-G1B	JDG314ES	HCI444ES	6	14.0	140*152	200.2
29	GDC350*S	350	280	385	308	NTA855-G2A	JDG314E	HCI444E	6	14.0	140*152	200.2
30	GDC350*S	350	280	385	308	NTA855-G4	JDG314E	HCI444E	6	14.0	140*152	200.2
31	GDC375*S	375	300	413	330	NTAA855-G7	JDG314FS	HCI444FS	6	14.0	140*152	205.4
32	GDC375*S	375	300	413	330	KTA19-G2	JDG314FS	HCI444FS	6	14.0	140*152	205.4
33	GDC400*S	400	320	440	352	NTAA855-G7A	JDG314F	HCI444F	6	14.0	159*159	205.4
34	GDC420*S	420	336	462	370	NTAA855-G7A	JDG354C	HCI544C	6	18.9	159*159	200.7
35	GDC450*S	450	360	495	396	KTA19-G3	JDG354C	HCI544C	6	18.9	159*159	200.7
36	GDC500*S	500	400	550	440	KTA19-G3A	JDG354D	HCI544D	6	18.9	159*159	200.5
37	GDC500*S	500	400	550	440	KTA19-G4	JDG354D	HCI544D	6	18.9	159*159	200.5
38	GDC550*S	550	440	605	484	KTAA19-G5	JDG354ES	HCI544D	6	18.9	159*159	200.5
39	GDC600*S	600	480	660	528	KTAA19-G6	JDG354E	HCI544E	6	18.9	159*159	208
40	GDC600*S	600	480	660	528	KTAA19-G8	JDG354E	HCI544E	6	18.9	159*159	208
41	GDC625*S	625	500	688	550	KTAA19-G6A	JDG354FS	HCI544F-S	6	18.9	159*159	202
42	GDC625*S	625	500	688	550	KT38-G	JDG354FS	HCI544F-S	6	18.9	159*159	202
43	GDC700*S	700	560	770	616	KTA38-GA	JDG354G	HCI544F-S	12	37.8	159*159	213
44	GDC750*S	750	600	825	660	KTA38-G2	JDG404B	LVI634B	12	37.8	159*159	209
45	GDC800*S	800	640	880	704	KTA38-G2B	JDG404C	LVI634C	12	37.8	159*159	196
46	GDC900*S	900	720	990	792	KTA38-G2A	JDG404D	LVI634D	12	37.8	159*159	196
47	GDC1000*S	1000	800	1100	880	KTA38-G4	JDG404E	HCI 634G	12	37.8	159*159	198
48	GDC1125*S	1125	900	1238	990	KTA38-G9	JDG404F	HCI 634G	12	37.8	159*159	198
49	GDC1250*S	1250	1000	1375	1100	KTA50-G3	JDG404G	HCI 634J	12	37.8	159*159	213
50	GDC1375*S	1375	1100	1513	1210	KTA50-G8	HCI 634J	HCI 634K	12	37.8	159*159	213
51	GDC1500*S	1500	1200	1650	1320	KTA50-GS8	LVI 634G	LVI 634G	12	37.8	159*159	213

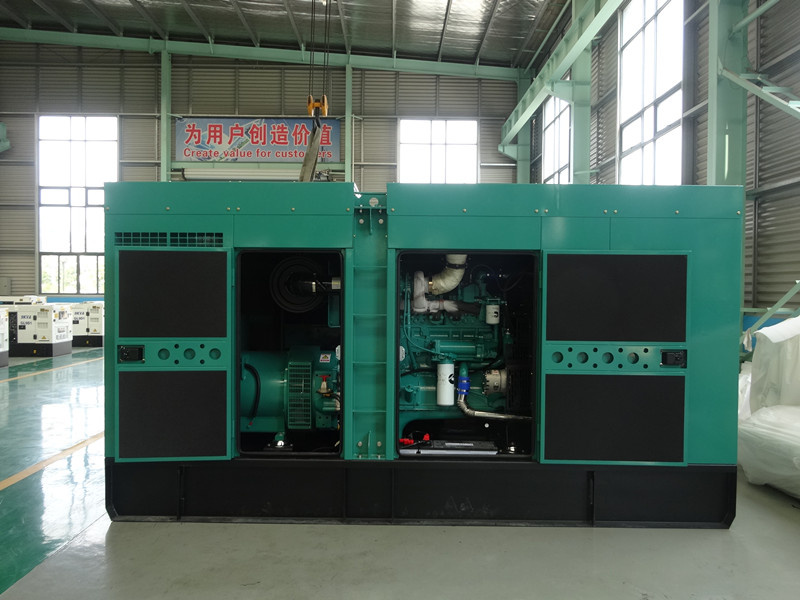

Generator photos:
