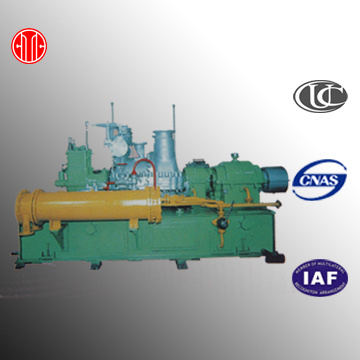

Back pressure steam turbine powered generator 120 T/H steam consumption
Specification
Steam turbine type: Back pressure & condensing & extraction condensing
Range of rated power: 1000kw -50mw
Range of inlet pressure: 0.5 - 8.89 Mpa
Inlet steam temperature: 250 - 535 Celsius Degree
Steam Consumption: 3~260t/H
Range of output rotational speed: 3000, 5600/1500 rpm
Advantages
1. International advanced technology and with more than 40 years military industry background
2. High thermal efficiency
3. Optimized structure
4. Safe & reliable
5. Simple operation
6. Small size
7. Wide range application
8. Can be assembled with Siemens, Stamford or CSIC Generator, etc
Customers we have served
1. Thailand Palm Oil Association
2. Japan Mitsubishi Company
3. Thailand Beststair Company
4. Thailand CP Group
5. Thailand Sakon Nakhon Biomass Power Plant
6. Philippines Lucky PPH International
7. Philippines MR VALE PALILIO
More and more customers are using our steam turbine at present.
Application field
1. Thermal power plant and urban central heating system
2. Coal fire power plant, biomass power plant, residential solar power system
3. Widely applied to waste heat generation in CHP, petroleum, chemical, metallurgy, textile, paper making, brewing, palm oil, refinery industries, cement, incinerator, sugar mill, etc.
4. Motive power source to drag the water pump, fan, compressor, centrifugal compressor
CHTT Company Introduction:
Shanghai Chenghang Turbine Technology Co., Ltd. is a professional steam turbine manufacturer with more than 40 years history. With the output range from 50KW to 50MW, our products includes back pressure turbine, condensing and extraction condensing steam turbine, widely applied in industrial mechanical driving and power generation.
With excellent reputation and strong capability, our steam turbines have been exported globally, including Southeast Asia, Middle East, South America, Africa and many other regions, etc. Our persistent goal is to offer green energy to the world.
Our Services
1. Prompt reply, clear communication and quick response
2. Professional pre-sales consulting and suggestion
3. Experienced engineers and specialists technical support
4. Customized one-to-one steam parameter and real condition design
5. In charge of guidance, supervising and commission
6. Warranty: 18 months from the date of delivery or 12 months after commissioning
7.12 months free maintenance period
8. Sustaining post-sale tracking service
Contact: Rosaline
Cell: +86-18516254069
| CHTT back pressure steam turbine powered generator 120 T/H steam consumption |
| Model | Rated power(kw) | Inlet Steam Parameter | Exhaust Pressure MPa(a) | Rated Speed (r/min) |
| Pressure( MPa) | Temperature
( degree ) |
| B1-3 | 1000-3000 | 0.9-4.9 | 260-435 | 0.1-1.6 | 3000 |
| B3 | 3000 | 1.2-8.89 | 350-535 | 0.29-2.0 | 5600/3000 |
| B4.5 | 4500 | 1.2-8.89 | 350-535 | 0.29-2.0 | 3000 |
| B6 | 6000 | 1.2-8.89 | 350-535 | 0.29-2.0 | 3000 |
| B7.5 | 7500 | 1.2-8.89 | 350-535 | 0.29-2.0 | 3000 |
| B9 | 9000 | 1.2-8.89 | 350-535 | 0.29-4.0 | 3000 |
| B12 | 12000 | 1.2-8.89 | 350-535 | 0.29-4.0 | 3000 |
| B15 | 15000 | 1.2-8.89 | 350-535 | 0.29-4.0 | 3000 |
| B18 | 18000 | 1.2-8.89 | 350-535 | 0.29-4.0 | 3000 |
| B20 | 20000 | 2.3-8.89 | 390-535 | 0.29-4.0 | 3000 |
| B25 | 25000 | 2.3-8.89 | 390-535 | 0.29-4.0 | 3000 |
| B30 | 30000 | 2.3-8.89 | 390-535 | 0.29-4.0 | 3000 |
| B40 | 40000 | 3.5-8.89 | 430-535 | 0.29-4.0 | 3000 |
| B50 | 50000 | 3.5-8.89 | 430-535 | 0.29-4.0 | 3000 |
Shanghai Brilliance General Equipment Co., Ltd. is the foreign trade subsidiary of CITIC HIC Luoyang Generating Equipment Co., Ltd...CITIC HIC Luoyang Generating Equipment Co., Ltd. Was established in 1971 with strong research and design capabilities as well as advanced machining center and experimental equipment. Specializing in manufacturing the whole set steam turbine and generator set, we have passed the ISO 9001 certification.
There are over 760 employees, including 151 technical engineers and 22 technicians combined with over 40 foreign trade staffs in Shanghai subsidiary. There are 500 units main processing equipment, with 60 precision equipments; More than 20 CNC equipments; And 4 blade machining centers. All of these guarantee our quality-control capability in every production process.
For over 40 years, our steam turbines have been sold all over the country, and exported to Asia, Africa, South America, and Eastern Europe.
Now, we specialize in the researching and manufacturing power generation steam turbine and dragging-type steam turbine ranges 1-60 MW, including Condensing, Back Pressure, Extraction Condensing types, serving for many different industries like Textile, Chemical, Paper making, Food & Sugar, ects. The company mainly engages in the development of various types of waste heat energy project.
We can provide turnkey service including project design, production, construction, installation, and adjustment, which helps our customers accomplish the whole project with least time and concentration. 18months warranty is guaranteed with in-time after service.
We are dedicated to serving our customers with our best effort!
