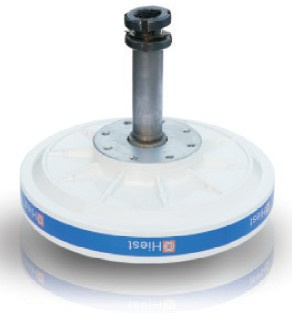

Axial Flux Permanent Magnet Generator (QM-AFPMG 260-0.2kW/200RPM)

Axial Flux Permanent Magnet Generator (QM-AFPMG 260-0.2kW/200RPM)
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
QM has developed a series of new energy high-efficient, disc-shaped, inner (outer) rotor, three-phase, Axial Flux Permanent Magnet Generator (AFPMG) with a coreless (ironless) stator.
AFPMG with high specific power and coreless stator is characterized by the following

Advantageous features

1. High efficiency: No mechanical drive losses, no rotor copper losses due to the permanent magnet excitation and no stator eddy current losses in the ironless(coreless) stator
2. Small size, small weight: Plastic or epoxy resin stator core
3. No cogging torque, low starting torque,
4. Low noise, less vibration, long life
5. Direct drive, no gearbox, oil-free system, smooth operation
6. High cooling effect, low temperature rise

Main applications

1. Small electrical generators driven by gasoline or diesel engines,
2. Small wind generators,
3. Electric vehicle drive machines, as motor and generator.
Application of AFPMG offers an alternative solution in the sphere of electrical generators or electrical machines in general. Their disc-shaped construction and advantageous electromechanical characteristics represent the main features in alternative electrical energy production and in high efficient electric drive systems.
QM has made the next significant step in the research and development field of new concepts of electrical machines. The new developed AFPMG has placed the guidelines in a field of research of axial-flux electrical machines, especially in the area of alternative drives for electric vehicles.

Our AFPMG range

Rated power: 100W-10KW
Rated speed: 60-1200RPM
Rated voltage: 14VDC-400VAC
Generator outer diameter: 110-770mm

Checklist Category

1. Dimension and tolerances
2. Output power, Voltage and RPM
3. Insulation resistance examination
4. Starting torque
5. Output wire (Red, white, black, green/earth)
No. parameter Unit Data
1 Rated  output  power KW 0.2
2 Rated  speed RPM 200
3 Rated  output  voltage V 28VDC
4 Rated  current A 5.2
5 Efficiency   > 85%
6 Winding  type   Y
7 Insulation  resistance   100Mohm  Min(500V  DC)
8 Voltage  withstand ma < 5  ma
9 Start  torque Nm < 0.1
10 Temperature  rise Degree Centigrade < 80
11 Max.   working  temperature Degree Centigrade < 120
12 Generator  diameter mm 260
13 Shaft  diameter mm 30
14 Housing  material   Aluminum  Alloy
  15 Shaft  material   Steel
  16 Bearing   NSK  or  SKF
  17 Weight Kg 11
Prod Model: 0.2kW/200RPM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotating Shaft: Customer Required
Number Of Blade: Customer Required
Stress Way Of Blade: Customer Required
QM has recruited a technical team and all of team members are Professor-grade Engineers on Permanent Magnet Generator(Alternator) field. After rising the found as much as one hundred million RMB, QM has been building a new Axial Flux Permanent Magnet Generator(Alternator) factory for magnets, Permanent Magnet Generator(Alternator), Axial Flux Permanent Magnet Generator(Alternator) and Vertical Axis Wind Generator with exceed 400 employees.

The magnets of all our Permanent Magnet Generator(Alternator) are made of NdFeB which produced by us from 1996. The specific rotor and stator of our permanent magnet generator(alternator) for wind power and hydraulic power systems are designed in a way which is high generating efficiency as high as exceed 85%(Axial Flux Permanent Magnet Generator(Alternator)), light weight as light as 5.8kg for 0.1kW Axial Flux Permanent Magnet Generator(Alternator) and low starting torque as low as 0.1NM, appealing appearance, easy installation and higher electric performance and use performance than the kind of other products(RFPMG).

Under the tenet "Credit, Respect, Excellence and Share" and marketing belief "Quality is the basis of existence Basis, a Science & technology are the road of development", QM is devoted to development of wind energy and building international relationship with customers who intent to develop green and renewable power.

Exepet Permanent Magnet Generator(Alternator) and magnets production. Our direct drive Vertical Axis Wind Turbine(1-5KW VAWT), are all 50RPM direct drive, Horizontal Axis Wind Turbine(1-50KW) have special design; Controller/Inverter system is credible and professional, most of all, our Wind turbine generator is quite special(Direct drive), also we can supply wind turbine with gearbox)

All of QM's products are tested strictly before shipment with the most advanced equipment in order to make sure the quality of our products and our brand 'QM' for permanent magnets generator(alternator).

QM has UL1741, AS4777, CE, G83, RoHS, ISO14001, ISO9001 certificates, specialized in green and renewable energy industry with bright prospect, We would like to cooperate with the friends from all over the world and give green brightness to every friend who cares about environmental protection type new energy. Every friend from all circles to QM would be welcomed for visit, instruction and business negotiation.
