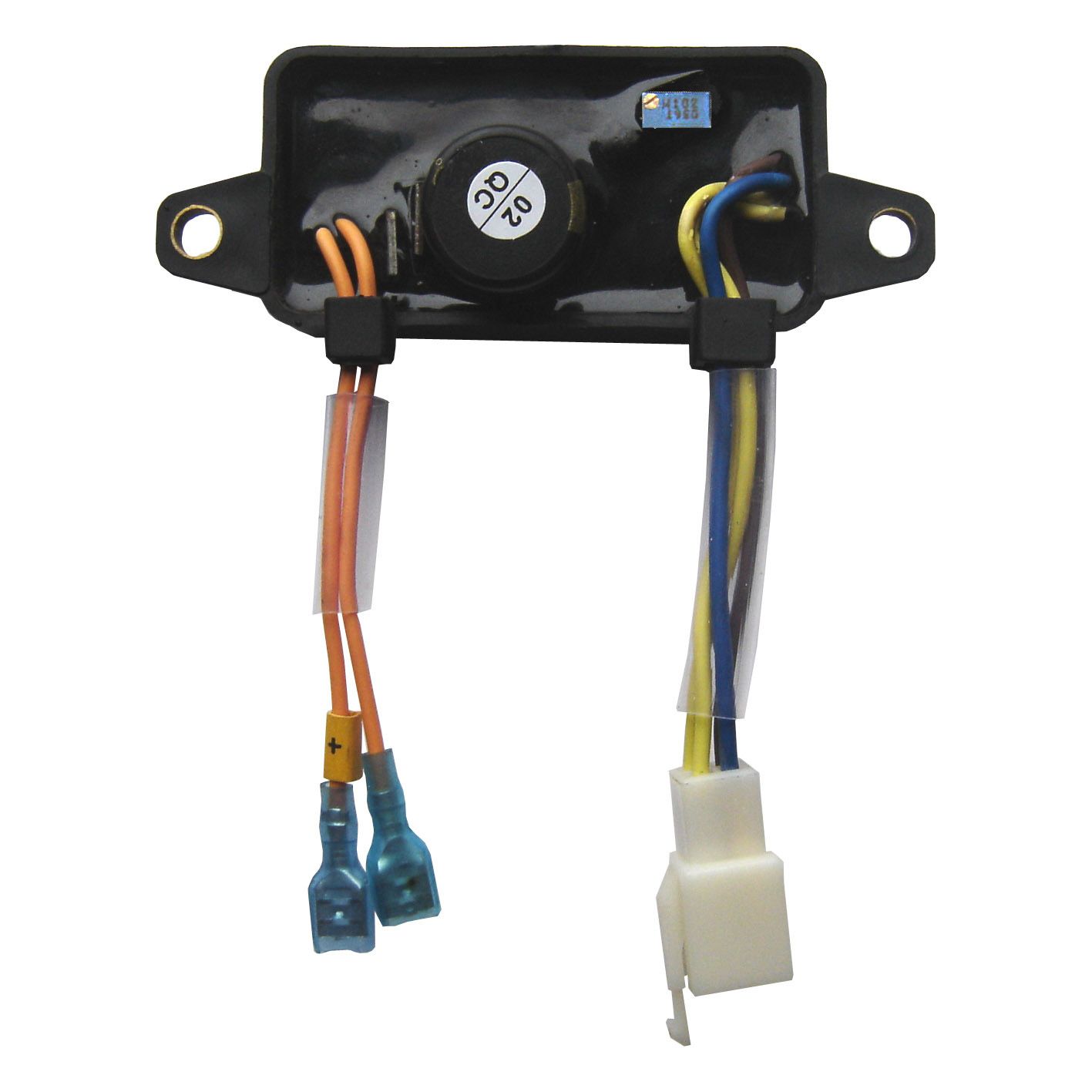

AVR (Automatic Voltage Regulator) Gas Generator Part &Accessories, Use For Honda GX160/168F. Genuine Parts, Quality Guaranteed By KINGMOTO.
Power: (MD2-SP2G).
Features:
< 2% Regulation;
For Use In 50/60Hz Generator;
Adjustable Output Voltage;
Single Phase Voltage Sensing;
Economical Compact Design;
Compatible with Many Different Models By Adapter Plug.
Specifications:
Sensing Input Voltage 16~22VAC 1 Phase 2 Wire;
Power Input Voltage 60~100VAC 1 Phase 2 Wire;
Excitation Output Voltage 5~85VAC, Current Continuous 3A, Intermittent 4A For 60 Sec, Resistance Min 25Ω ;
Voltage Regulation < 2%(Within 4% Engine Goveming)
Voltage Build Up Residual Volts At AVR Terminal >1VAC
Voltage Adjust Range 110/220VAC(-15%~+15%)
Thermal Drift 0.05%Per temperature Change In AVR Ambient
Environment:
Vibration 1.5G@5~30Hz 5.0G@30~500Hz
Relative Humidity < 95%
Operating Temperature -40~+60 temperature
Storage Temperature -40~+85 temperature.
Kingmoto machine (yuhuan. China) manufactory is building in 2002 and especially produce the the generator parts and the automobile parts for ten year.
Under my factory's name, the ZH'trademark and the KINGMOTO' had a good reputation for the domestic and foreign'client.
we insist on to satisfy the clients'requirement for the guidelines, through continuous technical improvement, Mining production potential, set up the business enterprise brand, we firmly believe "DO BY HEART-----QUANTITY / SERVICE / BRAND".
