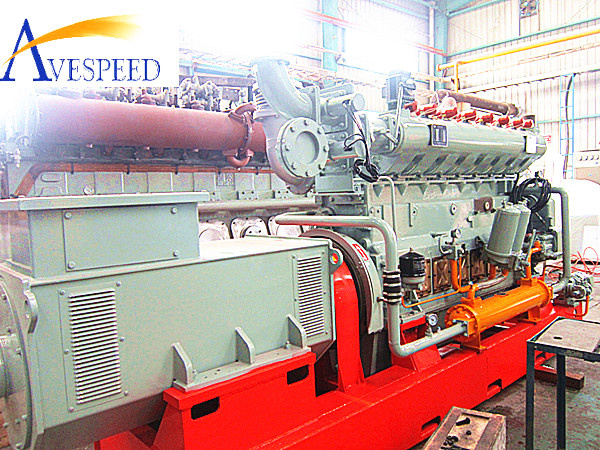

AVESPEED series green energy with power generator gas(natural gas, biogas, coal gas, biomass, landfilled gas, LPG, associated gas) Generator set
1. Featured with quick startup, simple operation, fine quality
2. Low cost, economical effciency and complete protective function, etc
3. Efficient Long service intervals,
Maintenance-friendly engine design
4. And low fuel consumption
5. Ensure maximum efficiency continuous
Durable Our dedication and commitment to
Product development ensures
Prolonged life time of
All engine components,
Even when using polluted fuel
Gases such as refinery gas
Reliable The refined and optimally
Designed control and monitoring
System results in ideal
Preventive maintenance and
Leads to maximum operational
Safety and availability
Natural gas should be
CH4≥ 70%; Low calorific value≥ 32MJ/ Nm3; H2S≤ 50mg/Nm3
Sulfur≤ 480mg/Nm3; Granule≤ 5μ M; Granule≤ 30mg/Nm3, None moisture
400GF1-T Gas pressure: 30kPa~300kPa
500 GF1-RT Gas pressure: 80kPa~300kPa
600GF1-RT Gas pressure: 100 kPa ~300 kPa
Associated gas should be purified before burning in engin Pressure: 100~300kPa; CH4 70%, Low calorific value 32MJ/ Nm3; None light oil
1000GF1-RT Natural Gas Genset 1250KVA/1000Kw 400V/50HZ
| Description/Genset Type | 120GF153-T | 260GF1-RT | 400GF-PT | 500GF1-RT | 600GF1-RT |
| Electrical Output ( kW ) | 120 | 260 | 400 | 500 | 600 |
| Voltage ( V ) | 400 | 400 | 400 | 400 | 400 |
| Engine Type | T4190ZL | T6190ZL | TP12V190-2A | T12V190ZL-2 | T12V190ZL-2A |
| Aspiration | Naturally
Aspirated | Turbocharged
Inter cooled | Naturally
Aspirated | Turbocharged
Inter cooled | Turbocharged
Inter cooled |
| Arrangement of cylinder | 4 – In Line
4-Stroke-Cycle | 6- In Line
4-Stroke-Cycle | V – 12
4-Stroke-Cycle | V – 12
4-Stroke-Cycle | V – 12 4-Stroke-Cycle |
| Bore/Stroke (mm) | 190/210 | 190/210 | 190/210 | 190/210 | 190/210 |
| Engine Speed (rpm) | 1000 | 1000 | 1000 | 1000 | 1000 |
Fuel Consumption
(MJ/kWh) | 11.25 | 12.50 | 14.00 | 11.20 | 11.00 |
| Exhaust temp. ( centigrade ) | ≤ 550 | ≤ 550 | ≤ 550 | ≤ 550 | ≤ 550 |
| Ignition mode | Spark-Ignited | Spark-Ignited | Spark-Ignited | Spark-Ignited | Spark-Ignited |
| Starting Mode | 24V DC Power | 24V DC Power | 24V DC Power | 24V DC Power | 24V DC Power |
| Total Displacement (Lit) | 23.80 | 35.70 | 71.45 | 71.45 | 71.45 |
| Insulation | Class F | Class F | Class F | Class F | Class F |
| Excitement | Brushless excited | Brushless excited | Brushless excited | Brushless
excited | Brushless
excited |
| Length (mm) | 4010 | 4650 | 5925 | 5357 | 5357 |
| Width (mm) | 1600 | 1970 | 1970 | 1970 | 1970 |
| Height (mm) | 2030 | 2170 | 2458 | 2690 | 2689 |
| Weight(kg) | 6100 | 8000 | 12500 | 12500 | 13000 |
