Avespeed Series 640kw Diesel Power Generator
| Price: |
US $ 2960-247800set/sets |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set/sets |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
AVESPEED series 640KW diesel power generator

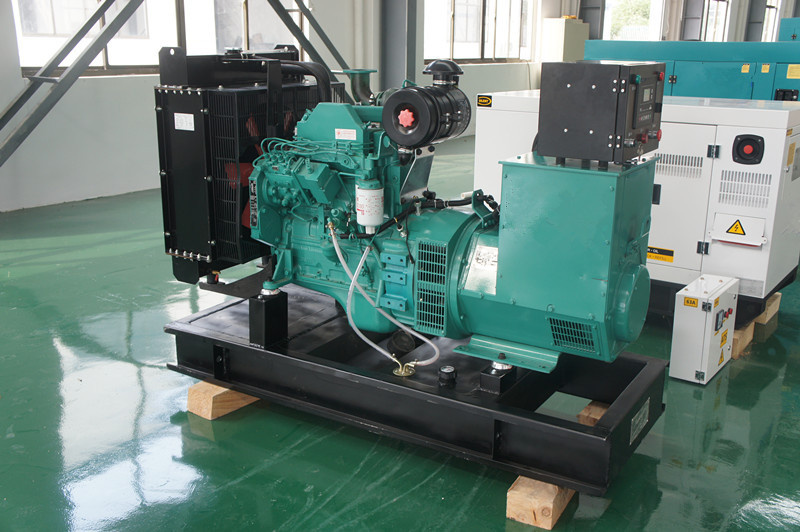

Standard Features All generator set comply with international design and quality standards, such as ISO8528(GB/T2820-97), ISO3046, BS.EN60034, BS5000, IEC34-1, GB755, VDE0530, CSA22-2, AS1359, and so on.Engine and alternator coupled with the compact base of structure steel, equipped with exhaust silencer and radiator. SWT designed controller IS900 and multiple circuit breaker as a standard configuration for single unit. One year limited warranty covers all systems and components.
>>Prime power(Unlimited Time Running)
This rating is applicable for supplying electrical power in lieu of commercially purchased power. Variable load should not exceed a 70% average of the prime power rating during any operating period of 250 hours, The total operating time at 100% prime power shall not exceed 500 hours per year and this model can supply 10% over-load power for 1 hour in 12 hours.
>>Standby power
There rating should be applied where reliable utility power is available. A standby rated engine should be sized for a maximum of an 80% average load factor and 200 hours of operation per year. No overload capability is available for this rating.
Model
Engine Specification | KTA38-G2B |
| BASIC TECHNICAL DATA |
| Manufacturer | CCEC(Cummins) |
| Engine type | 4-cycle,T=turbocharged, -/A=- /water-air after-cooled |
| Cylinder arrangement | 12cylinders,Vee 60 ° |
| Bore and stroke(mm) | 159 × 159 |
| Compression ratio | 14.5:1 |
| Displacement(L) | 38.0 |
| Estimated total weight (dry)(kg) | 3719 |
| Engine rated speed(rpm) | 1500 |
| Prime power(kW).gross | 711 |
| Standby power(kW).gross | 789 |
| EXHAUST SYSTEM |
| Air intake flow(L/sec).rate | 926 |
| Exhaust flow ( L/sec ).rate | 2600 |
| Exhaust temperature | 490 |
| Max. back pressure(kpa) | 10 |
| Diameter of exhaust pipe (mm) | 152 |
| COOLING SYSTEM |
| Coolant capacity(only engine)(L) | 124 |
| FUEL CONSUMPTION |
| Standby power(L/h) | TBD |
| 100% prime power(L/h) |
|
| 75% prime power(L/h) |
|
| 50% prime power(L/h) |
|
| LUBRICATION SYSTEM |
| Oil pan capacity(L) | 135 |
| ELECTRIC SYSTEM |
| Governor type | Electronic |
| Starter motor | 24V |
| Battery charging system | 35A |
| Prod Model: |
AVE-C640GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Key Word: |
Generator |
| Gen-Set Model: |
Cc880s |
| Prime Power(Kw/kVA): |
640/800 |
| Standby Power(Kw/kVA): |
704/880 |
| Engine: |
Kta38-G2b |
| Alternator: |
Hci634h |
| Engine Rated Speed(Rpm): |
1500 |
| Frequency And Speed: |
50Hz,1500rpm |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
