Avespeed Green Energy with Biomass Fuel Power Plant

Avespeed Green Energy with Biomass Fuel Power Plant
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

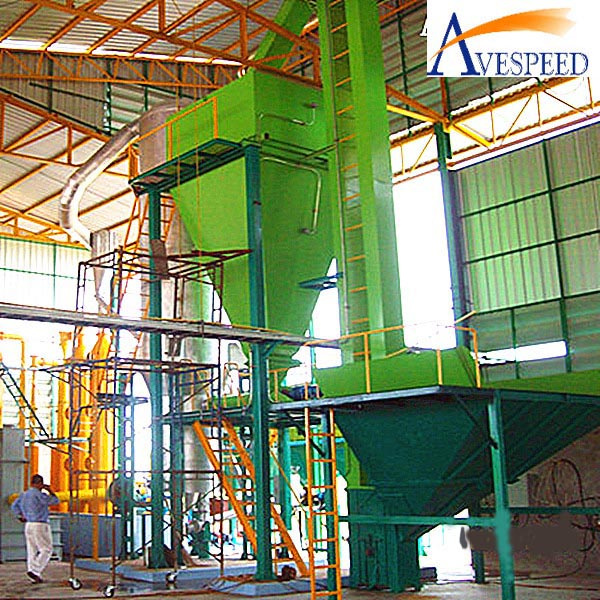

Avespeed Green Energy with biomass fuel power plant (biomass gasification with Firewood, charcoal, crop residues, animal manure )
Brief introduction of our technology:
Power generation by using biomass gas from rice husk, wood chips, saw dust and crop stalks can not only save expenditure in electricity tariff in the production cost of rice mills and timber processing mills, but also can bring about benefits by means of selling surplus electric power to the power grid. As the higher conversion efficiency of the equipment, by taking rice husk as an example, each KWH power generation consumes only 1.6~1.8kg of rice husk. If using wood dust or crop stalks as fuel, the unit consumption of the fuel will be still lower. Water used for gas cleaning and cooling can be used in a circulating way after it is treated through water treatment facilities, such as a sediment pond without environmental pollution and we need only some amount of making-up water. The water pond for each unit of 2000kw power plant covers only an area of about 500m2. The engines and generator, electrical equipment should be arranged indoor, but other equipment can be arranged outdoor. The area of building for each 2000kw generator unit is approximately 400~500m2. The rate of self-consumption of power for the complete set of equipment is very low-only 5~8% of the generated power. Therefore, such a project is an ideal one with significant benefits for the area, where a lot of is discarded biomass resources, but is short of electric power supply or with higher electricity tariff. In general, the investment for major equipment can be recovered from power generation benefits within first two years. The equipment can be operated safely, easy operation and low maintenance cost.

Project Advantages

1. As customer's request, we can adopt the most advanced technology of detaring and dust- removing device in the world. Compared with other manufactures in both home and abroad, we have obvious advantages in better treatment efficiency in gasification and ash removal. And we also have our unique technology in waste water treatment due to our more than 20 years rich experience in waste oil and water treatment, which can may our customer worry nothing about the environmental protection issue, especially in EU countries.

2. As shown in our catalogue, our technology is combination of the most advanced fluid-bed gasification system in the world with our patent works in oil/gas technology. We've got multi-stage(9 stages) cooling and cleaning process to make the tar as less as we can, which can meet the requirement of any gas engine in the world, including the famous western gas engine. To other manufacturers, they can normally make the tar less than 23mg/Nm3, but we can make it less than 15mg/Nm3. Besides that, our gasifier system can also enjoy high gasification efficiency and less fuel consumption. Finally, we can help you make fully use of the residue of your feedstock, which will be another locative business.
Type ParameterLHC-200LHC-300LHC-400LHC-500LHC-600LHC-800LHC-1000LHC-2000
Generator rated output power(kw)20030040050060080010002000
Production volume of biomass gas(Nm 3 /hr)8001150150019002250300036506000
Gas temperature of gasification furnace outlet(   degree celsius )700~800700~800700~800700-800700~800700~800700~800700~800
Gas temperature of the outlet after cleaning and cooling (   degree celsius )

< 45
Consumption of biomass fuel(ton/hr)0.3~0.360.45~0.540.6~0.720.75-0.90.9~1.081.2~1.441.5~1.82.6~3.6
Volume of circulating water flow(m 3 /hr)6~89~1212~1517-1918~2324~3030~3760~75
Gross weight of gasification furnace(ton)21.823.426.72830.834.838.790
Ash removing manner

Dry type(Screw-conveyer collection & discharge)
Device of gas cleaning & cooling system

Cyclone Separator x 2+Spray scrubber x 2+ Venturi scrubber x2+Spray scrubber+Spray
Filter(removing dust, tar and cooling)+ Roots Balower+Alkali water washer gas-water Separator

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Biomass Gasification Power Plant: Biogas Genset
Power: 1000kw
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
