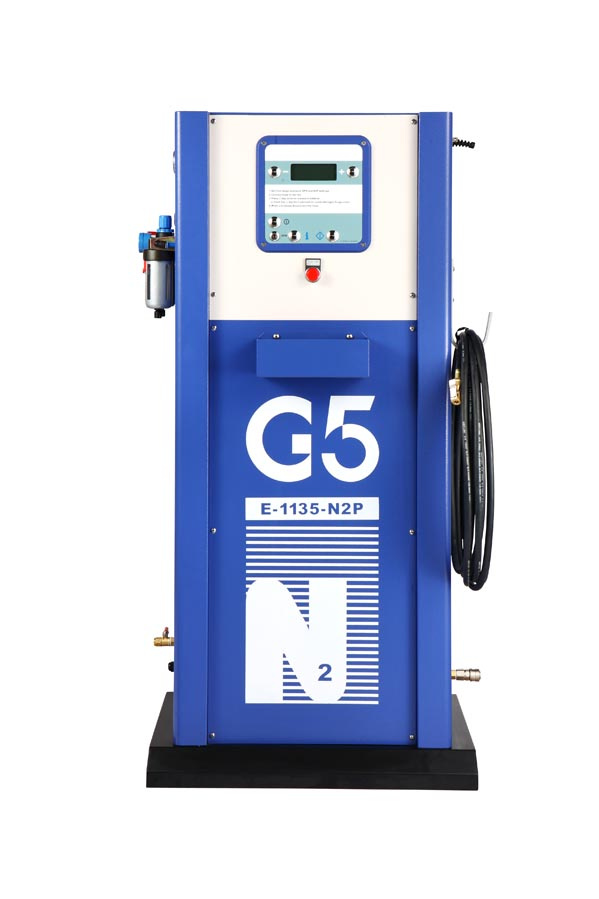

Automatic Nitrogen Inflator

Automatic Nitrogen Inflator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union
Main Features

1. Converts the tyre to Nitrogen at the touch of a button **

2. Auto-Start Inflation *

3. Over Pressure Setting (OPS)

4. Single Tyre Application

5. Suit for: Motorcycle, Car, Light Truck

Technical Data Summary
Dimensions (Height*Width*Depth)

1255mm*700mm*435mm

49.4''*27.6''*17.1''
Net Weight 87kg/191.8lbs
Gross Weight 104kg/229.3lbs
Packing Size(Height*Width*Depth)

1380mm*730mm*510mm

54.3''*28.7''*20.1'''
Power Requirement 100-240VAC 50/60Hz
Power Consumption 30VA
Operating Temperature Range -20/-4° F to 70 / 158° F
Compressed Air Input Range 87-123PSI/6-8.5bar /600-850kPa
Nitrogen Purity 95-99+%
Nitrogen Output 58L/min(2.0cfm)@116PSI/8bar/800kPa
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa
Specifications

1. Generates nitrogen from your compressed air

2.2 Pre-Filters

3.50L/13.2gal (us) internal nitrogen storage tank

4. Auto-start inflation

5. Automatic zero drift adjustment

6. Remain at last setting

7. Audible and visual end of the cycle signal indicators

8. Self-diagnostic features

9. Vandal resistant mechanical switches

10. Large backlight LCD display

11.1 Nos. *10M/32.8ft standard hose with single clip-on open type chuck

12. Comprehensive diagnostics and error reporting

13. Nitrogen purge and fill cycle (N2P)

14. Nitrogen purity test port

15. Adjustable over pressure setting (OPS)

16. Adjustable number of cycles

17. Adjustable lower purge pressure limit

18. Auto Shut-Off

19.1Nos Nitrogen Outlet to connect the unit and your tyre inflation gun

Operation Steps

1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.

2. Connect air hose to tyre valve stem.

3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once.

FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P".

4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
Prod Model: E-1135-N2P
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue
We Zhuhai EST Corporation is specialized in manufacturing Nitrogen Tyre Inflation System and Automatic Air Tyre Inflator with brand name of G5.
EST Corporation is one of the earliest PSA Nitrogen Tyre Inflation System manufacturer in the global market. EST Corporation is the technical leader in this industry.

There are more than 30, 000 clients in over 60 countries using G5 Nitrogen Tyre Inflation System throughout the world.

Our monthly production capacity in our 6, 000m2 factory reaches 800 Nitrogen Tyre Inflation Systems and 1000 Automatic Air Tyre Inflators.

Constantly Innovation, Enhance Versatility, Superior Performance are reflected in our products. We warmly welcome you, our esteem customers to place us G5-branded order or OEM and ODM orders.
