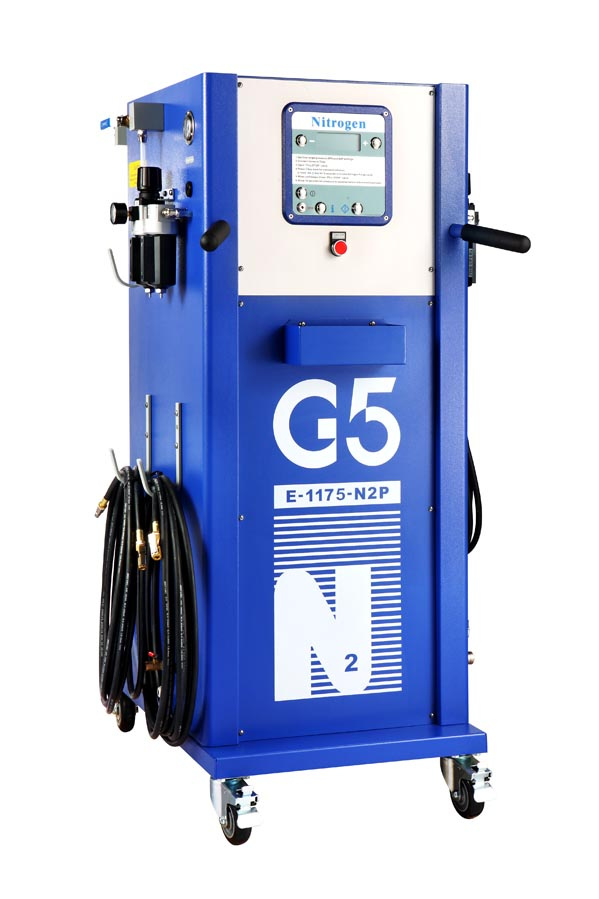

E-1175-N2P Nitrogen Generator Main Features:
High Output, can inflate a 12.00R22.5 tyre from zero to 120PSI/8.2bar/820kPa in only 2.9 minutes
Converts up to 6 tyres to Nitrogen simultaneously at the touch of a button **
Fully automated, fully programmable, micro-processor controlled conversion system
Suit for: Car, Light Truck, Bus
Suit for: Painting *
E-1175-N2P Technical Data Summary
Dimensions/Weight Main Body Tank
Height 1310mm/51.6" 1100mm/43.3"
Width 730mm/28.7" 400mm/15.7"
Depth 1000mm/39.4" 400mm/15.7"
Net Weight 323kg/712.5lbs 38kg/83.8lbs
Gross Weight 362kg/798.5lbs 42kg/92.6lbs
Packing Size Main Body Tank
Height 1450mm/57.1" 1180mm/46.5"
Width 730mm/28.7" 440mm/17.3"
Depth 1050mm/42.9" 440mm/17.3"
Power Requirement 100VAC/240VAC 50/60Hz,
Power Consumption 110VA
Operating Temperature Range -20C/-4° F to 70C / 158° F
Compressed Air Input Range 145-217PSI/10-15bar /1000-1500kPa
Compressed Air Input Flow 1800L/min (62.4cfm)
Nitrogen Purity 95-99+ %
Nitrogen Output 508L/min (17.9cfm ) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank
145-174PSI/10-12bar/1000-1200kPa Adjustable
Operating Range 5-162PSI/0.3-11.2bar/35-1120kPa
Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa
Nitrogen Purges 0-9
Inflator Accuracy ± 1PSI/0.07bar/7kPa
Resolution 1PSI/0.1bar/5kPa
Units of Measurement PSI/bar/kPa
E-1175-N2P Specifications:
1. Generates nitrogen from your compressed air
2.2*2 Pre-Filters
3.118L/31.1gal (us) external nitrogen storage tank
4. Auto-start inflation
5. Automatic zero drift adjustment
6. Remain at last setting
7. Audible and visual end of the cycle signal indicators
8. Self-diagnostic features
9. Vandal resistant mechanical switches
10. Large backlight LCD display
11.4 Nos. *8M/26ft standard hoses with single clip-on closed chuck
12. Comprehensive diagnostics and error reporting
13. Nitrogen purge and fill cycle (N2P)
14. Nitrogen purity test port
15. Adjustable over pressure setting (OPS)
16. Adjustable number of cycles
17. Adjustable lower purge pressure limit
18.6 air outlets allow simultaneous inflation of up to 6 tyres
19. Auto Shut-Off
20.1Nos Nitrogen Outlet to connect the unit and your tyre inflation gun/your spray gun
21. Panel Mount Nitrogen Percentage Indicator - supplied separately
E-1175-N2P Operation Steps:
1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.
2. Connect air hose(s) to tyre valve stem(s).
3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once.
FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P".
4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
We Zhuhai EST Corporation is specialized in manufacturing Nitrogen Tyre Inflation System and Automatic Air Tyre Inflator with brand name of G5.
EST Corporation is one of the earliest PSA Nitrogen Tyre Inflation System manufacturer in the global market. EST Corporation is the technical leader in this industry.
There are more than 30, 000 clients in over 60 countries using G5 Nitrogen Tyre Inflation System throughout the world.
Our monthly production capacity in our 6, 000m2 factory reaches 800 Nitrogen Tyre Inflation Systems and 1000 Automatic Air Tyre Inflators.
Constantly Innovation, Enhance Versatility, Superior Performance are reflected in our products. We warmly welcome you, our esteem customers to place us G5-branded order or OEM and ODM orders.
