PRODUCT DETAILS

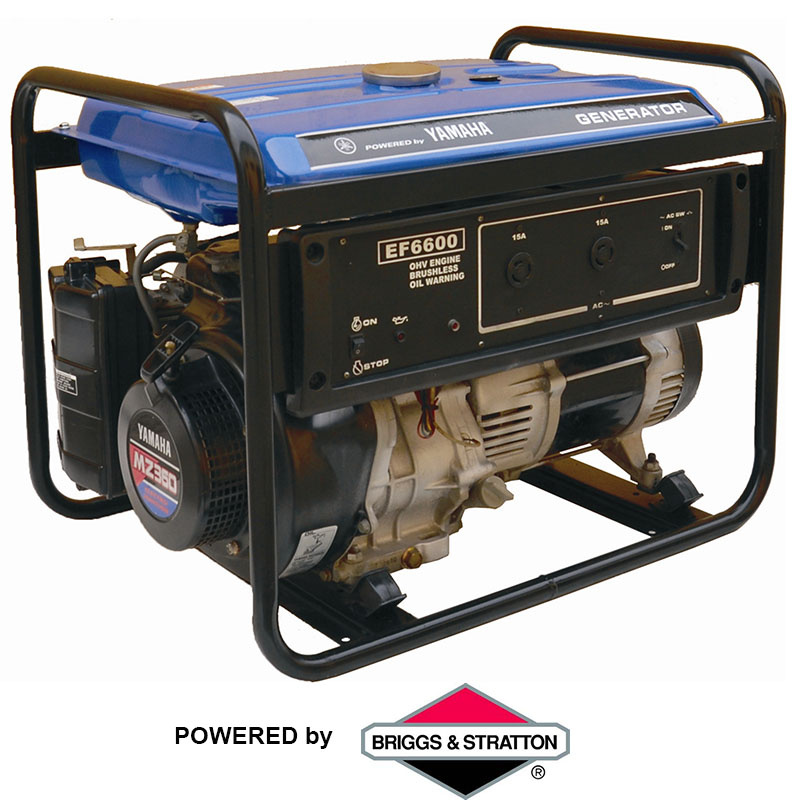

Automatic New Design Gasoline Generator
| MODEL | EF2600 | EF5200 | EF6600 |
| Type | 1-Cylinder, Air-cooled, 4-Stroke, OHV | 1-Cylinder, Air-cooled, 4-Stroke, OHV | 1-Cylinder, Air-cooled, 4-Stroke, OHV |
| Displacement | 171cc | 357cc | 357cc |
| Rated Output | 2.7kw/3000rpm, 3.3kw/3600rpm | 5.9kw/3000rpm, 7.1kw/3600rpm | 5.9kw/3000rpm, 7.1kw/3600rpm |
| Bore x Stroke | 66mm x 50mm | 85mm x 63mm | 85mm x 63mm |
| Start Mode | Recoil | Recoil | Recoil |
| Fuel | >=90#Unleaded Gasoline | >=90#Unleaded Gasoline | >=90#Unleaded Gasoline |
| Fuel Tank Capacity | 12L | 21L | 12L |
| Noise Level (dB(a)/7m) | 65/67 | 72/74 | 72/75 |
| Model Code | JL 166F | JL 185F | JL 185F |
| Max. Output | 2.3kVA/2.5kVA | 4.5kVA/5.2kVA | 5.5kVA/5.7kVA |
| Rated Output | 2.0kVA/2.2kVA | 3.8kVA/4.8kVA | 5.0kVA/5.5kVA |
| Rated Current | 9.1A; 18.3A/9.2A | 20.4A; 40.0A/20.0A | 22.7A; 45.8A/22.9A |
| Rated Voltage | 220V; 120V/240V | 220V; 120V/240V | 220V; 120V/240V |
| Rated Frequency | 50Hz / 60Hz | 50Hz / 60Hz | 50Hz / 60Hz |
| Generator Type | Brushless, Single Phase | Brushless, Single Phase | Brushless, Single Phase |
| G.W. | 42KG | 78KG | 88KG |
| N.W. | 40KG | 72KG | 82KG |
| Net Dimension LxWxH | 510x415x425mm | 670x510x510mm | 670x510x510mm |
| Overall Dimension LxWxH | 520x430x455mm | 693x535x615mm | 693x535x615mm |
| 20' FT | 282 units | 105 units | 105 units |
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.
BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable.
BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc.
Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc.
Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
