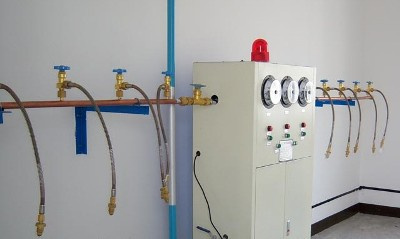

Automatic gas manifold consists of a manual gas manifold and an auto-control cabinet which maintains automatic switch between two gas sources through pressure difference between the two gas sources.
Automatic gas manifold also has manual-switch device so that when the auto control cabinet cannot work properly, the gas supply is not interrupted.
Detailed information
*Specially designed for automatic switch between two gas sources and is used for refilling gas.
*Designed with pressure-reduce device which maintains a stable output pressure and an emergency outlet which opens when the pressure is too high.
*Both audio and light alarms turn on automatically when one of the gas sources is used up.
*Designed with a pressure gauge which shows clearly the pressure of each gas source and the total pressure at the outlet.
*A filter device screens out all the impurities in the gas sources.
*The whole system has successfully undertaken pressure tests.
*It can be applied in handling the following gases: O2, N2O, N2 and CO2.
*In strict accordance with Q/SVDQ 01-2005 standard (Chinese ) and IEC 601-4(Medical system) standard (international).
Technical Index
*Rated input pressure: 15MP
*Working output pressure: P2: 0.6Mpa ( adjustable from 0 to 0.6 Mpa)
*Rated flow: 30m^3/h
ningbo jzk medical equipment co., ltd. the iso9001: 2000 certificated company in china, is a professional manufacturer of medical equipments.
we produce:
ceiling medical pendants: surgical pendants, anaesthesia pendants, endoscope pendants, icu pendants, etc.;
medical gas outlets: for metric, german (din), british (bs), french (afnor), american (ohmeda, diss, chemetron, puritan-bennett) standards;
bed head units / head walls;
oxygen flowmetrs and suction units;
medical gas valves, medical gas pipelines;
medical gas controlling systems;
medical gas manifolds: manual, semi-automatic, automatic models;
nurse calling systems;
ceiling mounted transfusion track systems;
pvc handrails and pvc wall corner guards;
medical compresessed air systems;
medical vacuum systems;
stainless steel medical furnitures for operating theatres;
as the chinese manufacturer, ningbo jzk medical equipment co., ltd. sell the products in chinese market. also, we devote ourselves in making the chinese medical equipments to server for the health globally. now, we have exported our products to more than 20 countries.
