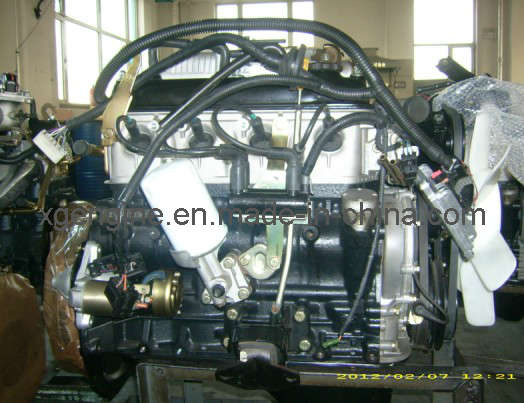

Toyota 4Y(Can used for Toyota 7 & 8 series lift)
Engine 4Y
Model 4 stroke
Water-cooling
Cyl in-line
SOHC
Ignition Distributor
Cylinder 4
Bore(mm) 91
Stroke (mm) 86
Combustion Chamber Cuniform
Cylinder Liner No
Displacement (L) 2.236
Compression Ratio 10.5
Dimension (mm) 750X543X625
Valve&Seat Material Hard
Rated Power for Gasoline(kw/h/rpm) "64/4600
(86HP)"
Max Torque for Gasoline(N@M/ rpm) 190/3000
Net Weight(kg) 153
Our company is a professional manufacturer of auto engines and engine parts in China, with the mainly products, cylinder heads, long blocks and auto engines. We have passed ISO/TS16949
|
Engine |
4Y |
|
Model |
4 stroke |
|
Water-cooling |
|
Cyl in-line |
|
SOHC |
|
Ignition |
Distributor |
|
Cylinder |
4 |
|
Bore(mm) |
91 |
|
Stroke (mm) |
86 |
|
Combustion Chamber |
Cuniform |
|
Cylinder Liner |
No |
|
Displacement (L) |
2.236 |
|
Compression Ratio |
10.5 |
|
Dimension (mm) |
750X543X625 |
|
Valve& Seat Material |
Hard |
|
Rated Power for Gasoline(kw/h/rpm) |
64/4600
(86HP) |
|
Max Torque for Gasoline(N@ M/ rpm) |
190/3000 |
|
Net Weight(kg) |
153 |
Our company is a professional manufacturer of auto engines and engine parts in China, with the mainly products, cylinder heads, long blocks and auto engines. We have passed ISO/TS16949: 2002.
We cooperated with other company, produced B3\G4EA\G4ED engines for KIA PRIDE and KIA RIO as OEM plant. Under the ability of OEM plant for international brand, it will be reliable quality of our products.
We have good-part-supplier system and quality guarantee to meet the requirements of the customers.
We would like to provide our best management, best quality and service to our customers.
