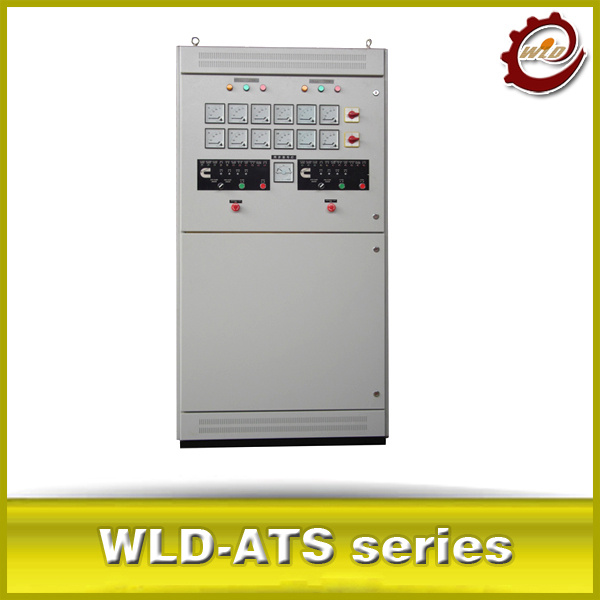

ATS (Automatic Transfer System)
Automatic Transfer System together with diesel generator set are used as emergency power supply. Providing a power outage, then within 6-10 seconds, the power can be resupplied by the ATS. On the other hand, important load for illumination, lift and fire fighting equipment will automatically switch to the generator set.
Besides, ATS is one of the most important power supply equipments for hospitals, telecommunications, airports, banks, hotels etc.
Other producats of generator we can offer:
As a 19-year generators manufacturer, We can provide Diesel Generator Set, Portable Gen-sets, Silent Generator, Electric Generating sets, Natural Gas Genset under the famous brand of CUMMINS, DEUZT, CATERPILLAR, SHANGCHAI(SEDC), YUCHAI, with power ranging 0.65-3000kVA. AC alternator under the brand of STAMFORD, MARATHON, FARADAY and Siemens. We also offer generator spare parts for SFH, SEDC and HINO.
Cummins diesel generator Series Parameters |
Genset model |
Prime power |
Standby power |
Fuel cons. 100% (g/kw.h) |
Engine model |
Cyl. |
Bore/ Stroke |
Dimension |
Weight |
KW |
KVA |
KW |
KVA |
mm |
LxWxH(mm) |
kg |
DC20 |
20 |
25 |
22 |
28 |
≤209 |
4B3.9-G2 |
4 |
102/120 |
1720x740x1120 |
780 |
DC30 |
30 |
38 |
33 |
41 |
≤209 |
4BT3.9-G2 |
4 |
102/120 |
1900x820x1480 |
850 |
DC50S |
50 |
63 |
55 |
69 |
≤210 |
4BTA3.9-G2 |
4 |
102/120 |
1720x850x1400 |
1050 |
DC90 |
90 |
113 |
99 |
124 |
≤210 |
6BT5.9-G2 |
6 |
102/120 |
2050x850x1500 |
1350 |
DC100 |
100 |
125 |
110 |
138 |
≤210 |
6BTA5.9-G2 |
6 |
102/120 |
2050x850x1400 |
1380 |
DC120 |
120 |
150 |
132 |
165 |
≤209 |
6BTAA5.9-G2 |
6 |
102/120 |
2150x850x1500 |
1485 |
DC150 |
150 |
188 |
165 |
206 |
≤207 |
6CTA8.3-G2 |
6 |
114/135 |
2400x1000x1500 |
1880 |
DC180 |
180 |
225 |
198 |
248 |
≤207 |
6CTAA8.3-G2 |
6 |
114/135 |
2500x1000x1500 |
1950 |
DC200 |
200 |
250 |
220 |
275 |
≤205 |
6LTAA8.9-G2 |
6 |
114/145 |
2600x1000x1500 |
2150 |
DC200A |
200 |
250 |
220 |
275 |
≤192 |
NT885-GA |
6L |
140/152 |
2890x1100x1652 |
2795 |
DC200B |
200 |
250 |
220 |
275 |
≤200 |
MTA11-G2A |
6L |
125/147 |
2995x1100x1652 |
2975 |
DC250 |
250 |
375 |
330 |
413 |
≤195 |
NTA855-G1A |
6L |
240/152 |
2995x1100x1652 |
3050 |
DC350 |
350 |
438 |
385 |
481 |
≤188 |
MTAA11-G3 |
6L |
125/147 |
2995x1100x1652 |
3050 |
DC360 |
360 |
450 |
396 |
495 |
≤200 |
NTA855-G2A |
6L |
140/152 |
3090x1100x1652 |
3200 |
DC400 |
400 |
500 |
440 |
550 |
≤205 |
NTAA855-G7A |
6L |
140/152 |
3160x1100x1700 |
3255 |
DC450 |
450 |
563 |
500 |
625 |
≤207 |
KTA19-G3 |
6L |
159/159 |
3160x1100x1700 |
3257 |
DC500A |
500 |
625 |
550 |
568 |
≤207 |
KTA19-G4 |
6L |
159/159 |
3560x1345x1965 |
4100 |
DC500B |
500 |
625 |
550 |
688 |
≤207 |
KTAA19-G5 |
6L |
159/159 |
3560x1345x1965 |
4165 |
DC600 |
600 |
750 |
660 |
825 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4200 |
DC650 |
650 |
813 |
715 |
894 |
≤206 |
KTAA19-G6A |
6L |
159/159 |
3560x1345x1965 |
4305 |
DC700 |
700 |
875 |
770 |
963 |
≤216 |
KTA38-G |
12V |
159/159 |
3580x1538x1965 |
4600 |
DC800 |
800 |
1000 |
880 |
1100 |
≤216 |
KTA38-G2 |
12V |
159/159 |
3580x1538x1965 |
4650 |
DC850 |
850 |
1063 |
935 |
1169 |
≤203 |
KTA38-G2A |
12V |
159/159 |
3650x1638x2040 |
4685 |
DC900 |
900 |
1125 |
990 |
1238 |
≤205 |
KTA38-G5 |
12V |
159/159 |
4450x1638x2040 |
7200 |
DC1000 |
1000 |
1250 |
1100 |
1375 |
≤202 |
KTAA38-G9A |
12V |
159/159 |
5560x1900x2300 |
11000 |
