Model: U. K and Chinese Lovol Series
Product Description
Own professional diesel generator set maintainer who has strong experiences.

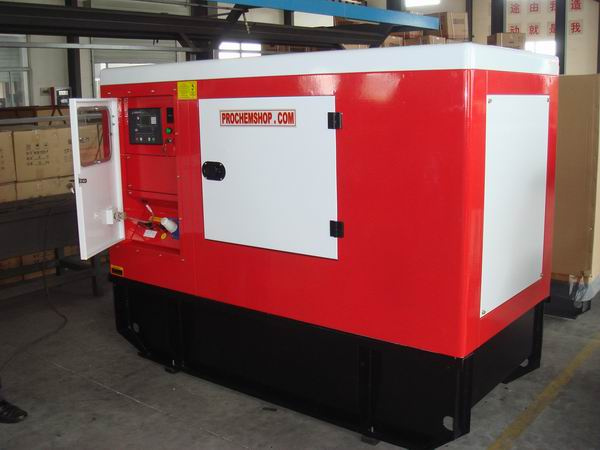

Supplying 24-120KW Perkins + Stamford diesel generator set.
Offer diesel generator set machine room design and installation projects.
Offer diesel generator set installation, debug, theory instruction, and training.
Offer automatical digital programme control panle or STD and also intelligent control with AMF & ATS panels at the users' particular requests.
Diesel Engine: PERKINS
Built with Brushlesss Alternator: Marathon/Stamford /Siemens/Leroy Sommer, which is perfect combination at present.
Supply Standard Collocation:
Diesel engine (with all accessories, 3 filter, electric system)
Stamfrod or or Chinese premium quality TFW sereis brushless Alternator s
Steel Structure Base
Fan and Water Tank Cooling System
Flange Connector
12V/24VStarting Motor and Charge Engine
Air Cleaner, Fuel Filters, engine Oil filter
On-Board Control Panel with STD devices and gauges or wz ATS & AMF
MCCB Air Conservation Switch
12/24V Starting Accumulator and Battery cables and chargers
Set Shock Absorber
High-Efficient Silencer.
|
SPECIFICATIONS OF U.K & Chinese Lovol ENGINES |
|
MODEL |
|
1004G |
1004TG |
1006TG1A |
1006TG2A |
1006TAG |
|
Number of cylinder |
|
4 |
|
6 |
|
|
|
System of |
|
NATURALly aspired |
TURBO charger |
|
|
|
Type |
|
water cooled ,vertical,4-stroke,direct injection, |
|
Capacity(L) |
|
3.99 |
|
5.99 |
|
|
|
Bore x Stroke(mm) |
|
100 x 127 |
|
|
|
|
|
Capacity of Lubrication system(L) |
|
810% |
8.5 |
16.1 |
16.1 |
19 |
|
Capacity of coolant(L) |
21 |
22.2 |
27.7 |
27.7 |
37.22 |
|
Net Weight(kg) |
540 |
550 |
780 |
780 |
730 |
|
Diesel engine Max.output/ speed |
kw/1500rpm |
44 |
72.3 |
92.7 |
102 |
134 |
|
|
kw/1800rpm |
48 |
83.2 |
107.3 |
119.2 |
147 |
|
Diesel engine continuous output/speed |
kw/1500rpm |
40 |
65.7 |
84.3 |
92.3 |
121 |
|
|
kw/1800rpm |
44 |
75.6 |
97.6 |
108.4 |
134 |
|
corresponding to Stamford or Marathon |
Brushless alternator |
|
|
|
|
|
|
corresponding model of Laimason alternator |
|
LSG26.2 |
LSG29.2 |
LSG31.2 |
LSG32.2 |
LSG34.2 |
|
Output of generator(Kw/1500RPM) |
cont. |
34 |
56 |
71 |
78 |
102 |
|
|
Standby |
38 |
61 |
80 |
88 |
120 |
|
Output of generator(kw/1800 RPM) |
con.t |
37 |
64 |
83 |
92 |
124 |
|
|
Standby |
41 |
70 |
91 |
101 |
143 |
|
Fuel consumption(g/kw-h) |
≤210 |
≤205 |
≤205 |
≤205 |
≤205 |
|
capacity of combustion(m3/min) |
2.64 |
4.52 |
5.74 |
5.74 |
8.38 |
|
Capacity of smoke(m3/min) |
7.54 |
13.1 |
16.24 |
16.24 |
24.14 |
|
exhaust temp. |
cont. |
600 |
561 |
545 |
550 |
571 |
|
Timing ratio |
machine timing |
≤5% |
≤5% |
≤5% |
≤5% |
≤5% |
|
|
electric timing |
≤1% |
≤1% |
≤1% |
≤1% |
≤1% |
|
radiator area(m2) |
19.7 |
26.94 |
33.27 |
33.27 |
25.86(water tank) 33.27(middle cooler) |
|
electric system |
standard scheme 24V , optional 12V |
