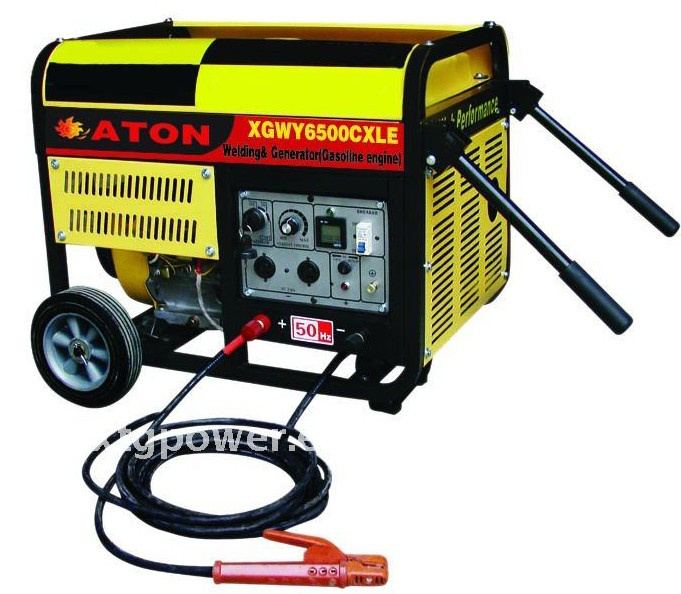

MODEL XGWY6500CX(E)
Frequency (Hz) 50 / 60
Rated output (kVA) 5.0
Max. Ourput (kVA) 5.5
Voltage (V) 110-120; 120-240
Power factor 1.0
Non-load welding voltage (V) ~65
Rated welding current (A) 180
Welding operational voltage (V) 30~36
Welding current adjustable (A) 80~200
Applicable electrode Φ (mm) / (inch) 2.0~4.0 / 0.079*0.157
ENGINE Model XG190F(E)G
Starting system Recoil/Electric
Net weight (kg) / (lbs) 93 / 98(E)
Dimensions (L*W*H) (mm) / (inch) 710*530*545.
Characteristics:
* Automatically reduce the engine speed at zero load, for noise-deadening.
* Engine oil level induction device will shut off engine automatically while engine oil exhausts.
* Super fuel tank ensures continuous running.
We are the manufacturer, specializing in engine, genetator, water pump, tiller and washer for 10 years (since 2001). 90% of the work-in-process are done by our own facility to guarantee the goods in reliable quality at the feasible cost and have attained the approval of CE, EPA and SONCAP.
