Prod Model: |
AC438 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Alternator: |
Leroy Somer, Stamford, Marathon |
Engine: |
Cummins |
Quality Control: |
ISO9001, ISO14000, CE, Soncap |
Warranty: |
1 Year or 1000 Hours |
Controller: |
Deepsea, Woodward, Deif, Comap |
Stroke: |
Four Stroke |
Type: |
Self-Starting Diesel Generator |
Cooling Method: |
Water Cooling |
Installation Method: |
Portable |
Product Description
600kVA/480kw cummins generator set
8 hours base tank
50 degree radiator

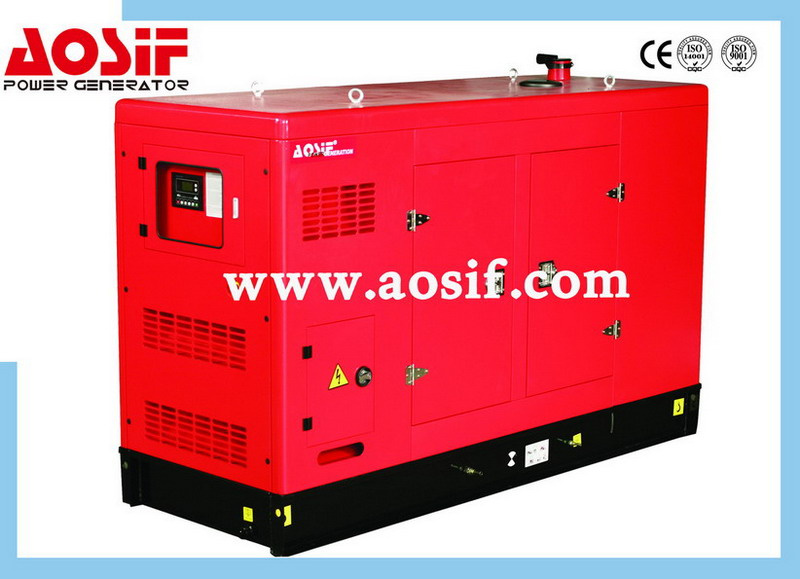

Low noise generator set
Type: Diesel generator set
600kVA/480kw cummins generator set with ISO & CE
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Supply Scope:
1. Brand-new engine, w/ start motor.
2. Brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
3. Heavy duty steel channel base frame
4. Heavy duty industrial type silencer c/w flexible bellow
5. Vibration damping supports between Engine/Alternator and base frame
6. Radiator with safety guard
7. Automatic start control panel, Smartgen as standard supply. Deepsea, DEIF, ComAp, Woodward for option.
8. High capacity lead acid battery c/w battery cables
9.3-pole output circuit breaker. ABB breaker is for option.
10. Skid-mounted bottom fuel tank for 8hrs full load as standard supply, but except KT38 and KT50 model.
11. Standrad tool kits and complete operation/maintenance/manuals to Engine/Alternator/control panel, etc.
12. Optional supply: A) Remote start / Auto mains failure(AMF) / ATS(automatic transfer switch) control panel, b) Soundproof / Weatherproof canopy, c) Mobile trailer, d) Auto load sharing, synchronizing panel and load sharing.
Similar products:
Perkins generator, Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9kVA to 2000kVA.
Manufacturer | Chongqing Cummins Engine Co. Ltd. |
Model | KTAA19-G6A |
Engine speed | 1500rpm |
Engine power | |
--------------------Standby power | 610kw /818HP |
--------------------Prime power | N/A |
Type | 4 cycle, In-line, 6-cylinder |
Aspiration | Turbocharged and Air to Air Aftercooled |
Governor | electrical |
Bore * Stroke | 159*159 mm |
Displacement | 18.9 L |
Compression ratio | 13.0: 1 |
Idle speed | 675 – 775 r/min |
Brake mean effective pressure(rated_ Max condition) | 2330- 2568kPa |
Piston speed | 7.9 m/s |
Friction horsepower | 45kw(60HP) |
Manufacturer / Model | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model | LSA47.2 L9 |
Output power | 480KW |
AVR model | R250 |
Number of phase | 3 |
Power factor (Cos Phi) | 0.8 |
Altitude | ≤ 1000 m |
Overspeed | 2250RPM |
Number of Pole | 4 |
Exciter type | Shunt |
Insulation class | H |
Voltage regulation | ± 0.5% |
Sustained short circuit current | 300% (3 IN): 10s |
Total harmonics (TGH/THC) | < 4 % |
Wave form: NEMA = TIF | < 50 |
Wave form: I. E. C. = THF | < 2% |
Bearing | single |
Coupling | Direct |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
