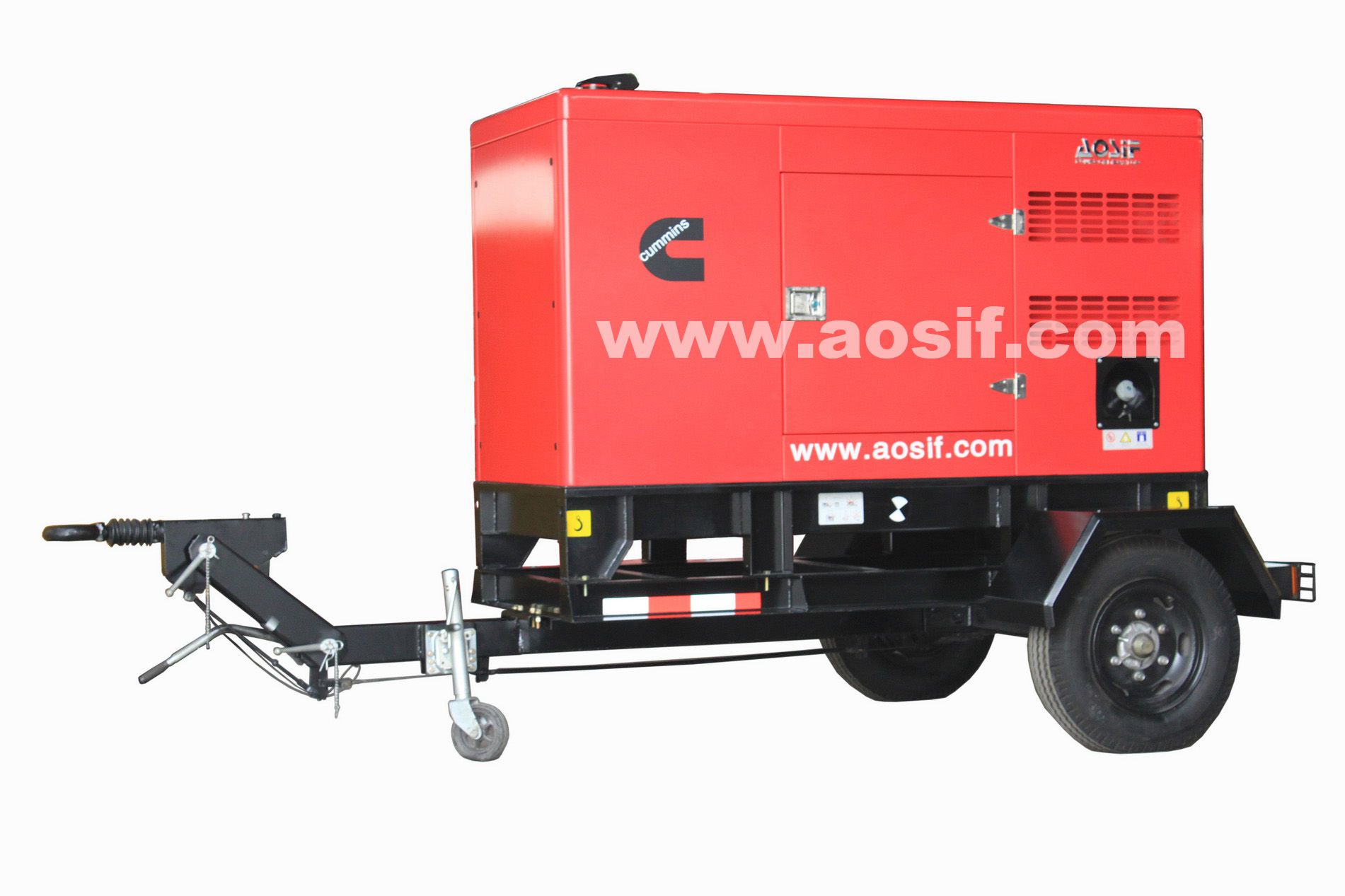

Aosif electric diesel engine portable generator enclosure
1). Trailer mounted generator
2). 2 -8 Wheels
3). Manual or air brake, turning lights
4). Single/double bearing
5). Strong design
Mobile generator is designed for the customers who need power supply between different locations. It is produced based on the development of automobile industry and international advanced technology and experience. The mobile generator can satisfy the temporary or long-time power need in different conditions and places.
High Performance
1. Two wheels or four wheels for choice.
2. Maintenance room in both sides of the trailer.
3. Well sealed canopy can prevent rain and dust.
4. Equipped with anti-vibration suspension system.
5. Adjustable height, bolted towed rack and booster.
6. Adopt mechanical underprops at each corner of the trailer.
7. Full road light system combines with traffic safety standard.
8. Best choice for outdoor power supply or emergency power supply.
9. Mounted with pneumatic and hydraulic pressure brakes, stationary brake and brake lights.
Genset
Model
|
Prime power
(KVA)
|
Standby power
(kw)
|
Engine model
|
Fuel
consumption (L/H)
|
Open Genset
Dimension (mm)
|
AC150
|
1 20 /1 50
|
108/135
|
6BTAA5.9-G2
|
2 7
|
2210x785x1394
|
AC165-I
|
150/165
|
120/132
|
6CTA8.3-G2
|
40
|
2257x790x1497
|
AC206
|
188/206
|
150/165
|
6CTA8.3-G2
|
40
|
2372x790x1507
|
AC220-I
|
200/220
|
160/176
|
6CTAA8.3-G2
|
40
|
2463x945x1606
|
Genset Model
|
Prime power
(KVA)
|
Standby power
(kw)
|
Engine model
|
Fuel consumption (L/H)
|
Open Genset Dimension (mm)
|
AC303
|
275/303
|
220/250
|
NTA855-G1A
|
61.3
|
2920x1010x1900
|
AC344-II
|
313/344
|
250/280
|
MTAA11-G3
|
62.0
|
2950x1010x1900
|
AC344-IV
|
313/344
|
250/280
|
NTA855-G1B
|
71.4
|
2950x1010x1900
|
AC375-I
|
344/375
|
275/300
|
NTA855-G2A
|
71.9
|
2900x1020x1800
|
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
