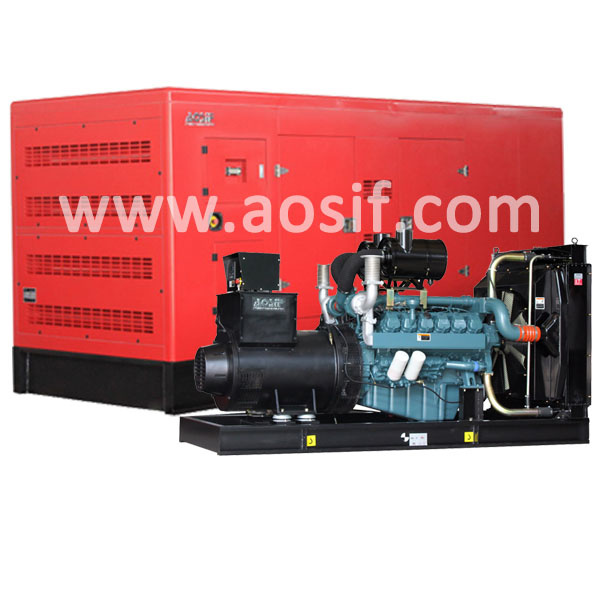

Aosif 650kVA silent doosan engine generator set
Place of Origin: Fujian China (Mainland)
Brand Name: AOSIF
Model Number: AD715-II
Output Type: AC Three Phase
Speed: 1500RPM, 1800RPM
Frequency: 50Hz, 60Hz
Rated Power: 650kVA/520KW
Rated Voltage: 110/220V, 220/380V, 230/400V, 240/415V, 254/440V, 277/480V
Rated Current: 936AMP at 400V
Engine: Doosan
Alternator: Leroy somer, Stamford, Marathon
Controller: Deepsea, Woodward, DEIF, ComAp
Quality control: ISO9001, ISO14000, CE, SONCAP
Warranty: 1 year or 1000 hours
650kVA/520kw Doosan generator with ISO & CE
8hours base tank
50degree radiator
Low noise diesel generator
Type: Diesel generator
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Manufacturer |
Doosan Heavy Industries & Construction |
Model |
P222LE-S |
Engine Power |
|
--Prime Power | 552KW |
--Standby Power | 603KW |
MECHANICAL SYSTEM:
Engine Type |
V-type 4 cycle, water cooled, turbo charged & intercooled |
Combustion type |
Direct injection |
Cylinder type |
Replaceable wet liner |
Number of cylinder |
12 |
Bore x stroke |
128 x 142 mm |
Displacement |
21.927 lit |
Compression ratio |
14.6:1 |
Firing order |
1-12-5-8-3-10-6-7-2-11-4-9 |
Injection timing |
20°BTDC |
Rotation |
Counter clockwise viewed from flywheel |
Fly wheel housing |
SAE NO.1 |
Fly wheel |
Clutch No.14 |
ALTERNATOR GENERAL DATA:
Manufacturer / Model | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model |
LSA49.1 S4 |
Output power |
500KW |
AVR model |
R448 |
Number of phase |
3 |
Power factor (Cos Phi) |
0.8 |
Altitude |
≤ 1000 m |
Overspeed |
2250RPM |
Number of Pole |
4 |
Exciter type |
Shunt |
Insulation class |
H |
Voltage regulation |
±0.5% |
Sustained short circuit current | 300% (3 IN) : 10s |
Total harmonics (TGH/THC) |
< 4 % |
Wave form : NEMA = TIF |
< 50 |
Wave form : I.E.C. = THF |
< 2% |
Bearing |
single |
Coupling |
Direct |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
