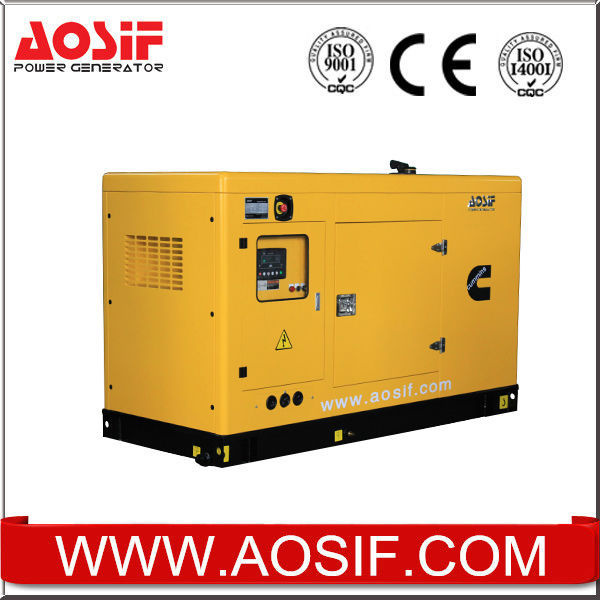

AOSIF Diesel Power by Cummins power generation
Genset Model | Prime power (KVA) | Standby power (kw) | Engine model | Fuel consumption (L/H) | Open Genset Dimension (mm) |
AC275-I | 250/275 | 200/220 | NT855-GA | 57.1 | 2930x1010x1895 |
AC275-II | 313/344 | 250/275 | MTA11-G2A | 59 | 2650x1010x1695 |
AC275-III | 250/275 | 200/220 | MTA11-G2 | 59 | 2840x1010x1710 |
AC275-VI | 250/275 | 200/220 | NTA855-G1 | 59.2 | 2920x1010x1710 |
Genset Model | Prime power (KVA) | Standby power (kw) | Engine model | Fuel consumption (L/H) | Open Genset Dimension (mm) |
AC303 | 275/303 | 220/242 | NTA855-G1A | 61.3 | 2923x1010x1842 |
AC344-II | 313/343 | 250/275 | MTAA11-G3 | 53.4 | 2950x1120x1720 |
AC344-III | 313/343 | 250/275 | NTA855-G1B | 71.4 | 2950x1010x1710 |
AC344-IV | 563/625 | 450/500 | NTA855-G2 | 118.6 | 3140x1245x2069 |
Genset Model | Prime power (KVA) | Standby power (kw) | Engine model | Fuel consumption (L/H) | Open Genset Dimension (mm) |
AC375-I | 344/375 | 280/300 | NTA855-G2A | 71.9 | 2884x1010x1917 |
AC375-II | 344/375 | 280/300 | NTA855-G4 | 75.3 | 2884x1010x1917 |
AC413-I | 375/413 | 300/330 | NTAA855-G7 | 85.4 | 2975x1120x1917 |
AC450 | ----/450 | ----/360 | NTAA855-G7A | 89.2 | 3035x1120x1917 |
Product Description
Engine: Power by Cummins,perkins,doosan...
Alternator: Leroy somer,stamford,Marathon
Power:25kva-1250kva
Delivery time: 1 month
Warranty:1 year or 1000hours whichever comes first
Packaging & Shipping
Plastic form plywood package,wooden package
Our Services
If you purchase generators from us, we supply the whole life technical support, and spare parts supply. No matter what problem you meet in generator,contact us at the first time, we will give you the response in 24hours.
Company Information
Xiamen AOSIF Engineering LTD
Establish year: 2001.
Main product: Diesel generator set, gas generator.
OEM brand: power by Cummins diesel engine (DCEC,CCEC),
power by Korean Doosan,
FAQ
Fault Type:Diesel engine can not start |
Fault Description and Reason | Remedy |
Fuel system failure: The diesel engine doesn't ignite when rotated by the electric motor. | |
Return pipe has no fuel return. |
Air in the fuel system. | Check whether the fuel pipe joints are loosened; vent the air in the fuel. Unfasten the vent screw on the fuel injection pump and fuel filter; pump the fuel with the hand pump, until there is no air bubbles in the overflowing fuel; tighten the vent screw, continue pumping; when fuel flows into the return pipe, tighten the hand pump. |
Fuel pipe clogged | Check and ensure that the fuel pipes are not clogged. |
Fuel filter Clogged | Clean the filter or replace the filter insert |
Fuel pump doesn't work or fails while working. | Check the fuel pump and the fuel intake pipe |
Insufficient fuel injection, failed injection or fuel not atomized | Replace injector assembly |
Injection pump speed governing lever placed in wrong position. | When starting the engine, place the lever in such |
| a position that the engine rotates at 600-800 r/min at no-load. |
Electric starting system failure | |
Misconnection of electric wires or inadequate grounding | Check that the electric wires are firmly and reliably connected. |
Insufficient battery capacity | Replace with a well-charged battery or use batteries in parallel. |
Fuel pump rod rack choked | Open the peep hole on the pressure fuel pump and move the acting rack to see whether there is any obstruction. For pressure fuel pump equipped with electronic speed governor, if no rod rack gets choked, jump out Terminal 1# and 6# on the control panel. Meanwhile the speed actuator shall be in the "maximum fuel" position and click sounds shall be easily audible. This will help staff decide whether there is fault with the electronic speed governor control panel. |
Electronic speed governor failure | Please follow the testing procedures specified in the handbook for the electronic speed governor(actuator, control panel, speed sensor) and find out the reason. |
Open generator photo

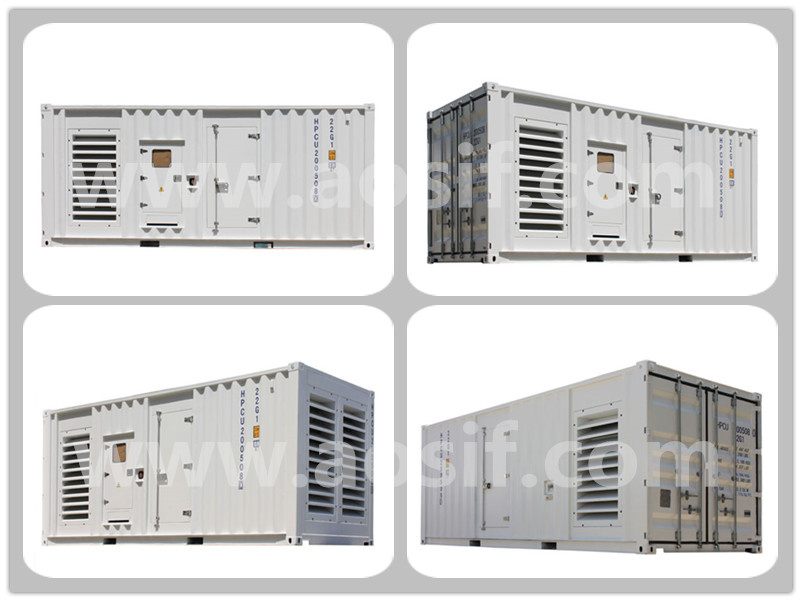

Diesel Generator stock
Welcome to Xiamen,Welcome to AOSIF
Tel: 0086-592-2620131
Fax: 0086-592-2620112
MP: 0086-13906008114
Website: http://www.aosif.com.cn
ADD: No.60 Jinying Road, Jimei Dist,
Xiamen, China, 361022

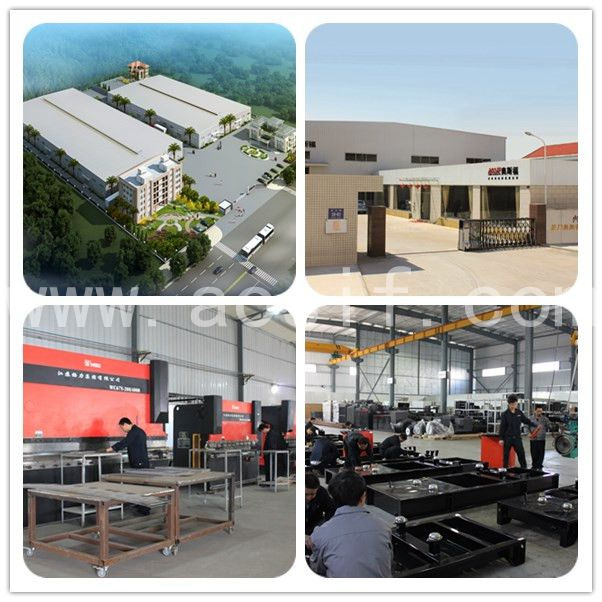

We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
