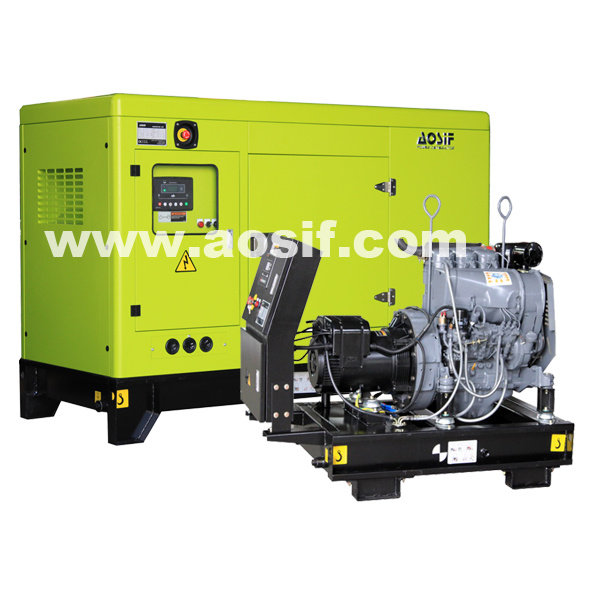

Aosif 10kw/13kVA silent deutz generator for sale
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Engine:
1. Deutz: F2L912
2. Displacement: 1.88 L
3. Cylinder quantity: 2Cylinder
4. Fuel consumption: 3.87L/h
5. Cooling Method: Water-cooled
6. Air intake way: Turbo-charged
7. Governor method: Mechanical Governor
| Manufacturer | Deutz Engines Company Limited |
| Model | F2L912 |
| Engine speed | 1500rpm |
| ----------------------------Standby power | 16kw |
| ----------------------------Prime power | 14kw |
| Number of cylinder | 2 cylinder in-line |
| Type | Vertical 4-stroke air-cooled deirect injection |
| Aspiration | Naturally aspirated |
| Bore * Stroke | 100*120 mm |
| Displacement | 1.88 L |
| Compression ratio | 17 |
| Direction of rotation | clockwise |
| Combustion Air Flow | 1.42 m 3 /min |
| Exhaust Gas Flow | 1.46 m 3 /min |
| Exhaust Gas Temperature | 500 o C |
| Area of heat radiation | 0.08m 2 |
| Noise dB | 100a |
| Electric System | 12V/24V |
| Manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
| Model | LSA40VS2 |
| Output power | 10 KW |
| AVR model | R220 / R438 |
| Number of phase | 3 |
| Power factor (Cos Phi) | 0.8 |
| Altitude | ≤1000 m |
| Overspeed | 2250RPM |
| Number of Pole | 4 |
| Exciter type | Shunt / AREP |
| Insulation class | H |
| Voltage regulation | ±1% |
| Sustained short circuit current | 300% (3 IN) : 10s |
| Total harmonics (TGH/THC) | no load < 3% - on load < 2% |
| Wave form : NEMA = TIF | < 50 |
| Wave form : I.E.C. = FHT | < 2% |
| Bearing | single |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
