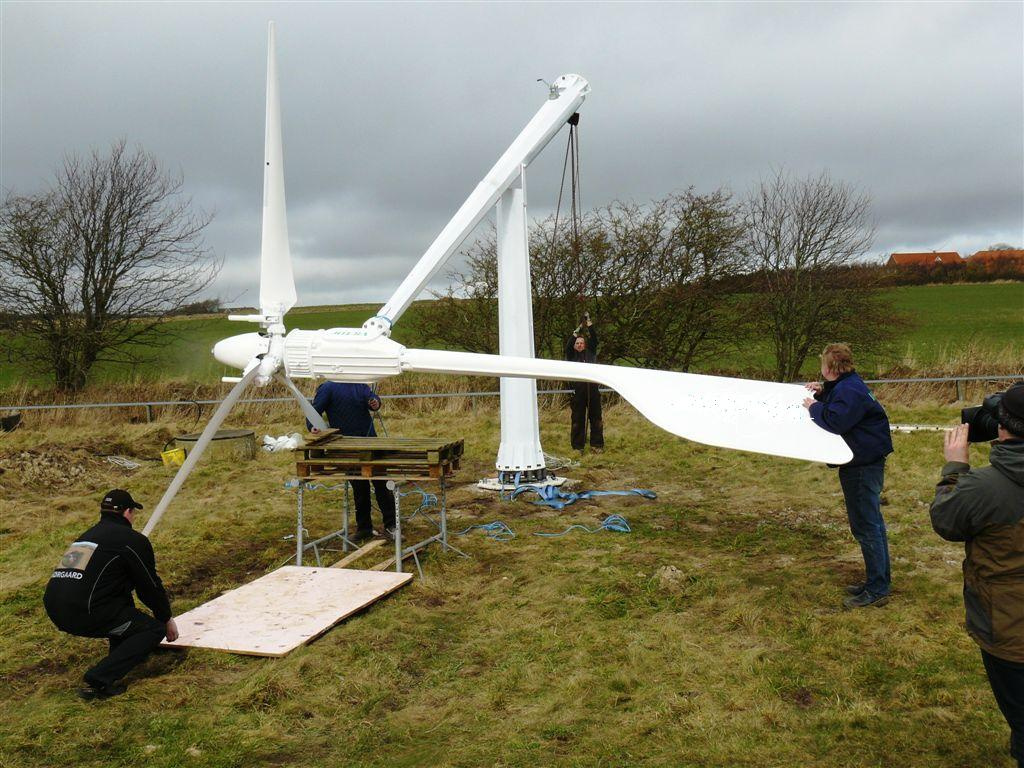

Anhua 2kW high output low rpm wind power generator
1. Yawing technology
2. 9m guyed tower and accessory
3. Manual brake system
4. High output power
Technical characteristics
(1) Special yawing design: exactly regulate wind rotor rotating speed, automatic yawing when wind speed is over rated wind speed. No slow-moving
(2) Anti-fatigue tail vane: tail vane adopts new material, spring design, improve anti-fatigue largely, extend service life.
(3) Pure mechanical structure, failure rate lower.
Application field :
GSM base station, forest-fire prevention, monitor system, sight lighting, island, sentry post, boats, agriculture and so on.
| Model | AH-2kW |
| Wind rotor diameter(m) | 3.4 |
| Blade material & quality | Reinforced fiber glass*3 |
| Rated power(W)/maximum power(W) | 2000/2500 |
| Rated wind speed (m/s) | 10 |
| Rated rotating speed (r/min) | 400 |
| Working wind speed (m/s) | 3-25 |
| Start-up wind speed (m/s) | 3 |
| Survive wind speed (m/s) | 50 |
| Rated voltage(V) | DC120V |
| Regulation method | Yawing |
| Stop method | Manual brake |
| Generator type | Three phase, permanent magnet generator |
| Wind turbine body weight (kg) | 120 |
Qingdao Anhua New Energy Equipment Co., Ltd. is a national high and new tech enterprise which specializes in small and medium wind turbine design and manufacture. More than 30 years, the company dedicates to small and medium wind turbine whole system R&D and popularization and accumulates rich experience in design and construction.
ANE wind turbines adopt whole self-developed technology; Meanwhile, ANE possesses more than 10 patents such as pitch controlled system, automatic safety protection system, yawing, permanent magnet generator etc...Now, there are three series of products: Diffused-type wind turbine AH-400W; Yawing-size wind turbine AH-500W, AH-1kW, AH-1.5kW and AH-2kW; Pitch controlled wind turbine AH-5kW, AH-10kW and AH-30kW. Every series of products achieve self-protection and running smoothly and safely at gale condition and extending their service life. Thereinto, a series of pitch controlled wind turbines adopts mechnical pitch controlled system and automatic safety protection system, which is pioneered in China and this revolution leads to the whole small and medium wind turbine industry development in the field of pitch controlled technology. ANE becomes the industry leader in the small and medium wind turbine business.
ANE factory covers an area of 5, 000 square meters and occupies the most advanced and self-developed generator test platform, wind rotor balance debug system, pitch controlled system test platform and other various wind turbine specialized detection equipments; Meanwhile, ANE has own test field for small and medium wind turbine. ANE engages well-known wind power expert Professor Zhao Fusheng as General Engineer and meanwhile owns s small and medium wind turbine professional technical team who have strong R&D capability.
ANE has already passed ISO900L Quality Management System and the products have passed CE and EN61400-2 certificate. At home, ANE has cooperated with China Mobile, China Unicom, GUO DIAN Group, State Grid Corporation, Goldwind Science&Technology, BAO LI Group, Da Gang Oild Field, RUI HAO Group, BEI LIANG Group and otherlarge-scale businesses or enterprises, and provides complete system solution for them, and promotes small and medium wind turbine applications in domestic market. Abroad, the products have been passed installation certificate in Germany, Denmark and other countries that are famous for their advanced wind power technology; Meanwhile, bulk products are also purchased in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia and other countries and regions, and have been high praised by the consumers across the world
Qingdao Anhua New Energy Equipment Co., Ltd. is devoting to wind power enterprise development all the time and building the world first-class brand.
