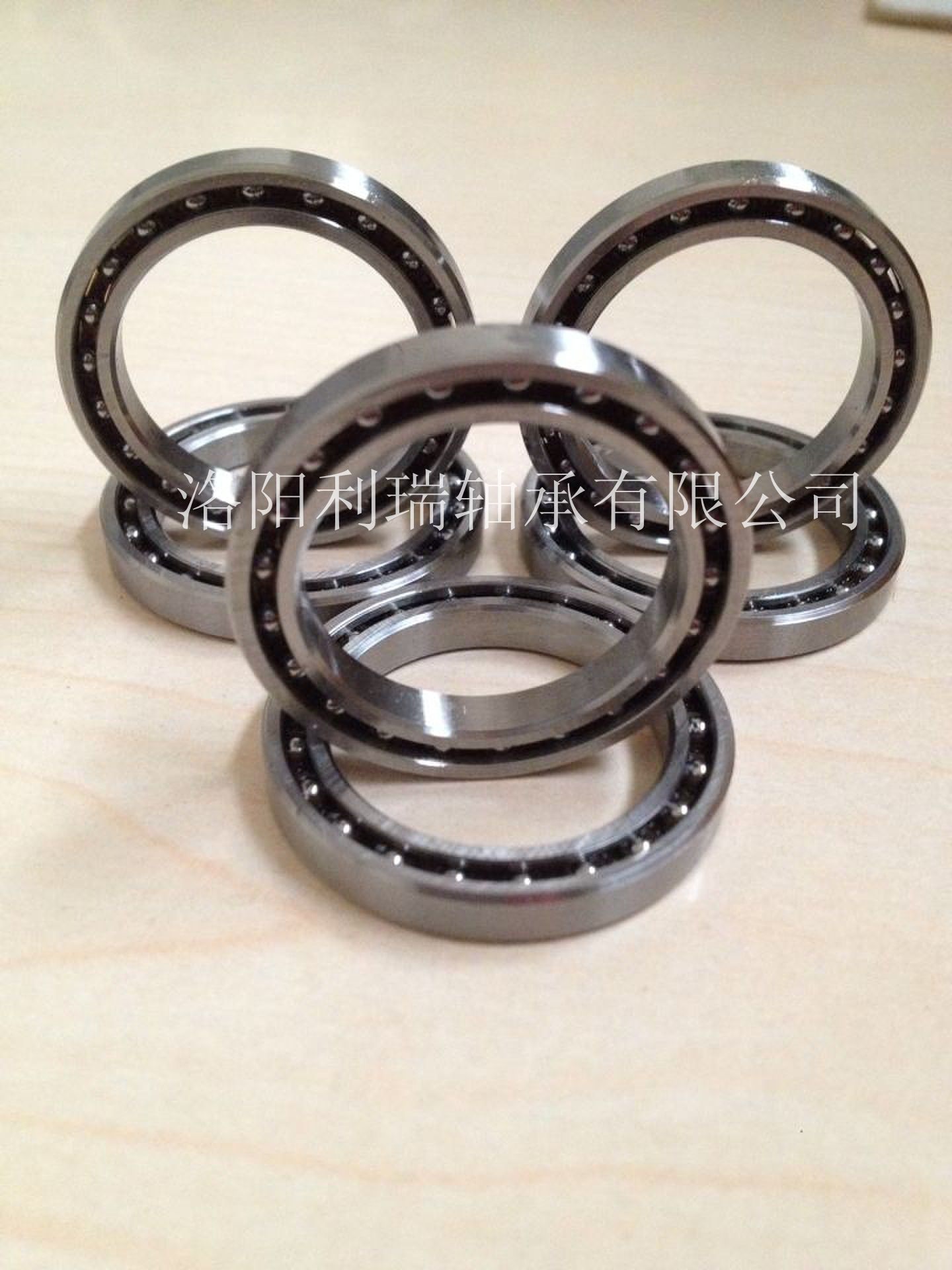

Angular Contact Ball Bearing, Rolling Bearing, Motorcycle

Angular Contact Ball Bearing, Rolling Bearing, Motorcycle
Price: US $ 0.1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Angular contact ball bearings

Contact Angle between ring and ball, standard of contact Angle is 15 ° , 30 ° , and 40 °
The larger the contact Angle is, the larger axial load capacity will be.
The smaller the contact Angle is, the more conducive the high-speed rotation will be.
Single-row bearing can withstand radial load and one-way axial load.
DB combination, DF combination, and double-row bearings can withstand radial load and two-way axial load.
DT combination is suitable for occasion, like one-way axial load is greater, and the lack of rated load for a single bearing.
High speed with ACH type bearings are mostly used for machine tool spindle, of which the ball diameter is small and numerous.
Angular contact ball bearings are suitable for high speed and high precision rotation.

Main Use:
Single-row: Machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft
Double-row: Oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery.

Packaging & Delivery
Packaging details:
1, wooden boxes
2. Be oiled and wrapped with water-proof belt
3. Wooden pallets
4. According to customers requirement
Delivery Detail:
2-5 days for stock bearing, 40-60 days for future goods

Specifications
1. Reasonable price
2. Various types
3. Quick delivery
4. OEM service

Product Specification:
1. Series: Angular Contact Ball Bearing
2. Cage: Machined brass cage,
3. Material: GCr15/GCr15SiMn
4. Precision: P0
5. Quality: IS09001: 2000
6. Packing: Standard export packing & industry packing & according to clients' requirement.
7. Brand: LRZ
8. Origin city: Luoyang of China
9. MOQ: 2 pcs
10. Delivery term: FOB Shanghai port & CIF
11. Others OEM orders available
Type Major dimensions weight Rated loading Limiting speed equivalent
d D B radial thrust
static dynamic static dynamic SILVERTHIN
IN MM IN MM IN MM KG Co(N) Cr(N) Co(N) Cr(N) (RMP)
KAA10AGO 1 25.4 1.375 34.925 0.1875 4.763 0.014 1510 1470 4310 4270 16840 SAA10AGO
KAA15AGO 1.5 38.1 1.875 47.625 0.1875 4.763 0.018 2140 1690 6140 4890 11850 SAA15AGO
KA020ARO 2 50.8 2.5 63.5 0.25 6.35 0.045 3510 29360 10140 7700 8890 SA020ARO
KA025ARO 2.5 63.5 3 76.2 0.25 6.35 0.059 4270 2850 12370 8270 7270 SA025ARO
KA030ARO 3 76.2 3.5 88.9 0.25 6.35 0.068 5070 3020 14630 8810 6150 SA030ARO
KA035ARO 3.5 88.9 4 101.6 0.25 6.35 0.082 5830 3200 16860 9210 5330 SA035ARO
KA040ARO 4 101.6 4.5 114.3 0.25 6.35 0.086 6630 3340 19130 9700 4710 SA040ARO
KA042ARO 4.25 107.95 4.75 120.65 0.25 6.35 0.091 7030 3430 20240 9960 4440 SA042ARO
KA045ARO 4.5 114.3 5 127 0.25 6.35 0.1 7380 3470 21400 10050 4210 SA045ARO
KA047ARO 4.75 120.65 5.25 133.35 0.25 6.35 0.104 7780 3560 22510 10280 4000 SA047ARO
KA050ARO 5 127 5.5 139.7 0.25 6.35 0.109 8180 3600 23620 10500 3810 SA050ARO
KA055ARO 5.5 139.7 6 152.4 0.25 6.35 0.113 8990 3690 25890 10720 3480 SA055ARO
KA060ARO 6 152.4 6.5 165.1 0.25 6.35 0.127 9740 3830 28110 11120 3200 SA060ARO
KA065ARO 6.5 165.1 7 177.8 0.25 6.35 0.136 10540 3960 30380 11480 2960 SA065ARO
KA070ARO 7 177.8 7.5 190.5 0.25 6.35 0.141 11300 4000 32650 11570 2760 SA070ARO
KA075ARO 7.5 190.5 8 203.2 0.25 6.35 0.154 12100 4090 34870 11830 2580 SA075ARO
KA080ARO 8 203.2 8.5 215.9 0.25 6.35 0.172 12860 4270 37140 12320 2420 SA080ARO
KA090ARO 9 228.6 9.5 241.3 0.25 6.35 0.2 14410 4400 41640 12720 2160 SA090ARO
KA100ARO 10 254 10.5 266.7 0.25 6.35 0.227 15970 4580 46130 13340 1950 SA100ARO
KA110ARO 11 279.4 11.5 292.1 0.25 6.35 0.236 17530 4770 50620 13790 1780 SA110ARO
KA120ARO 12 304.8 12.5 317.5 0.25 6.35 0.254 19080 5020 55110 14230 1630 SA120ARO
Prod Model: KA035ARO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Diameter: 76.2 Mm
Outer Diameter: 88.9 Mm
Breadth: 6.350 Mm
Weight: 0.068 Kg
Rolling Body: Ball Bearings
Separated: Unseparated
The Number Of Rows: Single
Outer Dimension: Small and Medium-Sized (',60-115mm)
Load Direction: Radial Bearing
Material: Bearing Steel
Luoyang Lirui Bearing Co., Ltd, located in an ancient capital city Luoyang which is a great production base for bearing, is a new-high technology corporation with the integration of design, research and development, manufacturing. Our company is based on not only the development of China's bearing, but also the global perspective, and has first-class team of bearing experts and engineers, the domestic first-class CNC grinding, automatic equipment, and large-scale sophisticated equipment, all of these guarantee that our bearings have high precision and stability.

Our company has been found in 1994, since the establishment, we inherit "honest and trustworthy, the user orientated", adhere to high quality pre-sales technical support, superior product quality coupled with excellent after-sale service to serve every customer. We are specialized in the design, research and production to various non standard bearing, imported substitution bearing and special bearing, which are widely applied to aerospace, precision instruments, textile, precision lathe, port, mining, medical treatment, coal, cement, oil drilling, wind power generation, industrial robots, defense industry and other fields. A large number of our products are exported to the United States, Britain, Canada, Germany, Austria, Italy, Japan, Korea, Singapore, India, Pakistan, Thailand, Malaysia and other countries.

We have got ISO9001: 2000 certificate, as it is represented in "Quality Guideline", Lirui bearing focus on comprehensive quality management, and take it as a sustained effort to improve customer satisfaction. These requires our team including senior management take on the job training and further education. At the meantime, it is necessary to establish full assessment to ensure that this goes smoothly in this area. The company gradually forms a stable country and worldwide sales network. Each product reflects constant pursuit of the excellence of Lirui employees, and serves our customers by qualified products and business philosophy of "innovation, integrity and pragmatic, development". Creating value for customers and guarantee satisfaction to the customers are our principles, thus, we sincerely welcome friends from all over the world come to discuss, exchange and cooperation. Let us use our joint hands to create a bright future.
