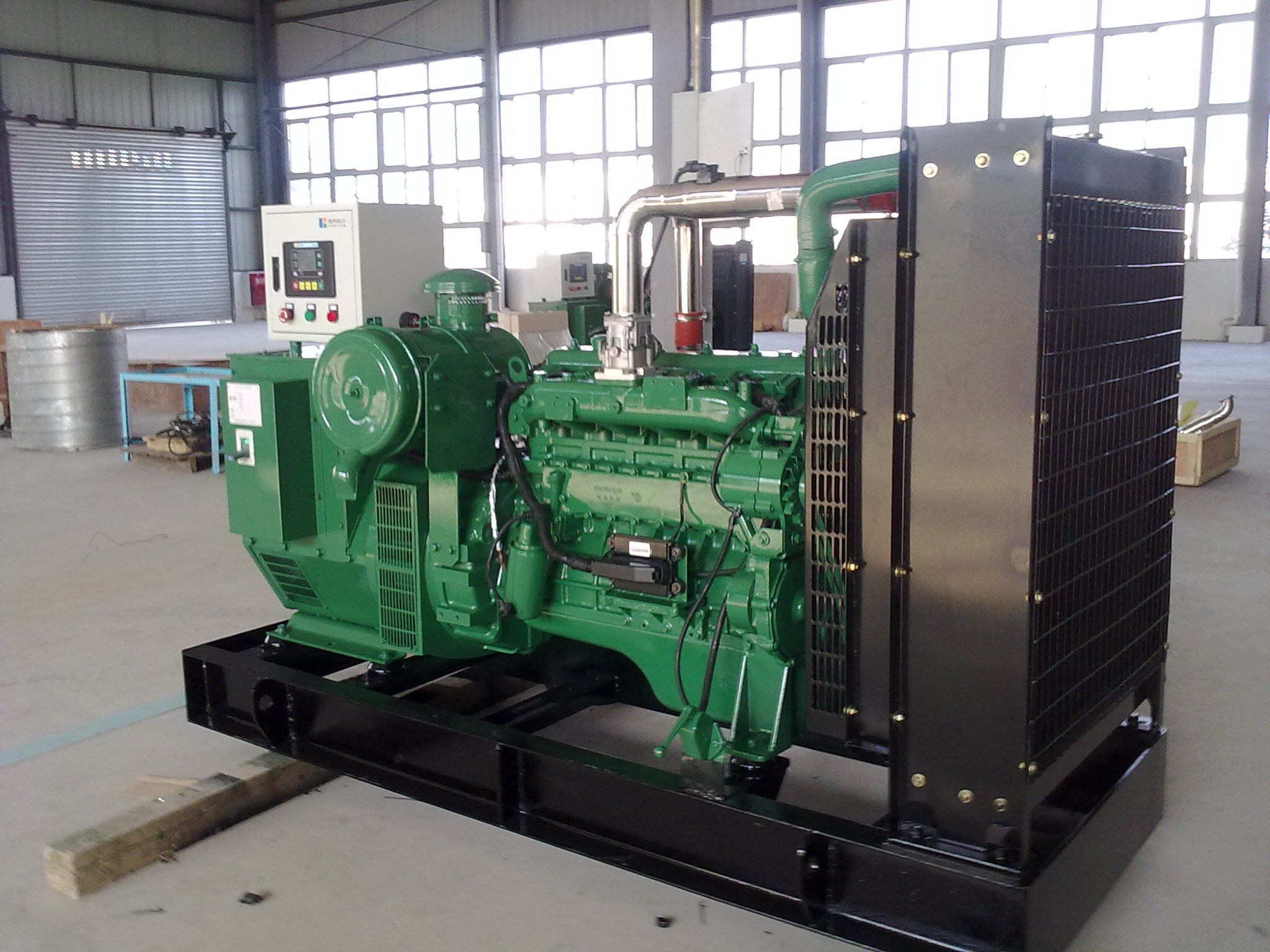

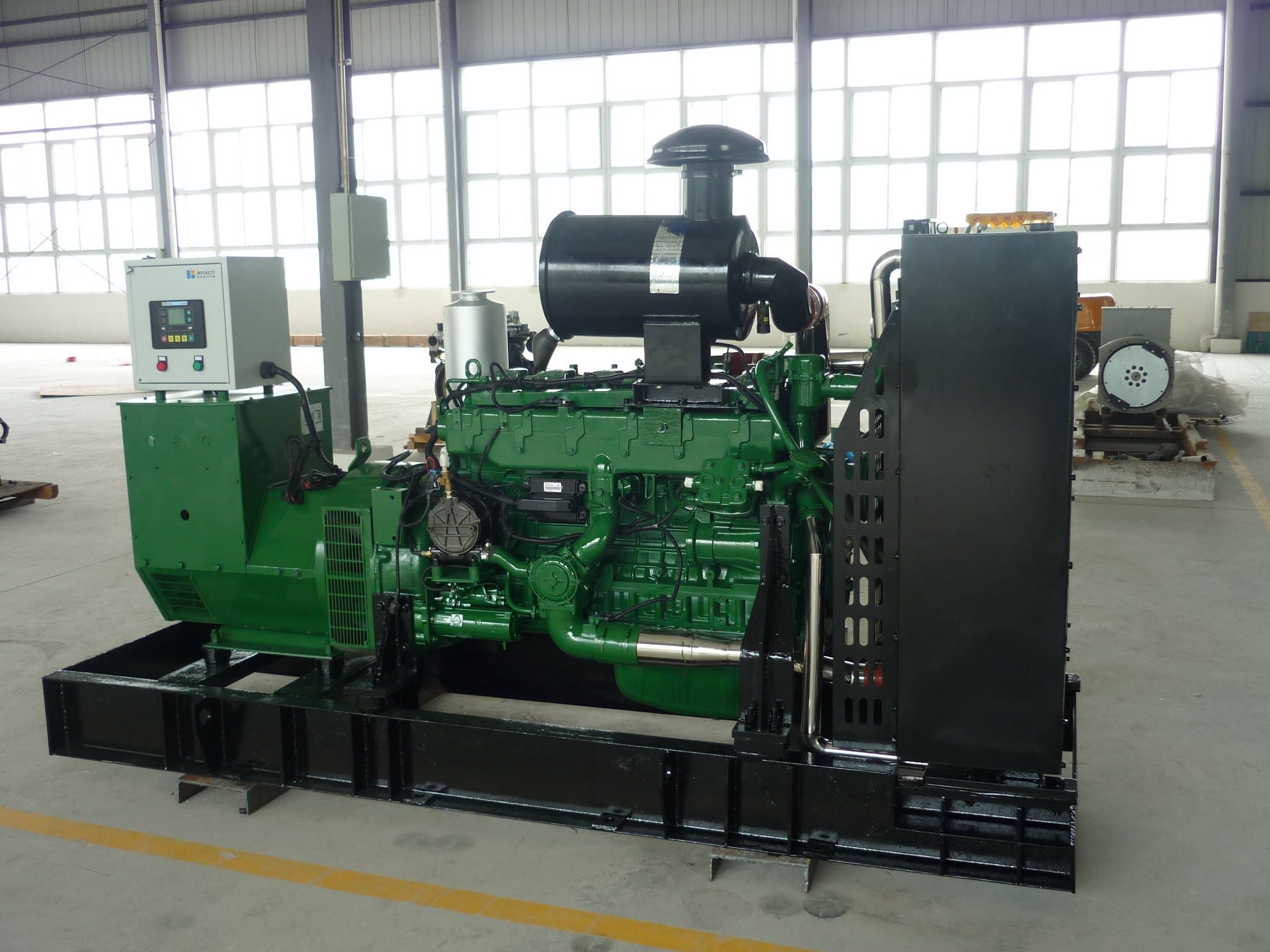

Main Specification & Configuration
Prime Power | 90Kw (112.5KVA) |
Engine | Cummins 6BT |
Alternator | Mecc Altea ECP34-1L/4 |
Controller | DEIF AGC222 |
Recommended Operation Conditions
Gas C3H8 Content ≥50% |
Gas Pressure ≥3KPa |
Calorific Value ≥ 32MJ/M3 |
Gas H2S Content ≤20mg/M³ |
Gas Total Sulphur ≤460mg/M³ |
Altitude ≤ 4,000m |
-25ºC≤ Ambient temperature ≤ +50ºC |
Advantage &Feature
Reliable Cummins engine, Mecc Altea alternator and DEIF controller. |
Advanced lean burn technology. |
Prompt dynamic response similar to diesel genset. |
Excellent power generation efficiency. |
Widely gas pressure adaptability. |
Humanized manual, semi-auto and full-auto operation model. |
Detailed Specification & Configuration
Genset |
Model | AMC90GF4-PL |
Prime Power | 90Kw (112.5KVA) |
Rated Voltage | 230/400V |
Rated Current | 162.4A |
Rated Frequency | 50 or 60Hz |
Power Factor | 0.8 |
Gas Consumption | 0.30Nm³/Kw·h |
Operating Weight | 1,200Kg |
Overall Size(L x W X H) | 2,240 × 1,000 × 1,400mm |
Engine |
Brand | Cummins |
Model | 6BT |
Type | 6-cylinder, 4-stroke, turbocharged |
Displacement | 5.9L |
Compression Ratio | 10.5 |
Ignition | Electric control, independent ignition |
Fuel Control | Lean burn, closed-loop control |
Speed Governing | Electric control |
Rated Speed | 1500rpm |
Conversion Efficiency | 38% |
Alternator |
Brand | Mecc Altea |
Model | ECP34-1L/4 |
Excitation Type | Brushless with AVR |
Connection Type | 3-Phase, 4-Line |
Conversion Efficiency | 92.4% |
Controller |
Brand | DEIF |
Model | AGC222 |
Type | Manual control, semi-auto control or full-auto control. |
Others |
Pedestal, Radiator, Air filter, Muffler, Battery & Gas Pressure Reducer are included. |
Soundproof, Engine oil, Coolant and Output Cable are not included |
Remark: Specification subject to change without prior notice.
