Home Generator Products Amico 200kw Coalbed Gas Generator

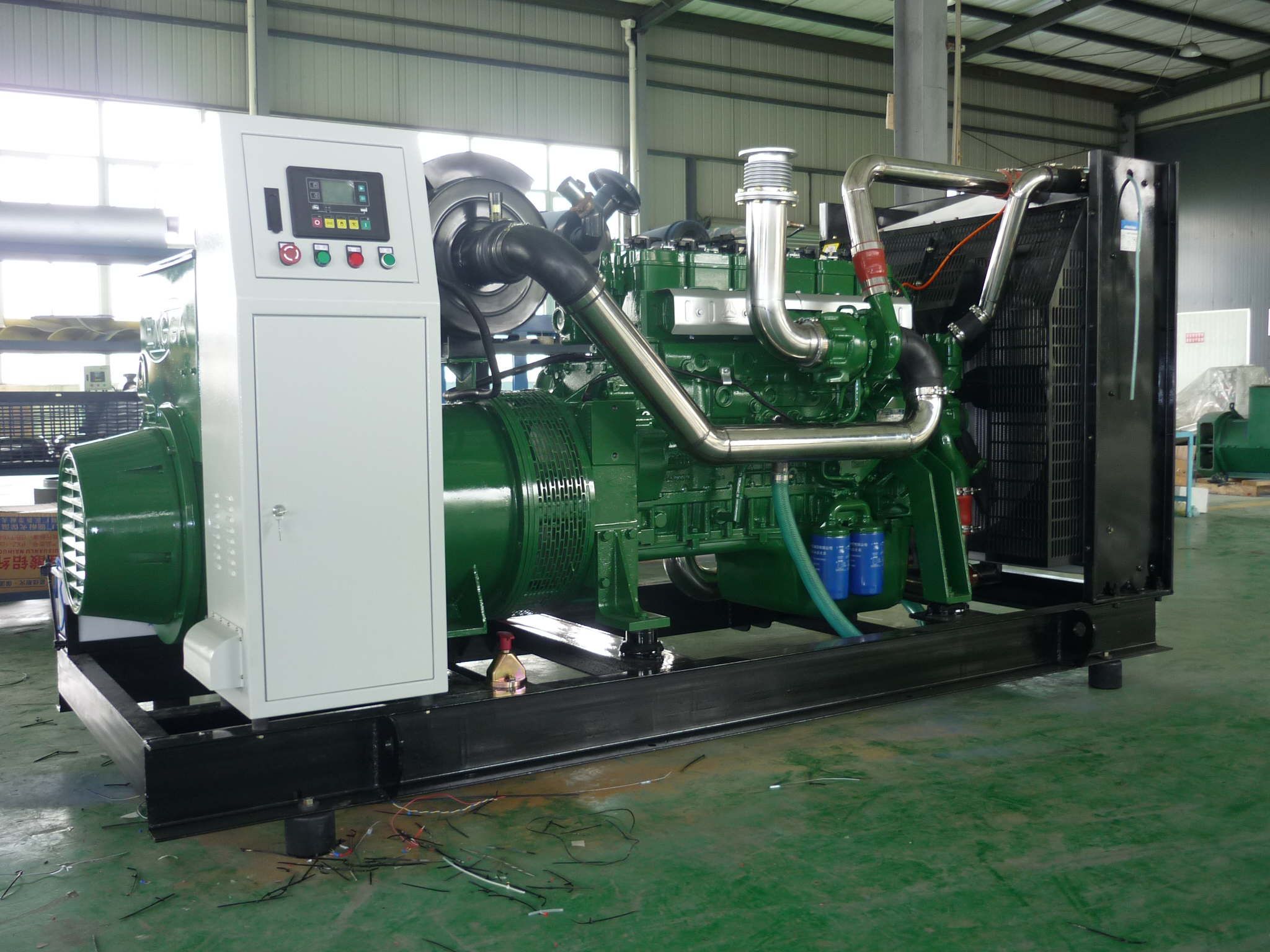

Amico 200kw Coalbed Gas Generator

Amico 200kw Coalbed Gas Generator
Price: US $ 39000-53000Unit
Trade Terms: FOB,CFR,CIF
Min Order: 1Unit
Pay Type: L/C,T/T,D/P
Main Specification & Configuration
Prime Power200Kw (250KVA)
Engine CNHTC (Steyr & AVL Tech.) T12
AlternatorMecc Altea ECO38-1LN/4
ControllerDEIF AGC222

Recommended Operation Conditions
Gas CH4 Content ≥10%
Gas Pressure ≥3KPa
Calorific Value  ≥ 3.5MJ/M3
Gas H2S Content ≤20mg/M³
Gas Total Sulphur ≤200mg/M³
Altitude ≤ 4,000m
-25ºC Ambient temperature ≤ +50ºC

Advantage & Feature
Reliable Steyr & AVL Tech. engine, Mecc Altea alternator and DEIF controller.
Advanced lean burn technology.
Prompt dynamic response similar to diesel genset.
Excellent power generation efficiency.
Widely gas pressure adaptability.
Humanized manual, semi-auto and full-auto operation model.

Detailed Specification & Configuration
Genset
ModelAMC200GFJ-RM
Prime Power200Kw (250KVA)
Rated Voltage230/400V
Rated Current360.8A
Rated Frequency50 or 60Hz
Power Factor0.8
Gas Consumption1.18Nm³/Kw·h
Operating Weight1,950Kg
Overall Size(L x W X H)2,900 × 1,150 × 1,720mm
Engine
BrandCNHTC(Steyr & AVL Tech.)
ModelT12
Type6-cylinder, 4-stroke, turbocharged
Displacement11.596L
Compression Ratio11
IgnitionElectric control, independent ignition
Fuel ControlLean burn, closed-loop control
Speed GoverningElectric control
Rated Speed1500rpm
Conversion Efficiency40%
Alternator
BrandMecc Altea
ModelECO38-1LN/4
Excitation TypeBrushless with AVR
Connection Type3-Phase, 4-Line
Conversion Efficiency93.4%
Controller
BrandDEIF
ModelAGC222
TypeManual control, semi-auto control or full-auto control.
Others
Pedestal, Radiator, Air filter, Muffler, Battery & Gas Pressure Reducer are included.
Soundproof, Engine oil, Coolant and Output Cable are not included

Remark: Specification subject to change without prior notice.
Prod Model: AMC200GFJ-RM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cnhtc (Steyr & Avl Tech.) T12
Alternator: Mecc Altea Eco38-1ln/4
Controller: Deif AGC222
Type: Open(Optional Soundproof)
Prime Power: 200kw (250kVA)
Rated Voltage: 230/400V
Rated Current: 360.8A
Rated Frequency: 50 or 60Hz
Power Factor: 0.8
Gas Consumption: 1.18nm3/Kw.H
Gas Source: Coalbed Gas
Certification: SGS
AMICO GAS POWER Co., Ltd. is a gas power professor in gas engine R&D, electronic control system integrating, gas genset & power unit manufacturing, gas technology training and after-sale service supplying.

AMICO is located in No. 203, North Gangtong 2ND Road, Chengdu Modern Industrial Park(North), ChengDu City, Sichuan Province, P. R. China and owns 20, 000 square meters R&D and production base. AMICO had participated in drafting & reviewing the China national standard for gas product and undertaken the China "863" project for natural gas engine R&D because it own professional R&D team and advanced automatic test system. In addition, AMICO has passed ISO9001: 2008 Quality Management System authentication and awarded with the honorary title of high-tech enterprise in Sichuan province.

AMICO serial product are independently developed and adopt with lean-burn & electronic control technology. AMICO serial product ranges from 30Kw to 2000kw and widely used in gas field, oilfield, coal mine, refuse landfill and farm for power generation & supply. Especially AMICO is the sole qualified domestic supplier of 750Kw & 1000Kw gas genset for electric drilling platform in China.

AMICO adheres to principles of customer interest first and strenuously promote the cooperation with customers & partners to achieve mutual benefit. At present, AMICO own dozens of sales and service centers in Asia, Africa and South America and has established solid cooperative relationship with PetroChina, Sinopec, CNOOC, POVSA, SHELL and other well-known domestic and foreign oil companies.
