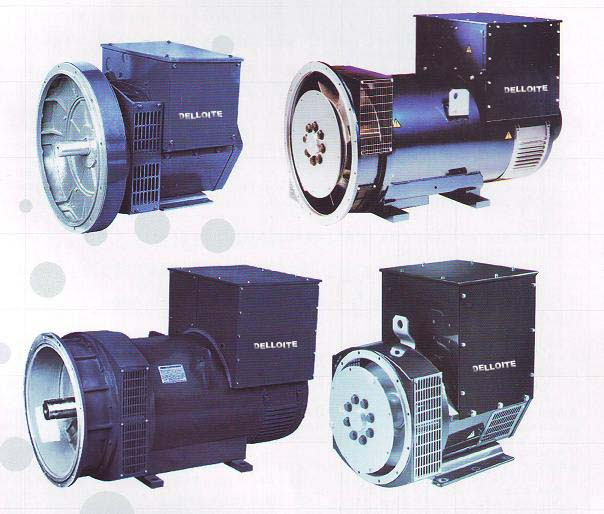

MECHANICAL FEATURES (ALTERNATOR):
FRAME:
The frame is made by steel plate. All industrial standard generators is IP21 ( NEMA1), also IP 23 is an option, But rated power will decrease 5%.
SHAFT AND KEY:
All generator rotors are dynamically balanced to better than BS6861: Part Grade2.5 for minimum vibration operation. Two bearing generators are balanced with a half key.
TERMINALS AND TURMINAL BOX:
Standard generators are 3-phase reconnect able with 12 ends brought out to the terminals, which are mounted on a cover at the non-drive end of the generator. A sheet steel terminal box contains the AVR and provides ample space for the customers wiring and gland arrangements. It has removable panels for easy access.
ENGINE ADAPTOR COUPLING:
All generators have two kinds construction. The single-bearing generators engine adaptor to SAE0, 1, 2, 3, 4 and 5, the coupling discs to SAE7.5, 8, 10, 11.5, 14 and 18 are available.
The double-bearing generators adaptor to SAE0, 2, 3, 4 and 5 are available.
Brilliance Power International Elec-Mach (Beijing) Co., Ltd. is a professional manufacturer and supplier of wide variety of generators, diesel engines, electric motor, and agriculture equipments. Our main products cover: Series of diesel generating sets, series of gasoline generating sets, gasoline and diesel engines, gasoline and diesel water pump, electric motor, chainsaw, brushcutter, rice polisher, mill grinder, and power sprayer.
We also specialize in the assembly, design, sales, installation, maintenance, and service of various European series generator sets with power raging from 10-2500kVA. We accept special orders from clients and are able to meet all kinds of special technical requirements.
We believe in assurance of quality and exceptional communication skills as well as our competitive prices and professional service.
