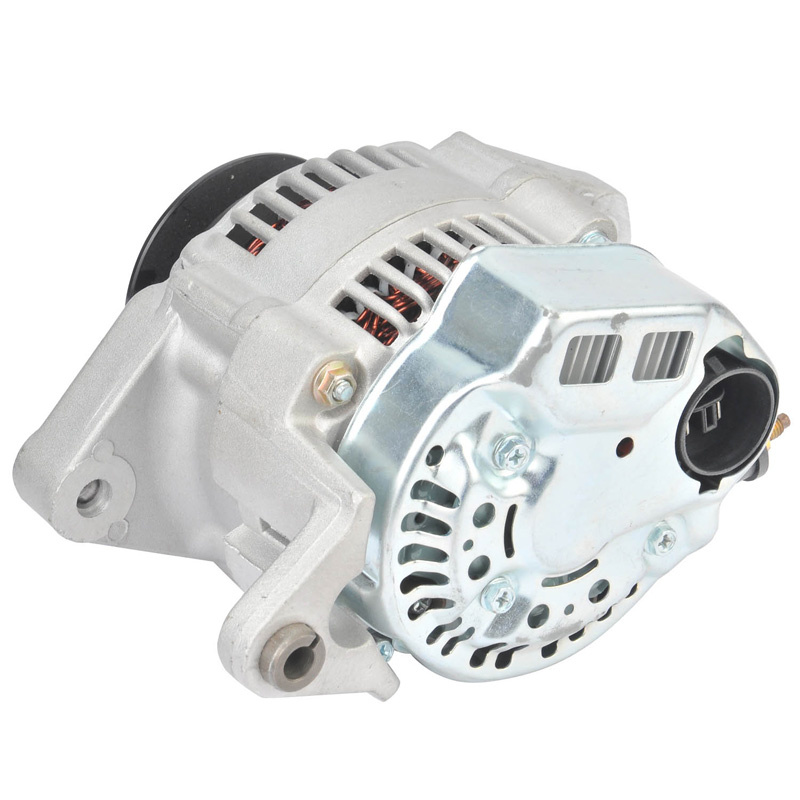

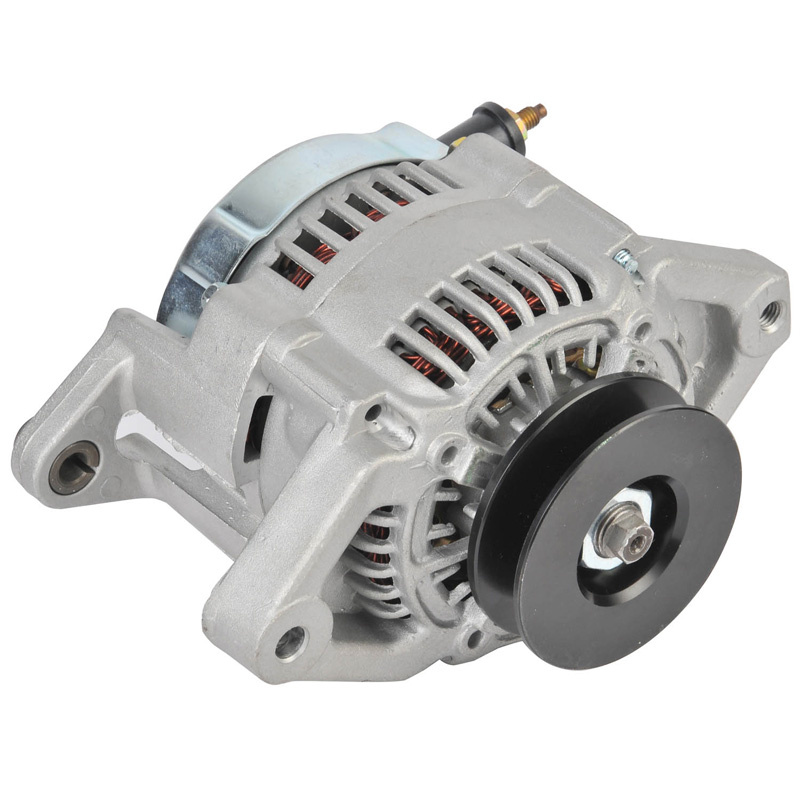

| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 55 |
| Pulley Class | V1 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | CHEVROLET, GEO, SUZUKI 1985-89
1-V PULLEY 69mm OD 15mm ID
ADDL INFO: REGULATOR #126000-0410
SEARCH: 494915 494917 (DIFFERENT VERSIONS) |
| Detailed | These Units are Similar in Appearance Although the 494915 Has a Thicker Aluminum Rear Mounting While the 494916 and B Have a Thinner Steel Mount. Both Interchange. All 14684'
s Have the Same Plug Configuration (D-IG-L) Although Regulator Numbers Vary as the Size of the Regulator Varies. The Same Unit But With a C-IG-L Plug Is the 14937 (OEM No.100211 4150). These Units All Use a Single V-Groove Pulley. Later Models (13214) Used a Serpentine Pulley. The Pulleys Will NOT INTERCHANGE. |
| AND0066 | ARROWHEAD |
| 14684 | LESTER |
| 290-212A | PIC |
| 14684 | BBB |
| 14684 | BBB NEW |
| 186-0373 | BECK ARNLEY |
| 110965 | CARGO |
| 100211-1410 | DENSO |
| 100211-1411 | DENSO |
| A-8159 | DIXIE |
| 914684 | DUBOIS |
| 14684 | EXCEL |
| 96055601 | GENERAL MOTORS |
| 400-52015 | J & N |
| LRA00549 | LUCAS ELECTRICAL EUROPE |
| 47-3477 | MINNPAR |
| 14870 | MPA |
| 13-8329 | NAPA |
| 13-8331 | NAPA |
| 213-8331 | NAPA POWER PREMIUM PLUS |
| 13-8331 | NAPA POWER SUPREME |
| ALT-5021 | NSA |
| 31400-82611 | SUZUKI |
| A1231 | USA INDUSTRIES |
| VA490 | VALEO SHORT |
| 1-1228-01ND | WAI |
| 90-29-5060 | WILSON |
| 90-29-5064 | WILSON |
| 90-29-5060 | WILSON NEW |
| ALT5021 | WOOD AUTO |
| 14824 | WORLDWIDE |
| 94623 | WORLDWIDE NEW |
| CHEVROLET | Auto and Light Truck | SPRINT | 1987 | 1.0L(61) L3 |
| CHEVROLET | Auto and Light Truck | SPRINT | 1987 | 1.0L(61) L3 |
| CHEVROLET | Auto and Light Truck | SPRINT | 1988 | 1.0L(61) L3 |
| CHEVROLET | Auto and Light Truck | SPRINT | 1988 | 1.0L(61) L3 |
| PONTIAC | Auto and Light Truck | FIREFLY | 1987 | 1.0L |
| PONTIAC | Auto and Light Truck | FIREFLY | 1987 | 1.0L |
| PONTIAC | Auto and Light Truck | FIREFLY | 1988 | 1.0L |
| PONTIAC | Auto and Light Truck | FIREFLY | 1988 | 1.0L |
| SUZUKI | Auto and Light Truck | FORSA | 1987 | 1.0L |
| SUZUKI | Auto and Light Truck | FORSA | 1987 | 1.0L |
| SUZUKI | Auto and Light Truck | FORSA | 1988 | 1.0L |
| SUZUKI | Auto and Light Truck | FORSA | 1988 | 1.0L |
| SUZUKI | Auto and Light Truck | SAMURAI | 1985 | 1.3L |
| SUZUKI | Auto and Light Truck | SAMURAI | 1986 | 1.3L |
| SUZUKI | Auto and Light Truck | SJ413 | 1985 | 1.3L |
| BRG0006 | ND949100-5240 | BEARING - ROLLER |
| BRG0038 | 35-3207E | BEARING - ROLLER |
| BRG0015 | ND949100-2951 | BEARING - ROLLER |
| AND7501 | ND021660-0390 | BRUSH - ALTERNATOR |
| AND1301 | ND021620-2201 | BRUSH HOLDER - ALTERNATOR |
| AND1000 | ND021551-0841 | COVER - RECTIFIER |
| IHW2612 | ND021506-0070 | DUST SHIELD - SRE BRG |
| AND1614 | | INSULATOR - ALT. B+ STUD |
| | ND021605-1360 | INSULATOR - STATOR LEADS |
| | | PLUG CODE |
| | ND021041-2000 | PULLEY |
| AND1250 | ND021580-2500 | RECTIFIER |
| AND6027 | ND126000-0411 | REGULATOR |
| | | ROTOR |
| AND3501 | | SLIP RING |
| IHW2602 | | STUD - S.R.E. |
| | | TEST LEAD |
![]()
