Unit Type | Alternator |
Part Type | UNIT |
Voltage | 12 |
Rotation | CW |
Amperage | 110 |
Pulley Class | S6 |
Regulator | IR |
Fan Type | IF |
Manufacturer | HITACHI |
Brief | INFINITI Q45 1997 6-GROOVE PULLEY 63mm OD ADDL INFO: 3-TERMINAL C-S-L PLUG SEARCH: 487927 (wo/C-TERMINAL) |

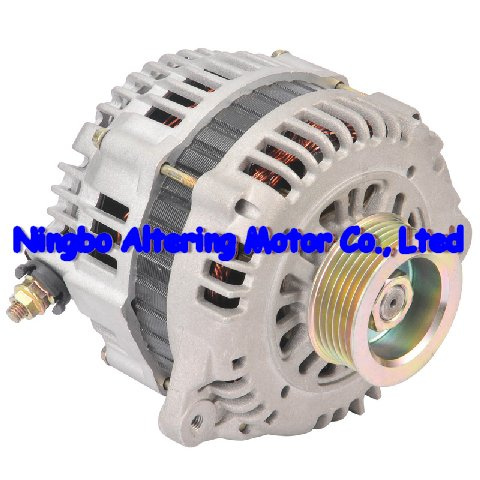

Detailed | This is a 110A Hitachi Alternator for the Infiniti Q45. This Unit Has an Offset Top Unthreaded Mounting Hole and a Battery Extension Pointing Up at About 12:00. This Unit Uses a 6-Groove Pulley and the Plug is on the Side of the Unit at About 1:00. There Appears to Be a Number of Units That Interchange Here - All Using OE No. LR1110-707 Followed By a Different Letter. Early Versions of the 13712 Used a Third Terminal in the Plug (C Terminal) But This Was Superseded to a Later 13712 Unit That Dropped This Terminal. The Units Interchange. Nissan Has Recalled the 1997 (2/97 Thru 2/98) Infiniti Q45 With This Alternator Because One of the Diodes Used in the Alternator May Have Been Damaged When Built. This Can Eventually Result in Failure of the Diode and an Electrical Short Which Could Melt the Plastic Housing. The Recall Notice Goes on to Say That a Fire Could Result If the Combustible Gas Emitted By the Melting Plastic Does Not Disperse (Properly). |
AHI0042 | ARROWHEAD |
13712 | LESTER |
204-318 | PIC |
334-1273 | AC DELCO |
13712 | BBB |
11111 | BBB (OLD) |
13712 | BBB NEW |
N13712 | BBB NEW |
186-0904 | BECK ARNLEY |
112981 | CARGO |
210-3104 | DENSO FIRST TIME FIT |
A-8572 | DIXIE |
13712N | EMS |
10461 | EXCEL |
LR1110-707 | HITACHI |
LR1110-707E | HITACHI |
400-44038 | J & N |
LRA02870 | LUCAS ELECTRICAL EUROPE |
47-1597 | MINNPAR |
13712 | MPA |
13-9146 | NAPA |
1N-9146 | NAPA POWER NEW |
213-9146 | NAPA POWER PREMIUM PLUS |
13-9146 | NAPA POWER SUPREME |
23100-6P000 | NISSAN |
23100-6P005 | NISSAN |
ALT-3211 | NSA |
A1839 | USA INDUSTRIES |
1-2192-01HI | WAI |
90-25-1130 | WILSON |
90-25-1130 | WILSON NEW |
90-25-1130N | WILSON NEW |
12007 | WORLDWIDE |
INFINITI | Auto and Light Truck | Q45 | 1997 | 4.1L |
BRG0054 | 35-2710E | BEARING - ROLLER |
BRG0107 | 35-2710AE | BEARING - ROLLER |
BRG0024 | B1120905533 | BEARING - ROLLER |
AHI1319 | | BRUSH HOLDER - ALTERNATOR |
| | COVER - MISC. ALT. |
AHI1406 | | DIODE - NEGATIVE |
AHI1407 | | DIODE - POSITIVE |
AHI1604 | | INSULATOR - ALT. B+ STUD |
| | INSULATOR - ALT. B+ STUD |
| | PLUG CODE |
AHI1248 | | RECTIFIER |
AHI6039 | | REGULATOR |
| | REGULATOR INSERT |
AHI3014 | | ROTOR |
AHI3502 | | SLIP RING |
AHI4014 | | STATOR |
SSP0202 | | TEST LEAD |
