Home Generator Products Air Source Ozone Water Disinfection Systems for Swimming Pool

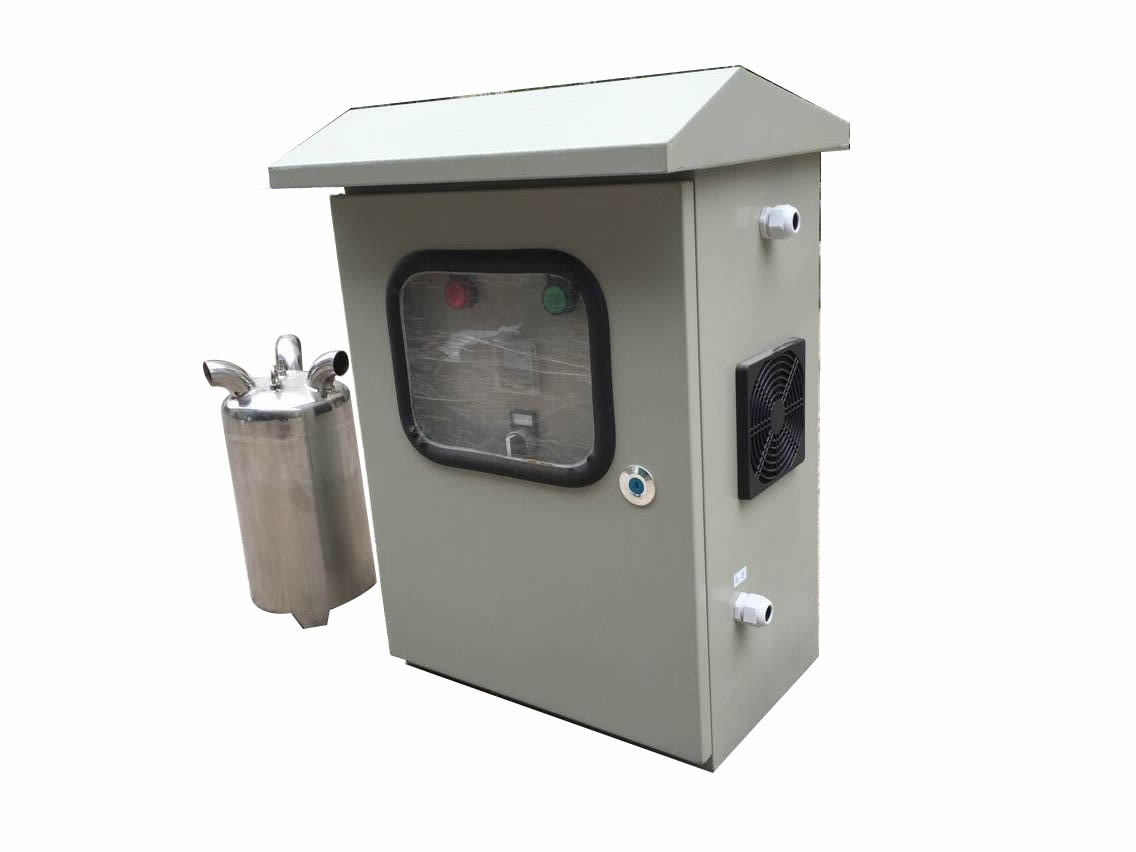

Air Source Ozone Water Disinfection Systems for Swimming Pool

Air Source Ozone Water Disinfection Systems for Swimming Pool
Price: US $ 700-800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Ozone Water Disinfection Systems

For nearly a century, ozone has been used to disinfect water for a variety of applications and industries starting in Europe and now across the globe.  Ozone or O3 is comprised of three oxygen atoms bound together.  When one atom has the weakest hold to the others, that atom can transfer electrons which bind with organic substances like bacteria and viruses.  When these electrons bind, it causes oxidation which changes the makeup of the substance and can kill or stop the reproduction of harmful bacteria or micro-organisms.  The ozone gas produced and used in the disinfection system provides an exceptional method for disinfecting water streams.
All Water Systems offers a wide range of ozone water disinfection systems to provide ample quantities of high purity water for your manufacturing and application needs.  With over 30 years of experience in a variety of industries and markets and our commitment to quality service, we will take the time to understand your needs before we provide a solution.
In addition to our line of ozone generators and ozone water disinfection systems, we also offer complete service and supplies for most every model and manufacturer.



Water-tank self-cleaning ozone water disinfector

Operating Principle
First, place the circulation tank of self-cleaning sterilizer to the lower middle part of the water tank so as to guarantee the even circulation of the tank water. When the water level reaches the designed top limit, the electric control cabinet starts up the high-voltage power and the strongly-oxidized gas generated by the immersible pump flows through the pipeline to the aeration section to aerate-disinfect the water, and at the same time, the immersible pump sends the disinfected water back into the water tank to circulate the stagnant water. Thus water circulation continues until thorough disinfection is completed and the water quality is guaranteed. Before delivered off the factory, the time for this product has been setted,no need resetting for the user.

Categorization of Products
1. Water-tank ozone self-cleaning disinfector
2. Water-tank micro-electrolysis self-cleaning disinfector

Working principle for the water-tank micro-electrolysis self-cleaning disinfector:
The water-tank self-cleaning disinfector starts up electro-chemical reaction to excite the chlorine ions dissolved into the water to generate the following oxidized substances: HCLO, CLO2, O3, O and Cl2, etc. The above oxidized matters will then be diffused and circulated so as to dispose the water tank, all the water inside and the water tank walls, damage the bacteria and alga microbiological cells and ultimately achieve the goal of disinfection and killing algae.
Specifications for (external) water-tank micro-electrolysis self-cleaning disinfector

Specifications for (embedded) water-tank ozone self-cleaning disinfector


Model
Volume adaptable for water tanks (pools)

Power (W)
Used for disinfection of secondary water supply (m³)Used for first water
tanks (m³)
WTS-1010-3010-50280
WTS-2030-6050-80350
WTS-3060-15080-200480


Applications
The water-tank self-cleaning disinfector has been widely used in such water storage areas as high level cisterns, water storage tanks, living water tanks, clean water pool of sewage treatment works, fire water tanks, fountain springs, waterscape cistern, swimming pools and the water storage pools for such industries as aquatic products, aquaculture, oceanic world and food and beverage.



Prod Model: WTS-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ozone Tube: Stainless Steel Housing and Rubber Tube
Submerged Pump: Ss,Plastic
Ozone Output: 5g-100g/Hour
Control Panel: Ss,Carbon Steel
Installation: Submerged Into Water
Type: Ozone
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
