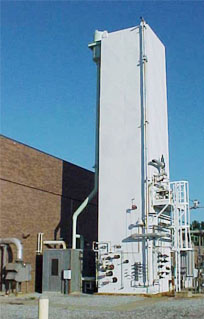

Main equipment of Air Separation Plant-Oxygen Gas Plant- Nitrogen Generator:
1. Air compressor
2. Air tank
3. Precision filter
4. Air pre-cooling system 5. Water separator
6. Molecular sieve purification system
7. Heater or molecular sieve purification system
8. Rectification column
9. Heater or the rectification column
10. Gas bearing turbo-expander
11. Liquid Oxygen Pump
12. Filling device
13. Electrical & instrument control system
14. Liquid storage tanks
15. Gas cylinders, etc
Main Features of Air Separation Plant-Oxygen Gas Plant- Nitrogen Generator:
* This development and design of flow is new, my company use the technology to mature.
* Simple operation, convenient maintenance, starting time is short, unit power consumption is low.
* Oxygen of high purity and very stable, meet and exceed technical indicators of GB8982-1998< < Medical oxygen> >
* Use of air cooling equipment, do not need cooling water, adaptable, saving the cost.
*Security: The outside compression process is oxygen be compressed at room temperature, The inside compression process is liquid oxygen be compressed at low temperature, Security than more with the inside compression process; Extraction a lot of liquid oxygen from evaporation-condenser, To ensure that no accumulation of hydrocarbons; Evaporation of high pressure with liquid oxygen, reducing the possibility of hydrocarbon accumulation; Reducing fire hazards.
* Reliability: Liquid oxygen pump excellent performance, easy to maintain; Booster compressor is one or two compression, oxygen compressor Booster compressor is three or five compression, High reliability with booster compressor.
|
Products |
Capacity (m³ /hr) |
Purity (% ) |
Pressure (Mpa) |
|
Oxygen |
50-2000 |
99.6-99.8 |
0.25-22 |
|
Liquid Oxygen |
Right amount |
99.6-99.8 |
0.25 |
|
Nitrogen |
50-3000 |
99.99-99.999 |
0.5-22 |
|
Liquid Nitrogen |
Right amount |
99.99-99.999 |
0.5-1.1 |
Hangzhou Union Industrial Gas-equipment Co., Ltd. Are a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products.
The products of the company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries(Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania). The main products are: the medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants and PSA (VPSA) oxygen (nitrogen) plants.
In addition to provide high-quality products, our company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
