HL-WG-SMT Nitrogen Equipment
Principles
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2. When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

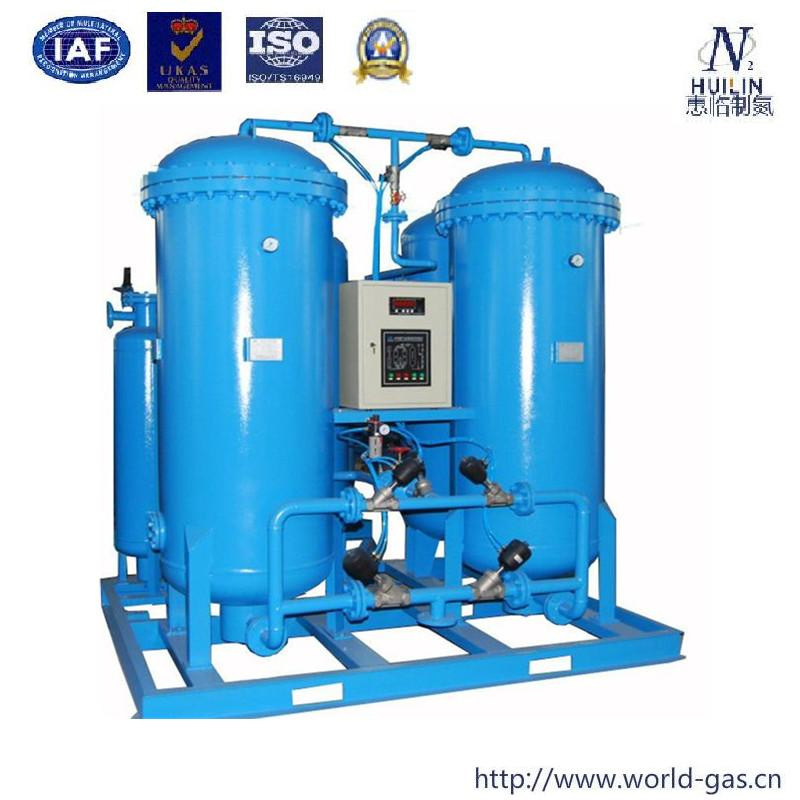

The main part of N2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal . When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output N2 continuously.
Specifications
N2 Purity99.99~99.9995%
N2 Capacity20~1000 Nm3/h
N2 Pressure0.1~0.6MPa
Dew Point:d-45
Features
HUILIN SMT Nitrogen Machine has 5 strongpoints in PSA nitorgen machine field,manufacturing energy-saving nitrogen machine.
1.The purity of N2 could be regulated between 95% to 99.99% according as users need;
2. Dryness and low dew point of N2 ;
3. Low cost, high return, investment recover soon;
4. Compact appearance, small area,high purity for satisfying the high requirements of the many kinds of industry;
5. Mature technology, high-quality accessories, durable product
SMT nitrogen generator other usage
. Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others
Model type | N2 Flow(Nm3/h) | Purity(%) | Pressure(Mpa) | Dew Point |
| WG-SMT-30 | 30 |
≥99.99%
|
Input Pressure
-0.2
|
≤-40
|
| WG-SMT-60 | 60 |
| WG-SMT-120 | 120 |
| WG-SMT-180 | 180 |
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
