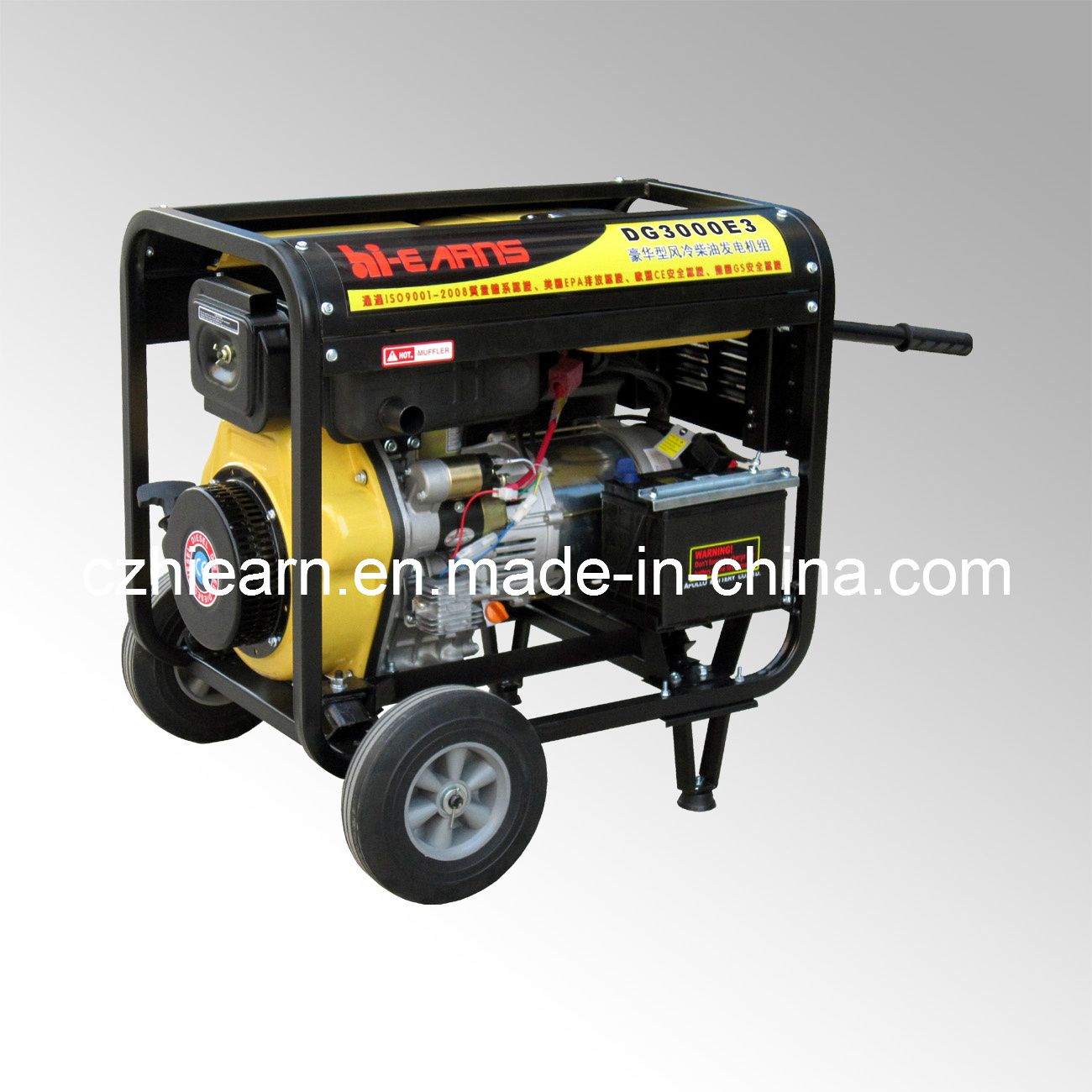

2.8KW portable diesel generator set
DG3000E model: With 6 HP HR178F diesel engine and 100% copper alternator ensure a 2.8KW rated output, and 3KW max. Output!
1. We are manufactory, could give best suggestions to customers also learn good idea from every good customer!
2. Professional general engineers and technical team.
3. Have spare parts for customers' exchange. Several type spare parts are made by ourself, it should be more competitive!
4. Warranty: Running 500 hours or one year. Can support free spare parts for reparing during warrenty time and also low than market price spare parts out of warrenty time!
5.100% copper good brand alternator, every spare parts suppliers are choosed extremely stricted, to control the quality well.
6. From engine to whole genset, we test every link of every product, have test machinery and test center.
7. Many spare parts are produced by ourselves, could save cost for customers greatly.
8. We welcome every customer visiting our factory and test our products.
We are professional generator manufacture, I think we must have one type even more can match what you need!
Professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
|
|
model |
DG3000 |
|
Frequency(HZ) |
50 |
60 |
|
Max.Output (kw) |
3 |
3.3 |
|
Rated output (kw) |
2.8 |
3 |
|
Rated.AC voltage(V) |
120,220,230,120/240 |
|
Power factor(cosΦ) |
cosΦ=1 |
|
DC output(V) |
12V/8.3A |
|
Phase |
Single phase or Three phase |
|
Alternator type |
Self-excited, 2-pole, single phase alternator |
|
Starting system |
Electric |
|
Operating noise level(at 7m) |
80-85 |
|
Fuel tank capacity(L) |
12.5 |
|
Continues work(hr) |
9.7 |
9 |
|
engine |
Model |
HR178F |
|
Engine type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Bore*stroke(mm) |
78x62 |
|
Fuel |
0# or -10#light diesel oil |
|
Lubricatiom oil volume (l) |
1.1 |
|
Combustion system |
Direct lnjection |
|
standard features |
Voltmeter |
yes |
|
AC Output Socket |
2 |
|
AC circuit breaker |
yes |
|
Oil warning light |
yes |
|
Oil alert |
yes |
|
optional features |
DC circuit breaker |
Optional |
|
Calculagraph |
Optional |
|
Big Wheel |
Optional |
|
Three phase voltage |
Optional |
|
Current meter |
Optional |
|
ATS |
Optional |
|
Remote control |
Optional |
|
Welding |
no |
|
dimensions |
Dimension(L*W*H)(mm) |
700x480x590 |
|
Net weight(kgs) |
64 |
|
20FT |
130 |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
