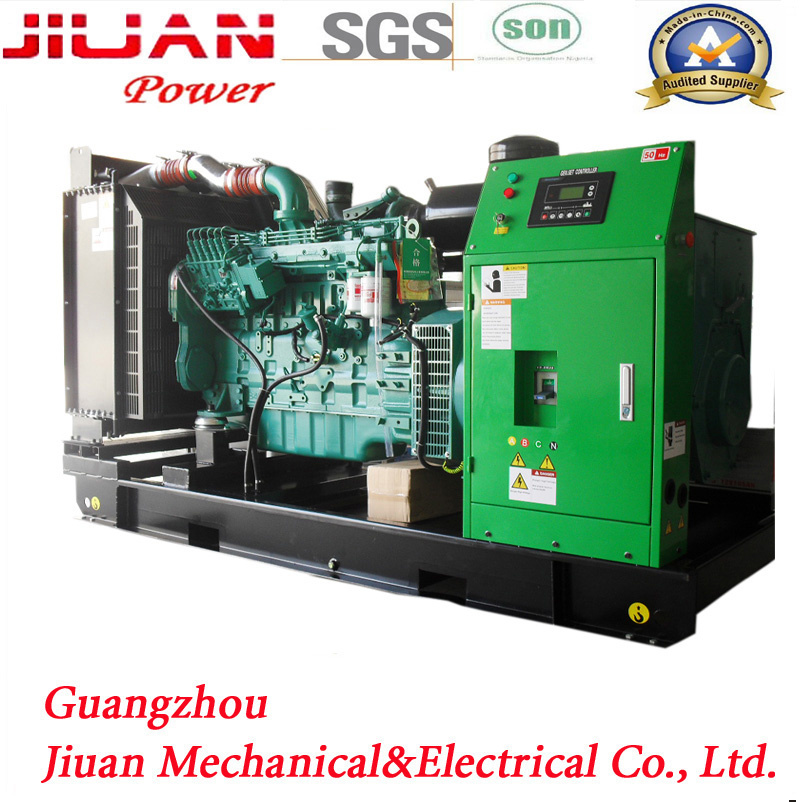

Air Cooled Diesel Silent Generator 200kVA

Air Cooled Diesel Silent Generator 200kVA
Price: US $ 600-50000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Professional generator OEM Factory in Guangzhou
Stock available
Cummins, Yangdong
SGS soncap
50hz@1500rpm or 60HZ@1800rpm all are available
· AVR delivers non fluctuating power
· Panel type digital control panel
· 12 Volt / 24 Volt electric starter ensures easy starting
· Low oil pressure shut down system
· Low fuel cut out protection
· Low water cut out engine protection
· Enclosed structure ensures quieter operation
· Alternator (Dynamo) excitation mode brushless self excitation
· Three-phase output meets differing requirements
· Four Cylinder, four stroke, water cooled diesel engine
· 8 hours running @ full load on a single tank of fuel
· Dual access doors for easy maintenance
· Optional automatic or manual transfer switches available
· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
· Noise Level (65-70dBA @ 7m)
· All ratings are at sea level
                      200kva Silent generator
Generator
Specifications
Generator ModelCDC160W/200KVA
Generator Prime Power150KW/187.5KVA
GeneratorStandby Power160KW/200KVA
Generator AlternatorStamford;Marathon;
Canopy for ChoiceSilent, super silent
ControllerSmartgen
Dimensions (L*W*H)2800*1200*1800(S)
3600*1400*2000(Super Silent)
20FT/40HQFT Container2PCS/4PCS
Generator Warranty1800 hours or 1 year subject to the earlier one.
Generator MOQ1PCS
CertificateSGS;Cummins Authorized Factory;TUV;Soncap
PaymentT/T or Cash
       Please give detail needs in your inquiry, so that we can make power solutions for you.

Powered by Cummins Engine
Prime Power (50HZ)150KW/187.5KVA
Standby Power (50HZ)160KW/200KVA
Power Factor0.8 (Lagging)
Phase Wires3-phases 4-Wires
Start ModelElectric
ProtectionLow oil-pressure, High water temperature,
Over-speed, Over-current
Engine ModelDCEC Cummins 6CTA8.3-G2 4 Cycle
Cylinders6
Cylinder ArrangementL
Bore x Stroke(mm)114X 135
Compression Ratio16.5:1
Speed1500rpm
Cooling MethodWater – cooled
Starting Method24V DC electrical start
Full Load Diesel Consumption (L/H)38
Engine Displacement (L)8.3
Inspiration  (L)Turbocharged Intercooler
Lube Volume  (L)24.3
Coolant Volume  (L)28
Noise (Db)≤ 95
Alternator ModelNewage Stamford UCI274H or Leadtech LTG274HA
Alternator Power160KW/200KVA Brushles with AVR
Voltage380/220V,400/230V,415/240V,220/127V
ProtectionIP23
Voltage Regulation±4%
Insulation ClassH
Voltage ControlAVR
Net Weigh (KGS)2150
Dimensions (L x W x H) mm2800*1200*1800 (S)
3600*1400*2000(Super Silent)
40FT Container  4 units (S)
ControllerSmartgen 6110 or Deepsea 7320
StandardMuffler * 2PCS


Battery 80A * 2 PCS
OptionalATS (auto transfer switch)


AMF(auto mains failure)

Prod Model: CDC200KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator: 200kVA Silent Generator
Generator Engine: 6CTA8.3-G2
Alternator Model: Stamford
Generator Controller Brand: Smartgen
Generator Controller System: Auto Start, Auto Stop
Generator Cylinders: 6
Generator Noise: Low Noise
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.

Our Diesel Generator Set Production Range is as follows:

* Engine (motor) for Choice

1. Cummins (USA ) 20kVA - 1500kVA

2. Perkins (UK) 8kVA-1000kVA

3. Deutz (Germany) 20kVA - 150kVA

4. ISUZU (Japanese) 20kVA - 40kVA

5. Kubota (Japanese) 7kVA-50kVA

6. Lovol (China) 20kVA - 150kVA

7. Yangdong (China) 8kVA - 40kVA

8. Weichai (China) 8kVA - 150kVA

9. Shanghai Engine

10. Yuchai Engine

* Canopy for Choice

1. Silent type (75- 80 dB(A) at 7 meters)

2. Super Silent type (65-70 dB(A) at 7 meters )

3. Open type

4. Trailer type (mobile)

5. Container Type

6. Parallel System

* Alternator for Choice

1. Stamford

2. Leroy Somer

3. Marathon

* Controller

1. Smartgen

2. Deepsea (UK Brand and imported)
