1. CE approved, powered by advanced air-cooled diesel engine.
2. New automatic voltage regulator(AVR) ensures steady voltage output.
3. Low oil pressure alarm system, which can shut down the engine automatically.
4. Electric start system ensures rapid start of the set.
5. 3-phase output meets the diversified demands from customer.

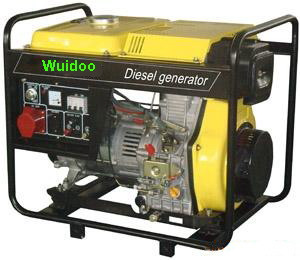

Model WD2500CL
Frequency (Hz) 50 60
Rated Output (kVA) 1.7 2.0
Maximum Output (kVA) 2.0 2.2
Rated Voltage (V) 115/230 120/240
Rated current (A) 14.8/7.4 16.7/8.3
Rated rotation speed (rpm) 3000 3600
Phase No. Single phase
Power Factor 1.0
Excitation Mode Self-excitation, 2 pole and constant voltage (AVR)
DC Output 12V. /8.3A, Terminal Post
Noise Level (7m) dB(A) 77
Engine Model WD170FE
Engine type Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm) 70 X 55
Displacement (L) 0.211
Rated Power KW 2.5/3000 2.8/3600
Fuel comsumption Rate(g. Kw/h) 280.2 288.3
Compression Ratio 20: 1
Lubrication System Pressure Splashed
Starting System Electric Start with 30Ah MF battery
Fuel Type 0#(summer)-10#(winter) diesel
Lube Oil Brand SAE10W30 (above CD Grade)
Lube Capacity (L) 0.75
Fuel Tank Capacity (L) 12.5
Continuous Running Time (hr) 20
Overall Dimension: LxWxH (mm) 660 X 500 X 570
Dry Weight (Kg) 60
Quantity in 20FT 132 PCS
Optiomal Features: Remote, ATS(Auto Transfer Switch), Digital Panel
We reserve the right to change specifications without notice
Wuidoo Power. Is specializing in the researching and manufacturing of diesel generator with high quality and excellent service. Our generator power ranges from 2KW to 2000KW with various types, such as the silent type, containerized type, trailer type, intelligent type and so on. Our core team includes professional expertise and outstanding managers. We have leading design ability and rich practical experience in the internal combustion engine area and power electronics technique. We have built a high reputation among the global diesel generator business by our convincing quality and excellent service.
Changzhou Wuidoo Power Machinery Co., Ltd., is located in Changzhou Wujin Lijia Industrial Park with convenient transportation, good environment and superior facility. We have a modern production base for diesel generator manufacturing. Our annual output capability is 5000 units. Our perfect products roots in the scientific management, advanced manufacturing technology and our persistent high awareness of the quality.
Wuidoo pays special attention to products' quality. We take "the quality zero flaw" as the quality policy. We have established the quality management system and strictly comes them into effect according to the standard of ISO9001 and TS16949. We control strictly in every process of diesel generator production. We do test for all generators we produced. Our testing item includes two parts: Steady-state test and instantaneous test. So we do the test of generator's power, current, insulation as well as the shutdown and suddenly applied load. We do all these tests in order to make sure that what we produce are excellent and reliable products.
Wuidoo has cooperation with many world famous generator-made companies, such as Volvo Penta; CUMMINS; DEUTZ; LOVOL and so on. We also established cooperation with domestic famous companies, like Weichai. Through all of these, we can not only get improvement but also set a higher goal to fulfill in the future.
Highly engaged and experienced engineers make Wuidoo's highly standard service possiblly happen. Our engineers take customers' satisfaction as their work policy. They make perfect solving plans in the basis of customers' requirement with reasonable analysis. We spare our full efforts to get the satisfaction of customers' expectation and requirement and looking forward to establishing a bright future with everyone.
