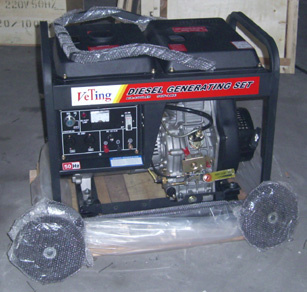

Air cooled, open frame, Diesel Generator
Characteristics:
Brushless Alternator with capacitor regulating or optional alternator with brush and automatic voltage regulator (AVR)
Air circuit breaker
12 volt D. C. Auxiliary charging (car/boat battering)
Optional electric starting with low oil shut down device
Localized socket(s)
We have three different models, which is VTD2500LH(E), VTD3500LH(E), VTD6000LH(E). The following is the specifications for VTD3500LH(E). If you need to more details, please refer to our website.
Specifications:
MODEL VTD3500LH(E)
Alternator type: Self-excitation, 2-pole, single phase, synchronous
Frequency (Hz): 50/60
Max. Output (KVA) 3.2/3.5
Rated. Output (KVA) 2.8/3.3
Voltage (V) 110-120, 220-240
DC output 12V/8.3A
Power factor 1
Engine model VD178F(E)
Engine Type Air-cooled, 4-stroke diesel
Displacement (cc) 296
Engine speed (rpm) 3000/3600
Engine starting system Recoil or eletric (optional)
Lube oil capacity (L) 1.1
Fuel tank capacity (L) 13.5
Dimension (L*W*H)(mm) 670*500*580
Net Weight (kg) LHE: 82 LH: 77
Shanghai Veting Power Co., Ltd. specialized in manufacturing diesel/gasoline engines, diesel/gasoline generators, diesel/gasoline generators & welder, pumps, lawn mowers and such kinds of engine products. All products exported are manufactured by ourselves.
We have passed certificates of ISO9001: 2000 quality management system. 'Safe, durable, stable and green' is our manufacturing principles. Our products have been certificated by EPA, EC, CE and CSA. The requirements of PLT are strictly followed to control consistency of production and quality of products. Our products have been widely exported to North America, Europe and other oversea markets.
We insist on 'human resource to be based on, excellent quality to compete, R&D to succeed, creation to expand' as our developing principles, and are striving to be a leader of the competitive market.
We are sincere and eager to cooperate with friends all over the world for a more brilliant future!
Superior products, superior quality, superior service, superior price'.
