Affordable Price Best Quality 100kVA/80kw Electric Generator (6BT5.9-G2) (GDC100*S)Specifications
1) Power range: 100kVA /80kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
| Genset Model Cummins genset electric diesel generator set | GDC100*S |
| SET | Rated power(Kw/kva) | 80/100 |
| Frequency(Hz) | 50 |
| Pahse | 3 |
| Voltage(V) | 230/400 |
| Current(A) | 147 |
| Fuel capacity(L) | 280 |
Fuel consumption(L/Hour)
| 23 |
| Dimension (mm) | L | 3000 |
| W | 1050 |
| H | 1750 |
| Weight(kg) | 1710 |
| Noice level for silent type (Db/7m) | 66 |
| ENGINE | Model | 6BT5.9-G2 |
| Prime power(kw/kva) | 92.3/102 |
| Cylinders | 6 |
| Bore× stroke(mm) | 100*127 |
| Intake Method | Turbocharging intake |
| Displacement(L) | 5.99 |
| Speed governing | Mechanical governor |
| Cooling starting method | Water cooling |
| ALTERNATOR | Model | JDG274C |
| Rated power(kw/kva) | 80/100 |
| Insulation class | H |
| Alternator enclosure | IP23 |

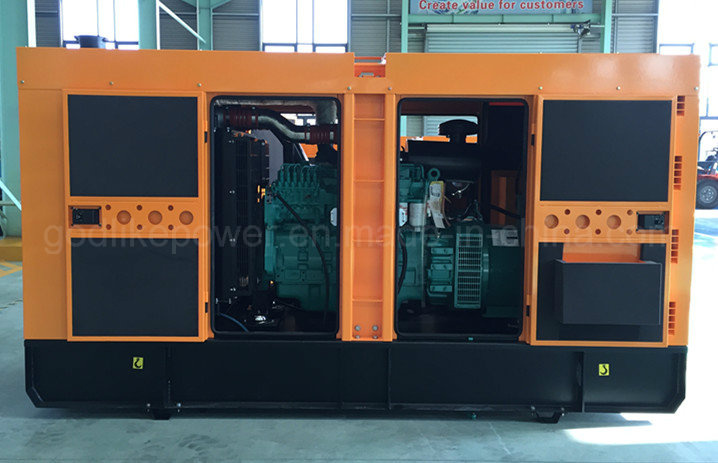

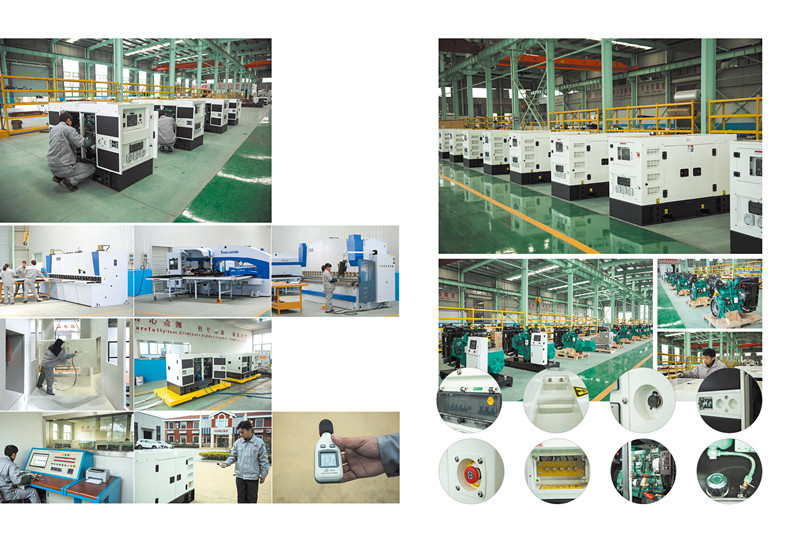

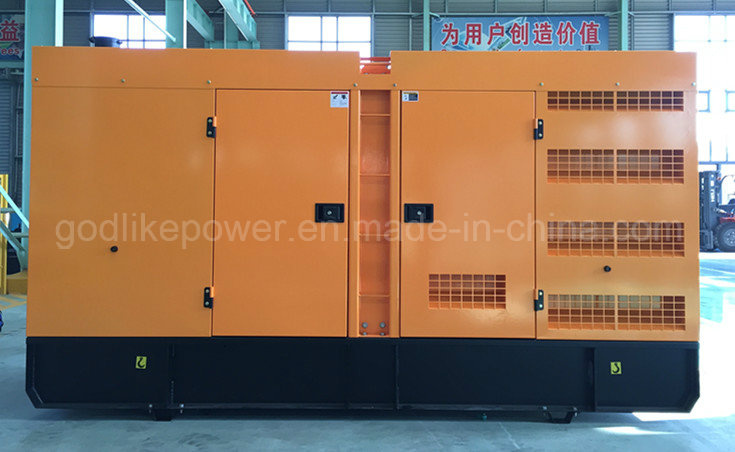

Generator photos:
Contact: Ms Vicki Yuan
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
